Allanson Transformers 2744-668 Primary Voltage 240 V, Secondary Voltage 10000 V @ 250 V Ferromagnetic Ignition Transformer
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Allanson Transformers 2744-668 Primary Voltage 240 V, Secondary Vol...

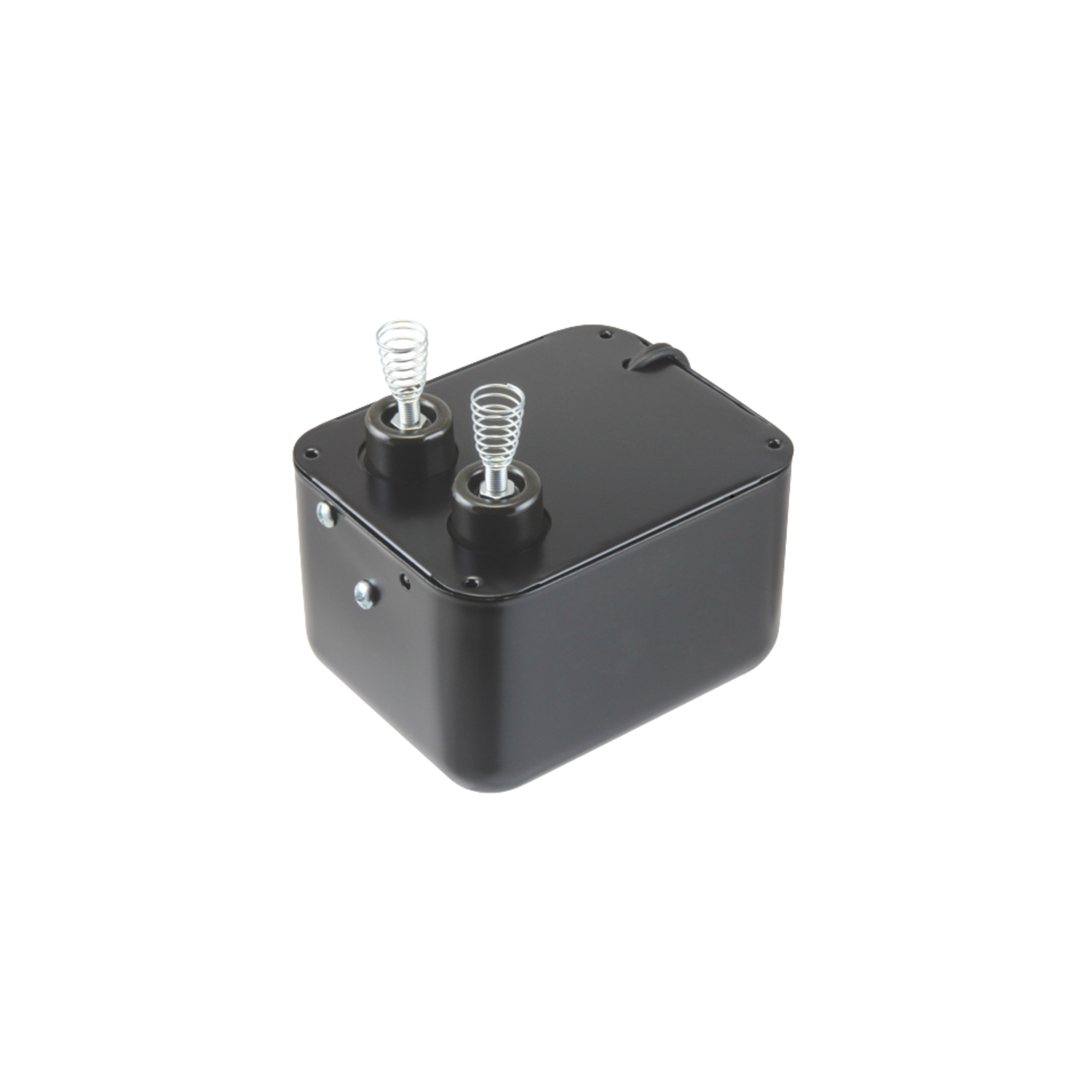

The Allanson Transformers 2744-668 is a ferromagnetic, double-pole ignition transformer designed for constant-duty oil burner applications, specifically for Wayne oil burners. It provides a reliable spark for ignition in commercial, residential, and industrial oil applications.
Features:
Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power
Specifications:
Manufacturer: Allanson Transformers
Manufacturer Part Number: 2744-668
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 240 V
Secondary Voltage: 10000 V @ 250 V
Frequency Rating: 60 Hz
Current Rating: 23 mA
Poles: Double
Ground: Mid Point Ground
Hv Terminal: Large Spring Contact
Application: Oil burner ignition, specifically for Wayne oil burners
Weight: 7.48 lb.
