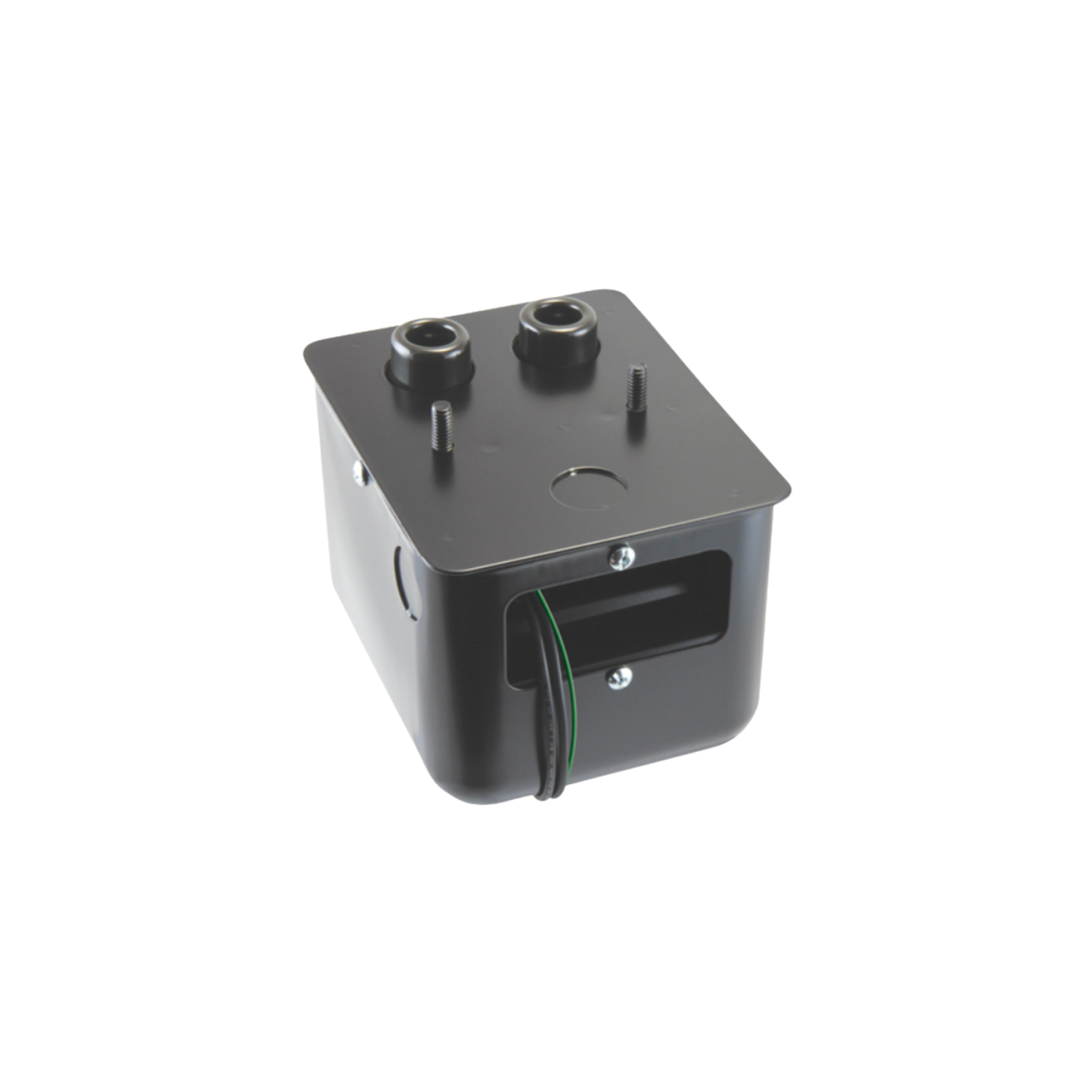

Allanson Transformers 421-655SFG Primary Voltage 120 V, Secondary Voltage 10000 @ 250 V Ferromagnetic Ignition Transformer

The Allanson 421-655-SF-G Ferromagnetic Ignition Transformer is a high-voltage, double-pole transformer designed specifically for Power Flame oil burners. It provides a reliable and robust ignition source for constant-duty commercial, residential, and industrial oil-burning applications.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 421-655SFG
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 120 V
Secondary Voltage: 10000 @ 250 V
Frequency Rating: 60 Hz
Current Rating: 23 mA
Pole: Double
Ground: Mid Point Ground
Hv Terminal: Rajah Connector
Application: Power Flame Oil Burners
Weight: 9.7 lb.
