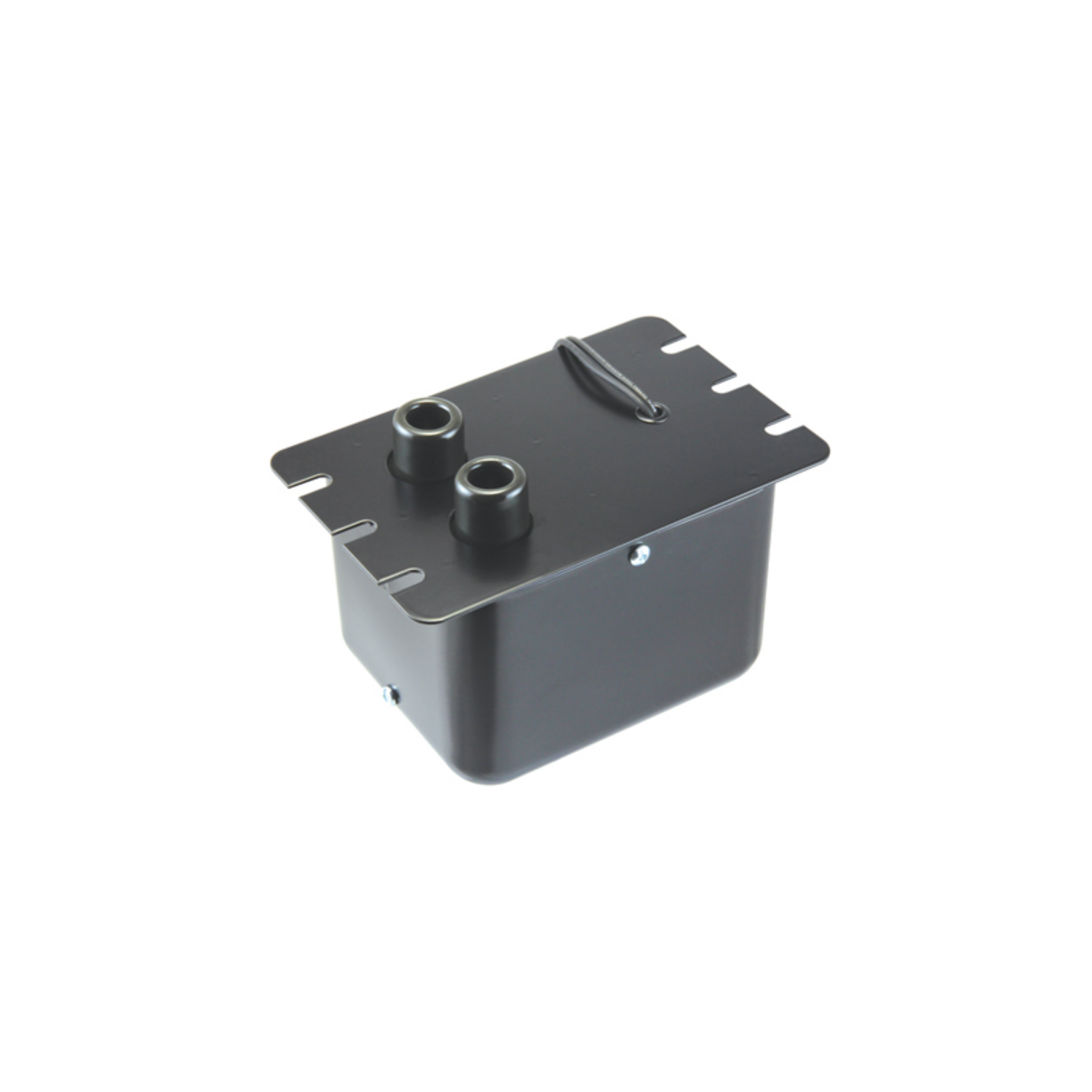

Allanson Transformers 421-661 Primary Voltage 120 V, Secondary Voltage 10000 V @ 250 V Ferromagnetic Ignition Transformer

The Allanson Transformers 421-661 is a ferromagnetic, double-pole ignition transformer specifically designed for Gordon-Piatt burners. It is intended for constant-duty commercial, residential, and industrial oil applications, providing a reliable ignition source. This transformer belongs to the Large Can Series of Allanson transformers.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 421-661
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 120 V
Secondary Voltage: 10000 V @ 250 V
Frequency Rating: 60 Hz
Current Rating: 23 mA
Poles: Double
Ground: Mid Point Ground
Hv Terminal: Rajah Connector
Application: Oil burner ignition, specifically for Gordon-Piatt burners
Weight: 10.16 lb.
