Allanson Transformers 542GP Primary Voltage 120 V, Secondary Voltage 10000 V @ 265 V Ignition Transformer
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Allanson Transformers 542GP Primary Voltage 120 V, Secondary Voltag...

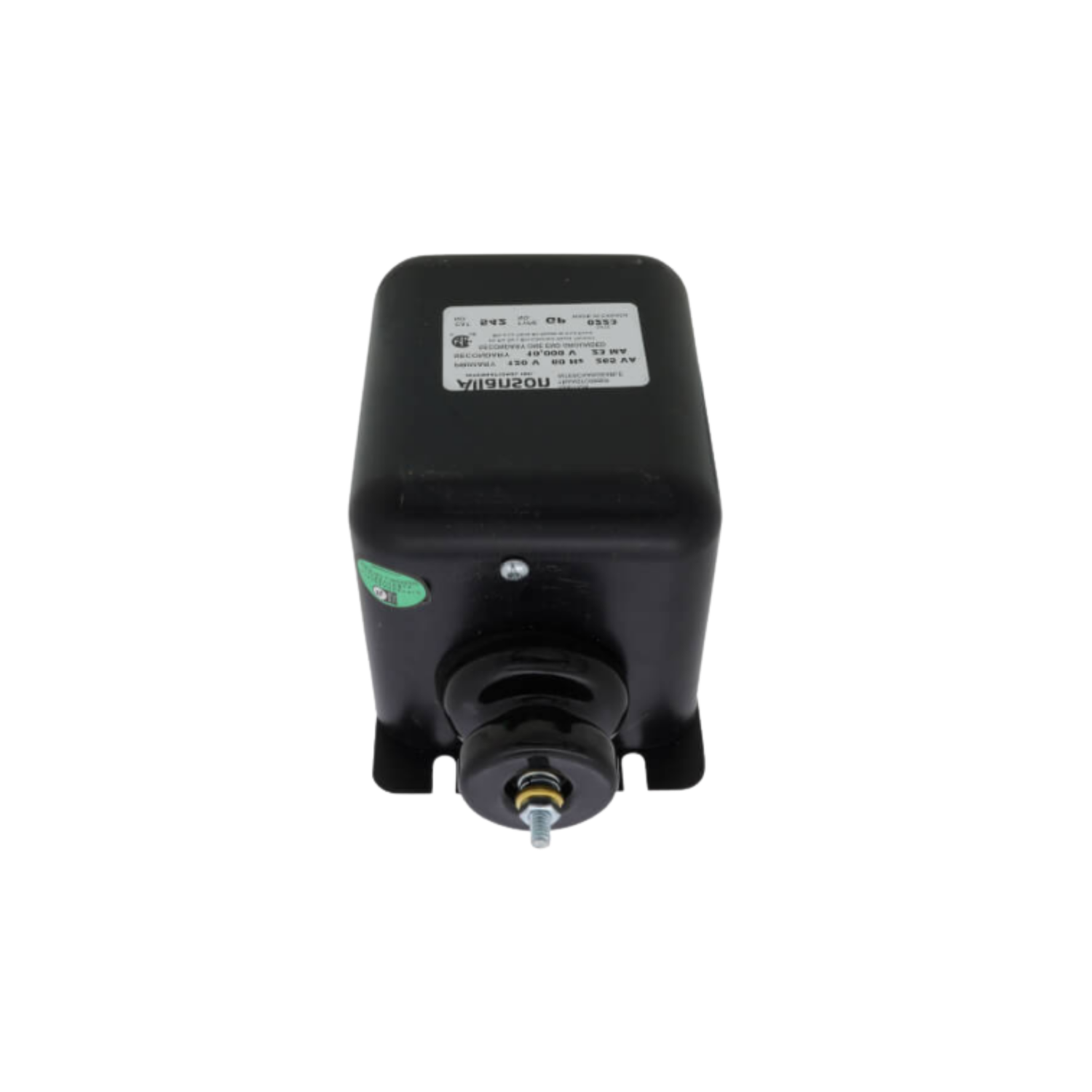

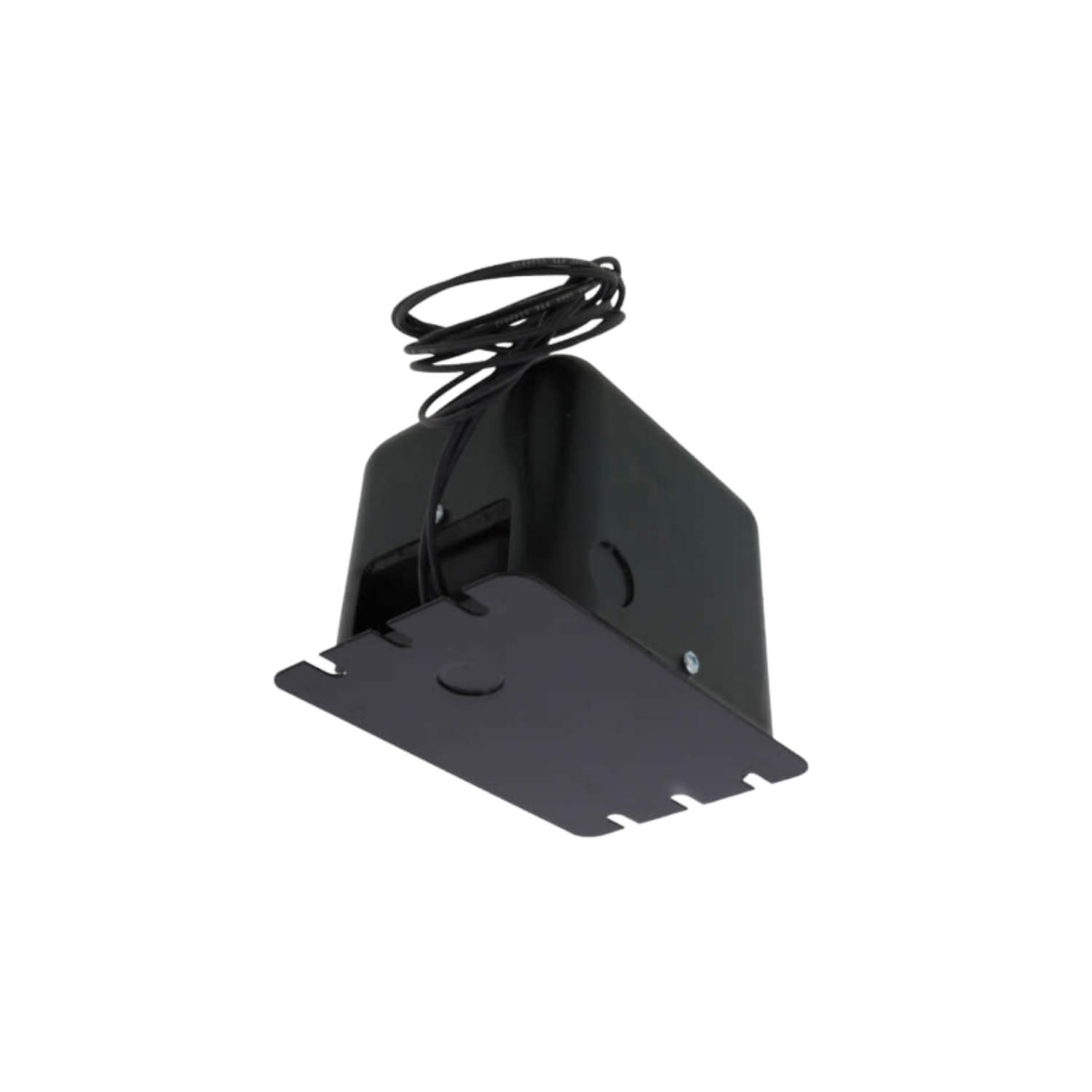

The Allanson 542-GP Ferromagnetic Ignition Transformer is a component specifically designed for constant-duty gas applications. Unlike the 1092 series, which is rated at 6000V, the 542-GP is designed for high-energy ignition and provides a secondary voltage of 10,000V. It is engineered to meet the specifications for Gordon Piatt burners.
Specifications:
Manufacturer: Allanson Transformers
Manufacturer Part Number: 542GP
Product Type: Ignition Transformer
Primary Voltage: 120 V
Secondary Voltage: 10000 V @ 265 V
Frequency Rating: 60 Hz
Current Rating: 23 mA
Application: Gordon Piatt Burners
Ground: One End Ground
Mounting: Internal Junction Box
Weight: 11.17 lb.
