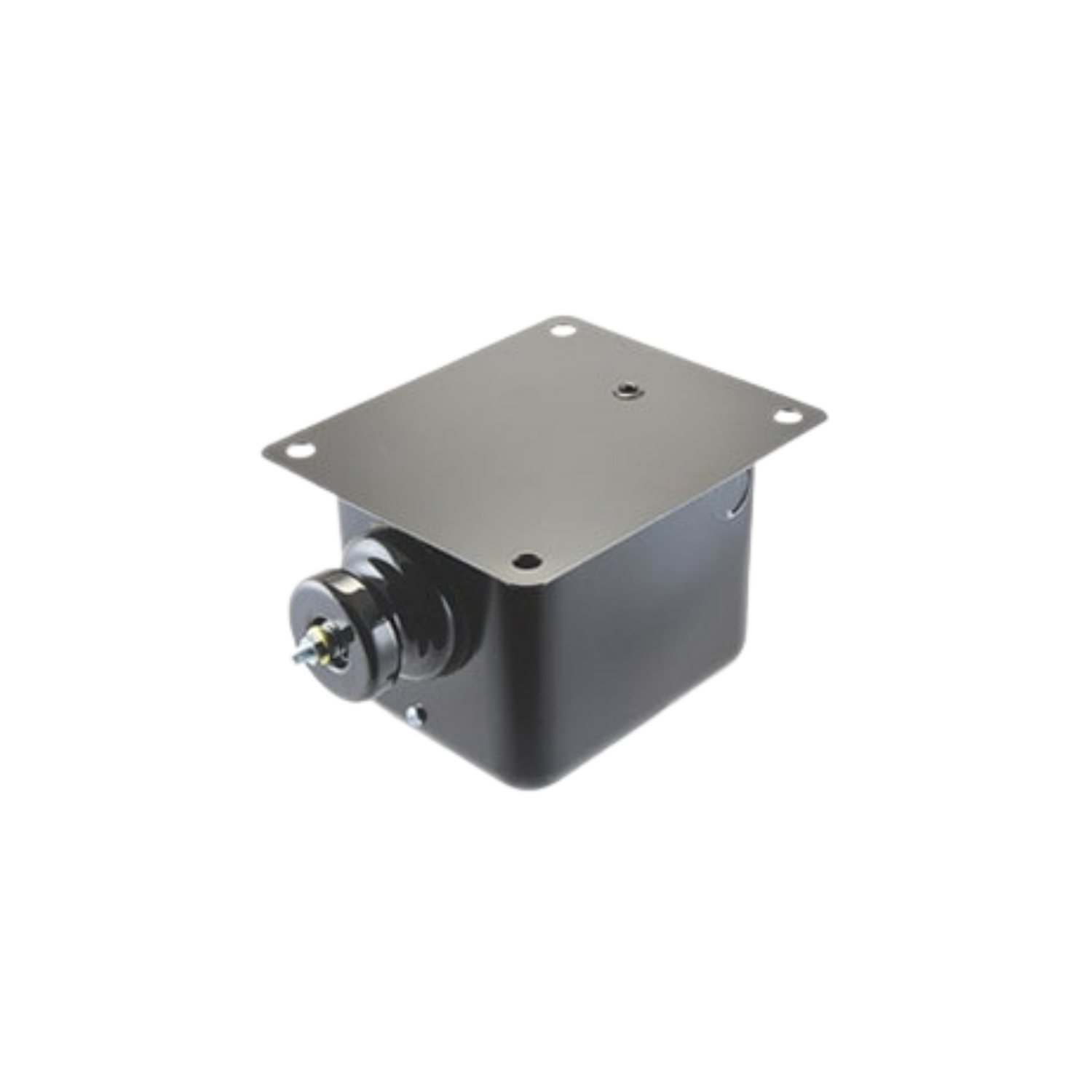

Allanson Transformers 542H Primary Voltage 120 V, Secondary Voltage: 10000 V Ferromagnetic Ignition Transformer

The Allanson Transformers 542H is a ferromagnetic, single-pole ignition transformer designed for constant-duty industrial gas applications, particularly for Cleaver Brooks burners. It provides a reliable and consistent ignition source for commercial and industrial heating systems.

Features:

Designed with high temperature wire
Runs cooler, quieter and safer on all types of burners.
Designed to burner manufacturer's specifications
Meets American and European noise emission standards offering superior EMI and RFI protection.
Single porcelain designs
Dependable Power

Specifications:

Manufacturer: Allanson Transformers
Manufacturer Part Number: 542H
Product Type: Ferromagnetic Ignition Transformer
Primary Voltage: 120 V
Secondary Voltage: 10000 V
Frequency Rating: 60 Hz
Current Rating: 23 mA
Poles: Single
Ground: One End Ground
Hv Terminal: 1/4-20 Stud
Application: Gas burner ignition, specifically for Cleaver Brooks burners
Weight: 11.15 lb.
