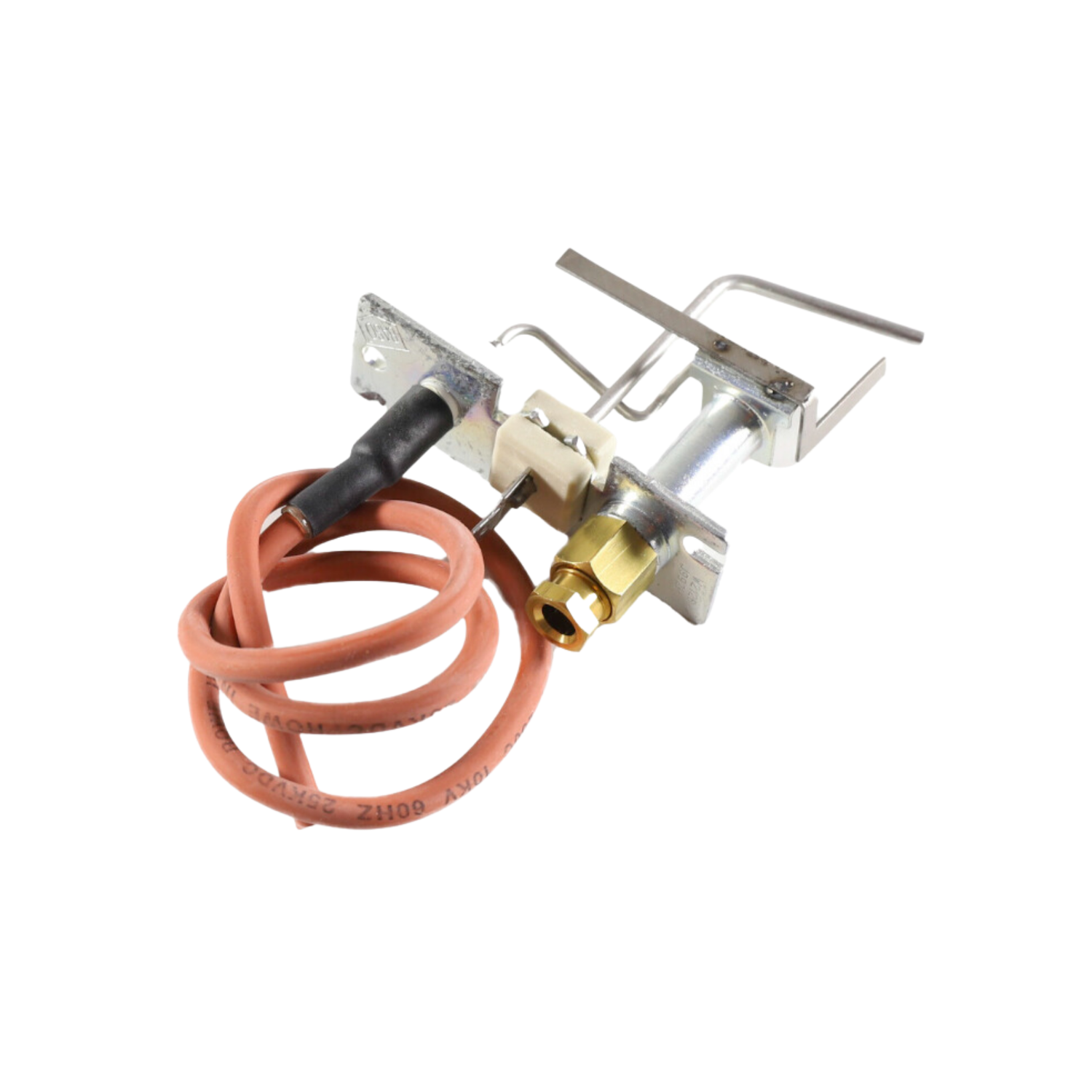

Baso J992HXW-7221 0.021" Orifice Size, Inlet Fitting NG, Pilot Burner with Intermittent Flat Plate

J Series Pilot Burners/Y90 Series Inlet Fittings are used with Intermittent Pilot Ignition (IPI) and Standing Pilot Ignition (SPI) systems. Various pilot burner configurations, inlets, and flame sensors are available.

Features:
Teflon Wire (on select models at this time) - Eliminates offgassing and has a high resistance to thermal degradation
Alumina Ceramic (on select models at this time) - Provides improved ceramic strength and increases overall durability of the pilot assembly
Compact Design and a Choice of Mounting Brackets - Permits installation in a variety of IPI and SPI applications
Choice of Tips for Flame Configurations - Maximizes main burner ignition performance
Unique Dual Orifice Hole Design - Provides for better flame stability over a wider pressure range
Factory-assembled Package- Provides pilot burner, inlet, and flame sensor for easy installation

Specifications:

Manufacturer: BASO
Manufacturer Part Number: J992HXW-7221
Product Type: Pilot Burner
Orifice Size: 0.021"
Dimensions: 3.05" x 4.35" x 2"
Weight: 0.28 lb
Includes:
Electrode 2.5 mm (0.10 in.) Gap with Leads
Bracket Style - Horizontal Flat Plate
Tip Style - Free Flame 180
