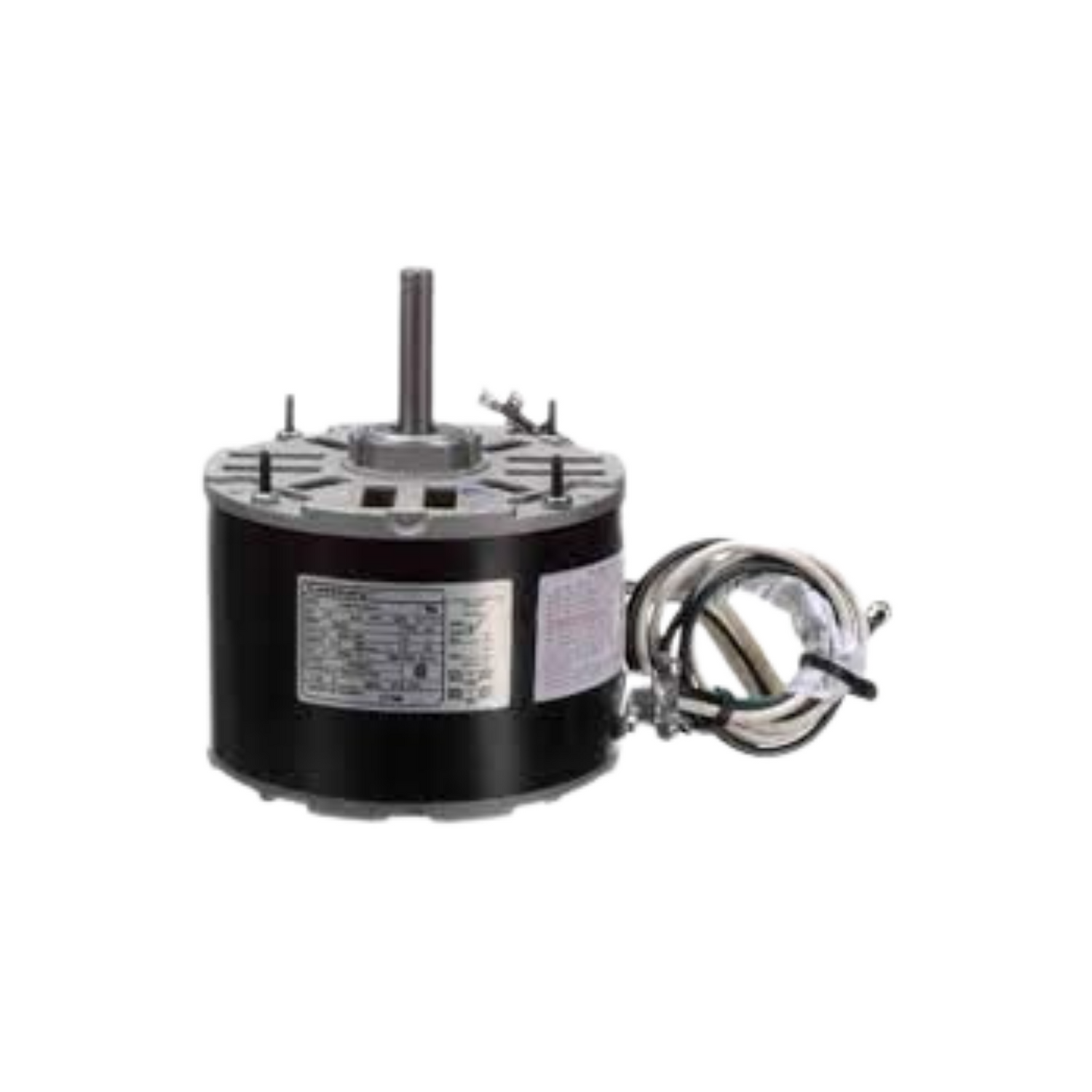

Century Motors 174A Replacement Motor, 1/6 HP, 1 PH, 60 HZ, 208-230...
Description
Description
Features:
OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 60°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2" Diameter Shaft with Flat
36" Leads
Extended Studs Shaft End, Resilient Ring Mounting
Specifications:
Manufacturer: Century Motors
Manufacturer Part Number: 174A
Phase: 1
Output HP: 1/6 Hp
Output KW: 0.13 kW
Voltage: 208-230 V
Speed: 1625 rpm
Service Factor :1
Frame: 48Y
Enclosure: Semi Enclosed
Thermal Protection: Automatic
Ambient Temperature: 60 °C
Frequency: 60 Hz
Current: 1.0 A
Duty: Air Over
Insulation Class: B
UL: Recognized
CSA: Y
CE: N
Number of Speeds: 1
Electrical Type: Permanent Split Capacitor
Starting Method: Across The Line
Poles: 4
Rotation: Reversible
Mounting: Extended Studs
Motor Orientation: Any
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: Flat
Overall Length: 7.07 in
Frame Length: 3.38 in
Shaft Diameter :0.500 in
Shaft Extension: 2.6 in
