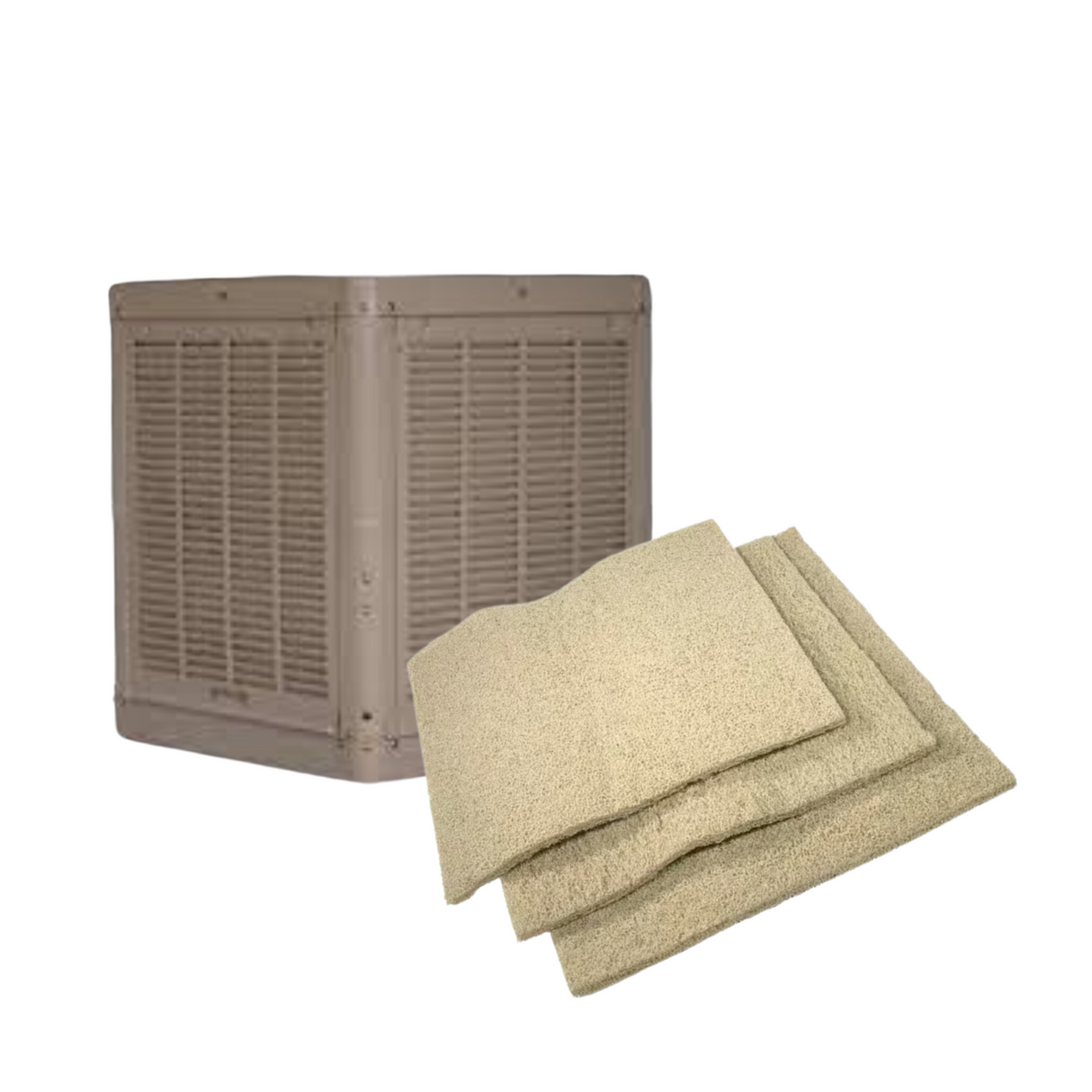

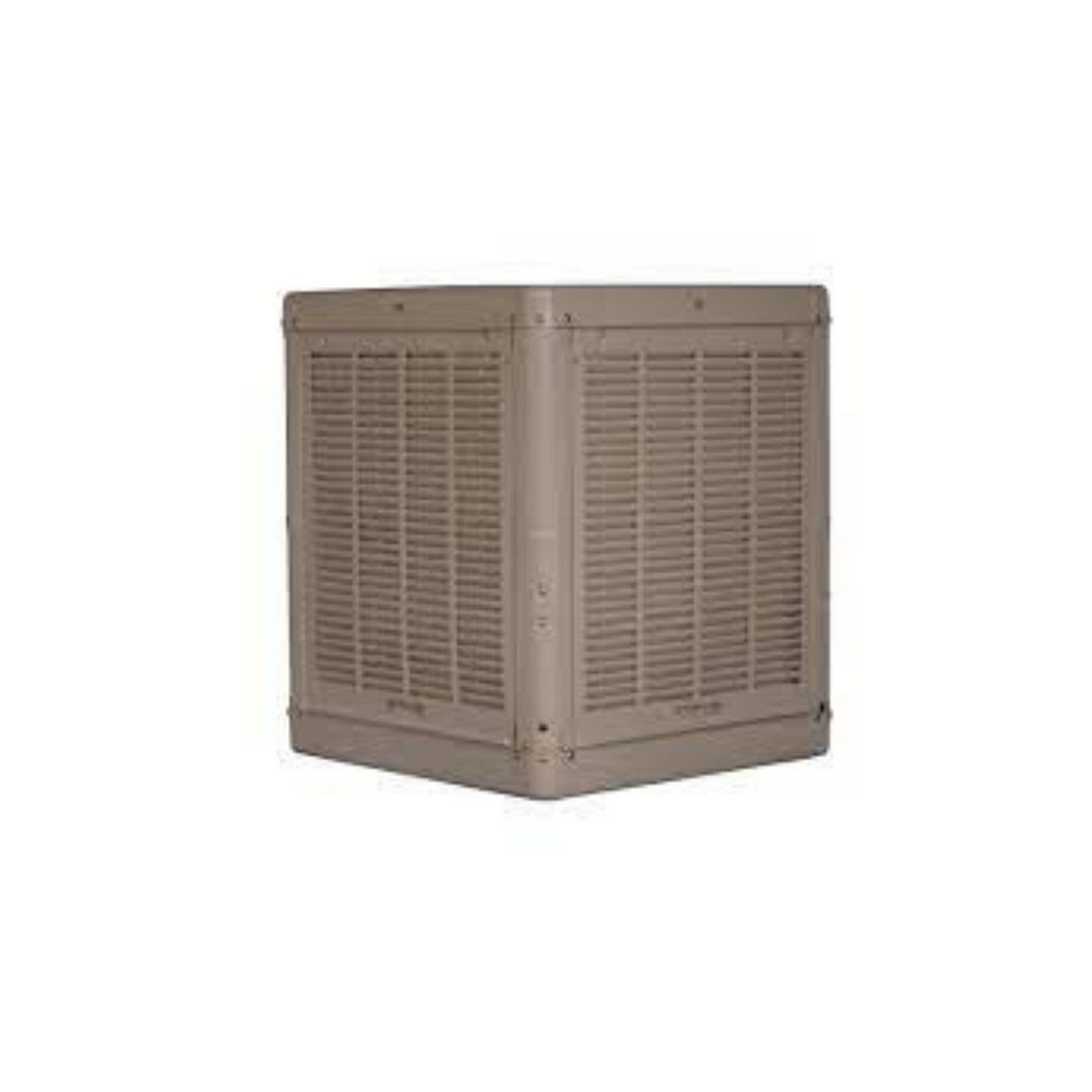

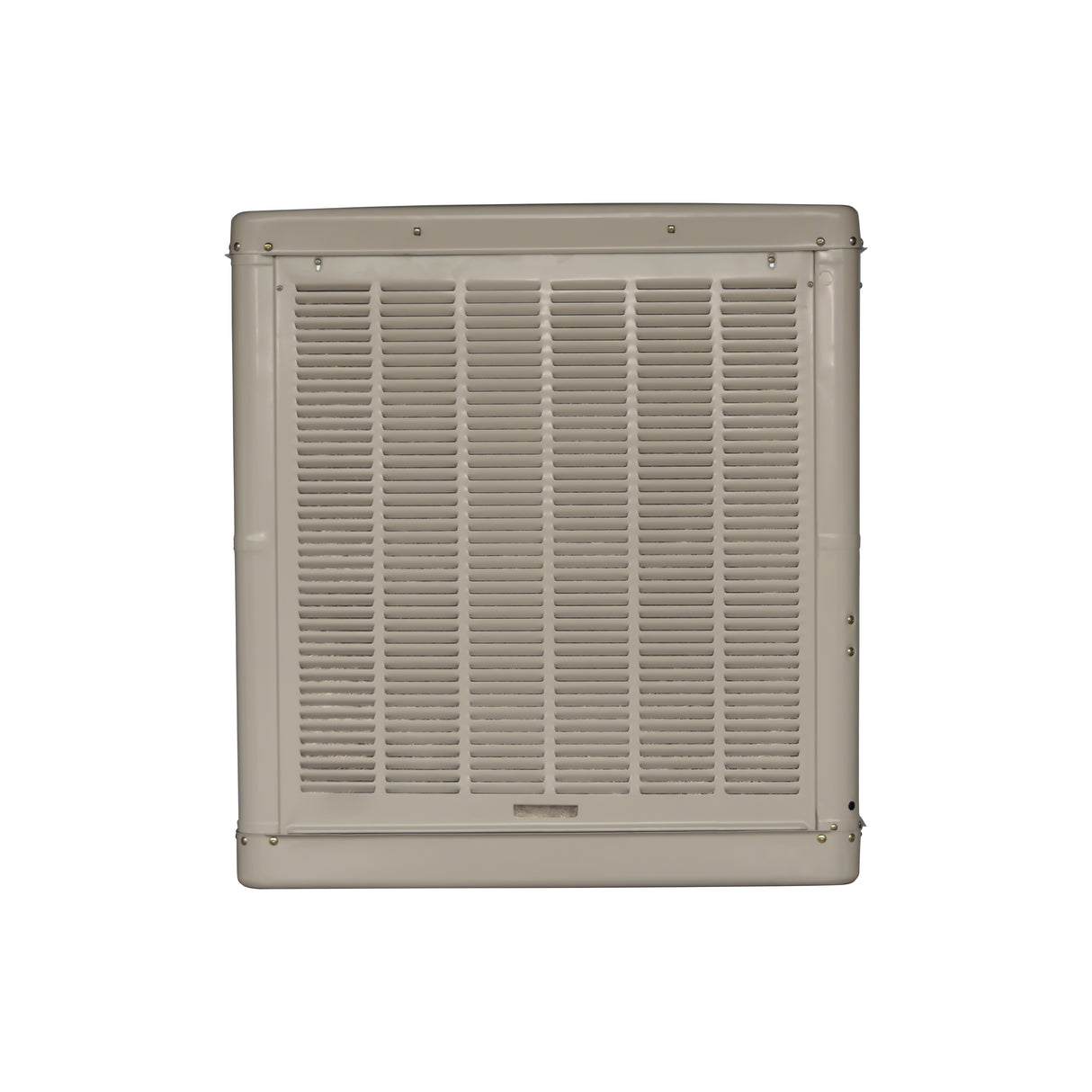

Champion 5000DD Evaporative Cooler Cabinet

Champion 5000DD Evaporative Cooler Cabinet. Cabinet Only

Forget about stuffy, stagnant rooms and say goodbye to expensive, energy-guzzling air conditioning. The Champion 5000DD Evaporative Cooler Cabinet uses the natural process of evaporation to deliver cool, fresh air throughout your home. This powerful, high-capacity unit can effectively cool spaces up to 2,400 square feet, making it the perfect choice for whole-home comfort. Made in USA!

Key features:

• Powerful 3,300-6,500 CFM airflow to cool spaces up to 2,400 sq ft
• Durable, corrosion-resistant cabinet constructed with heavy-duty steel
• Versatile 1/2 HP or 3/4 HP motor options for customized cooling power
• Easy installation with 19-3/4" x 19-3/4" duct sizing
• Meets California Prop 65 standards for safety and environmental compliance

Specifications:

Manufacturer: Champion
Manufacturer Part Number: 5000DD
Product Family: Ducted Cooler
Equipment Type: Hydronic
Air Flow Direction: Downflow
CFM: 3300-6500
Blower Wheel Size: 20" x 16 3/4"
Cycle/Hertz: 60 Hz
Voltage: 115 VAC
Rated Current Amps (RCA): 10.5, 14.5
Rated Load Amps (RLA): 10.5, 14.5
Phase: Single
Prop 65: Yes

Cabinet dimensions: 42-7/16" x 39" x 39"

Duct Sizing: 19-3/4" x 19-3/4"

Area Coverage: 1200-2400 Sq Ft. (Region and Motor Dependent)

Can use 1/2 HP 1 or 2 Speed or 3/4HP 1 or 2 Speed Motors.
