Cooper & Hunter | SKU:
CH-WTH24V

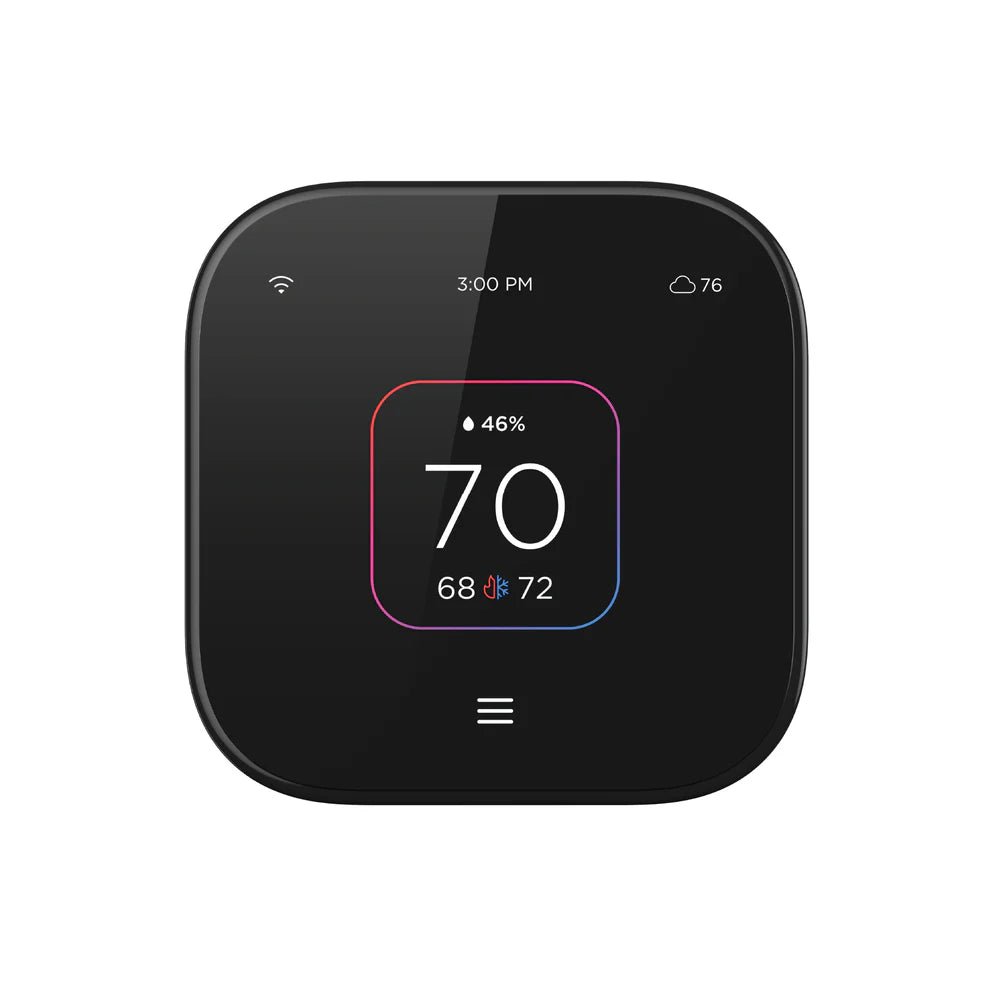

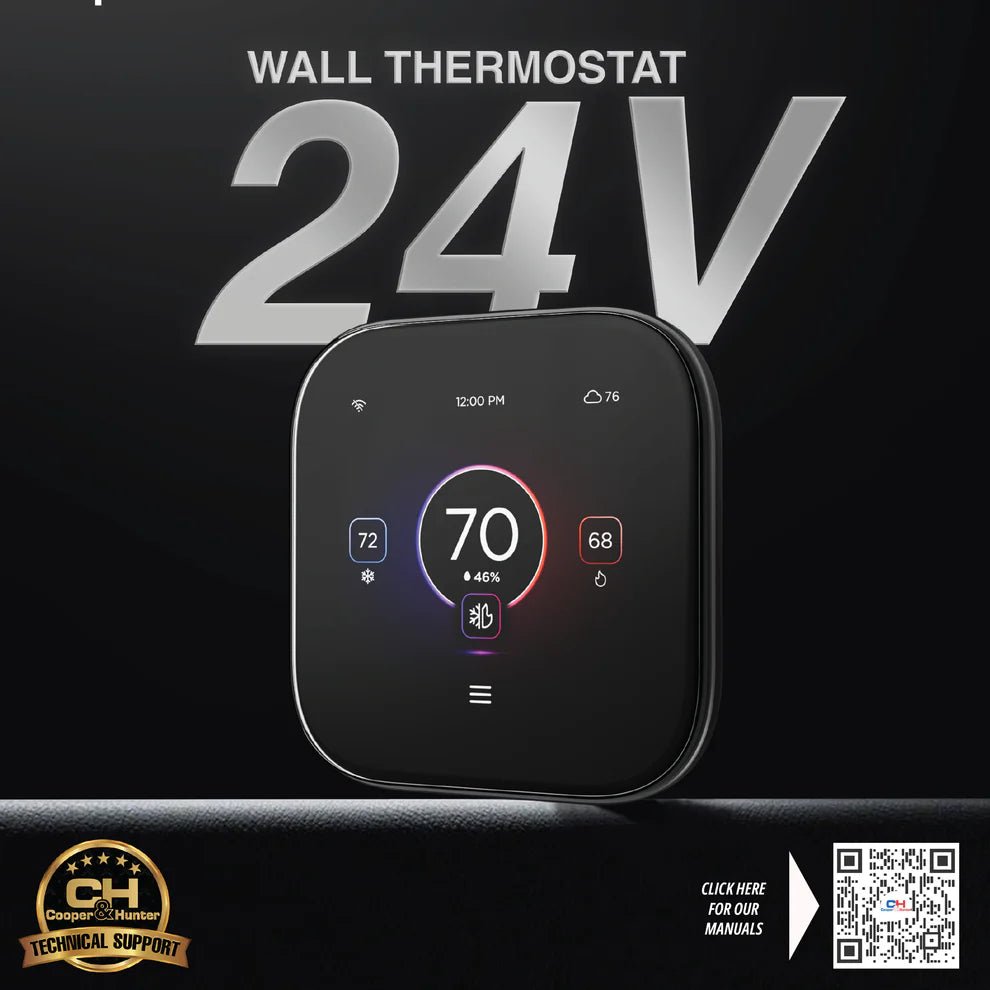

Cooper & Hunter CH-WTH24V — 24V Wall Thermostat
Regular price
$275.00
Unit price
/
Unavailable
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Cooper & Hunter CH-WTH24V — 24V Wall Thermostat
Regular price
$275.00
Unit price
/
Unavailable
Cooper & Hunter CH-WTH24V — 24V Wall Thermostat
UL Listed, energy-saving wired controller with 3.95" touch display and weekly scheduling.
Key Points
- Compatible with all C&H 454B equipment (except Wall Mounts)
- Compatible with C&H 410A Multi-Position Air Handlers
- Works with many 3rd-party 24V systems
-
UL Listed • Energy-saving operation
Connections & Wiring
Use HA&HB low-voltage terminals or standard 24V thermostat terminals.
| Mode | Terminals | Notes |
|---|---|---|
| HA&HB | HA, HB | C&H interface |
| 24V | Y2, Y1, G, R, C | Standard 24V thermostat wiring |
Highlights

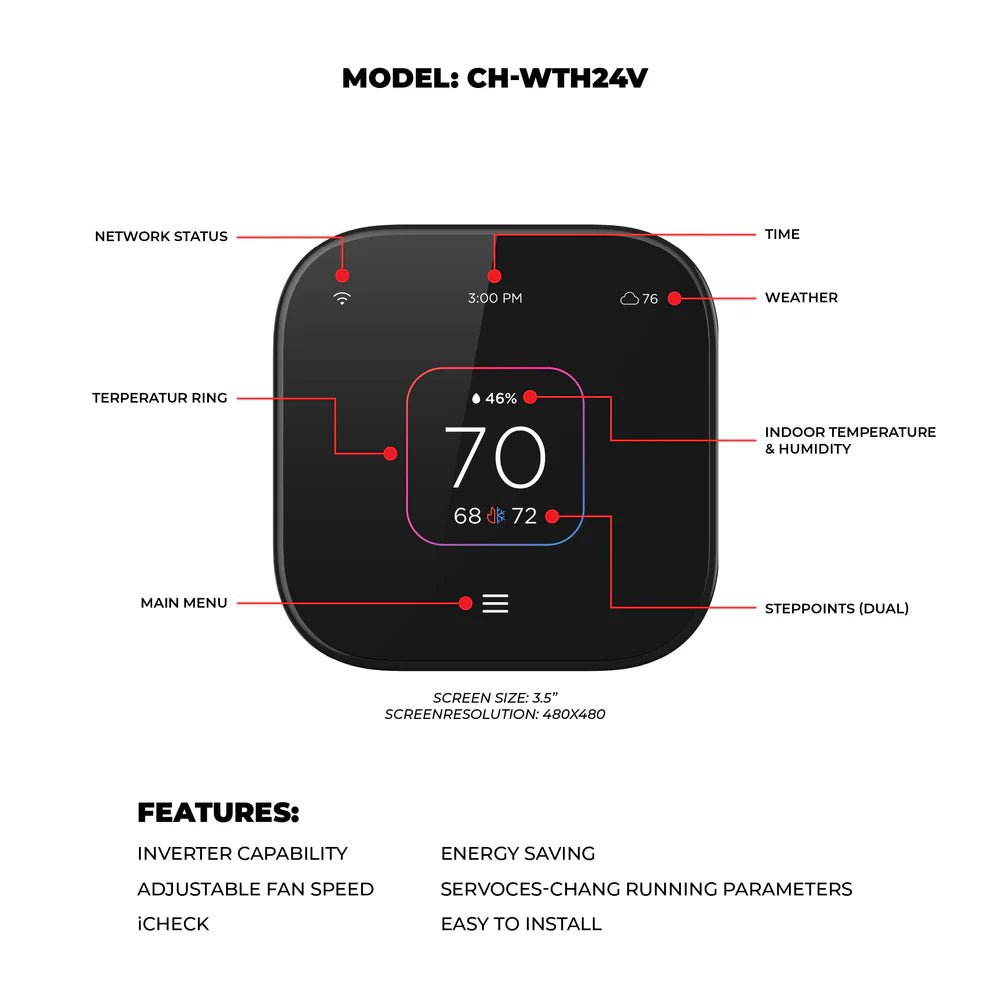

- Simple design with 3.95" LCD touch screen (480×480)
- Weekly schedule—set up to 4 periods per day
- Delay function—postpone shutdown by 1–2 hours for overtime
- Room temperature & humidity display (sensor built-in)
- Error code display and service-friendly status indicators
- Energy saving modes; adjustable fan speed
Functions
- Modes: Auto / Cool / Dry / Heat / Fan
- Fan speeds: Auto / Low / Med / High
- Swing (on some models), Turbo
- Timer ON/OFF, 12-hour & 24-hour time
- Weekly timer (4 periods/day), Clock
- Automatic airflow test; Rotation & backup
- Dual & Group control, Child lock
- Individual louver control (on some models)
- Auto-restart
