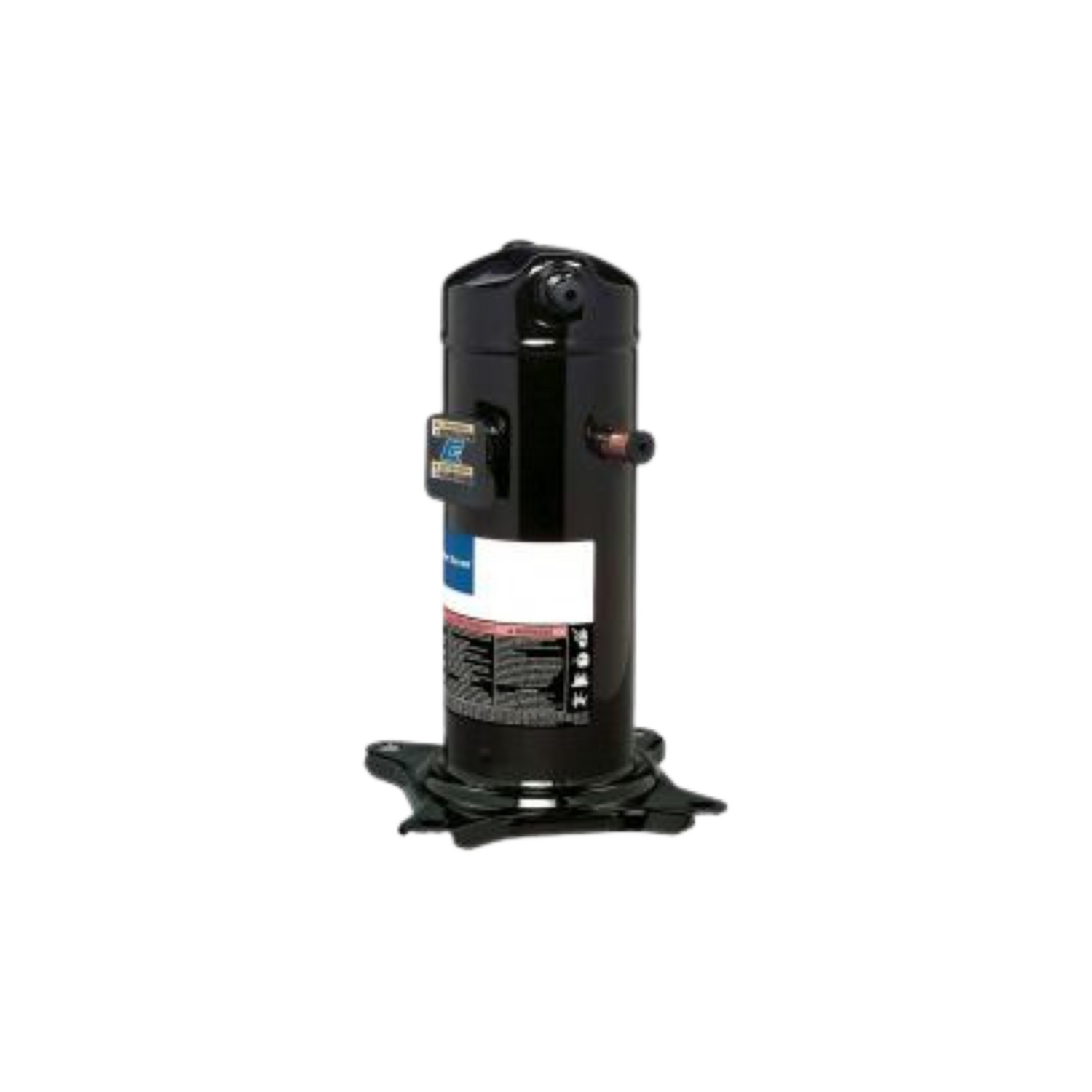

Copeland ZP49K5E-PFV-800 230 V 49400 BTU/hr Scroll Compressor
Description
Description
Copeland scroll compressors work with one scroll orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body while the orbiting scroll is coupled to the crankshaft. The orbiting motion creates a series of gas pockets traveling between the two scrolls. On the outer portion of the scrolls, the pockets draw in gas then move it to the center of the scroll where it's discharged. As the gas moves into the scroll's center, the temperature and pressure increase to the desired discharge pressure.
Features:
5th generation fixed speed compressor
Improved temperature protection
Internal pressure protection
R-410A ready
Proven performance and reliability
High efficiency motor
For residential and light commercial applications
Specifications:
Manufacturer: Copeland
Manufacturer Part Number: ZP49K5E-PFV-800
Product Type: Scroll Compressor
Input Voltage: 230 V
No. of Phase: 1
Capacity: 49400 BTU/hr
Refrigerant: R410A
Dimensions: 13.5" x 14.5" x 20"
Weight: 80.0 lb.
Replacement For: Rheem 55-102045-26S
