Daikin-McQuay 668113003 115v 1/12hp 1100/950/750rpm

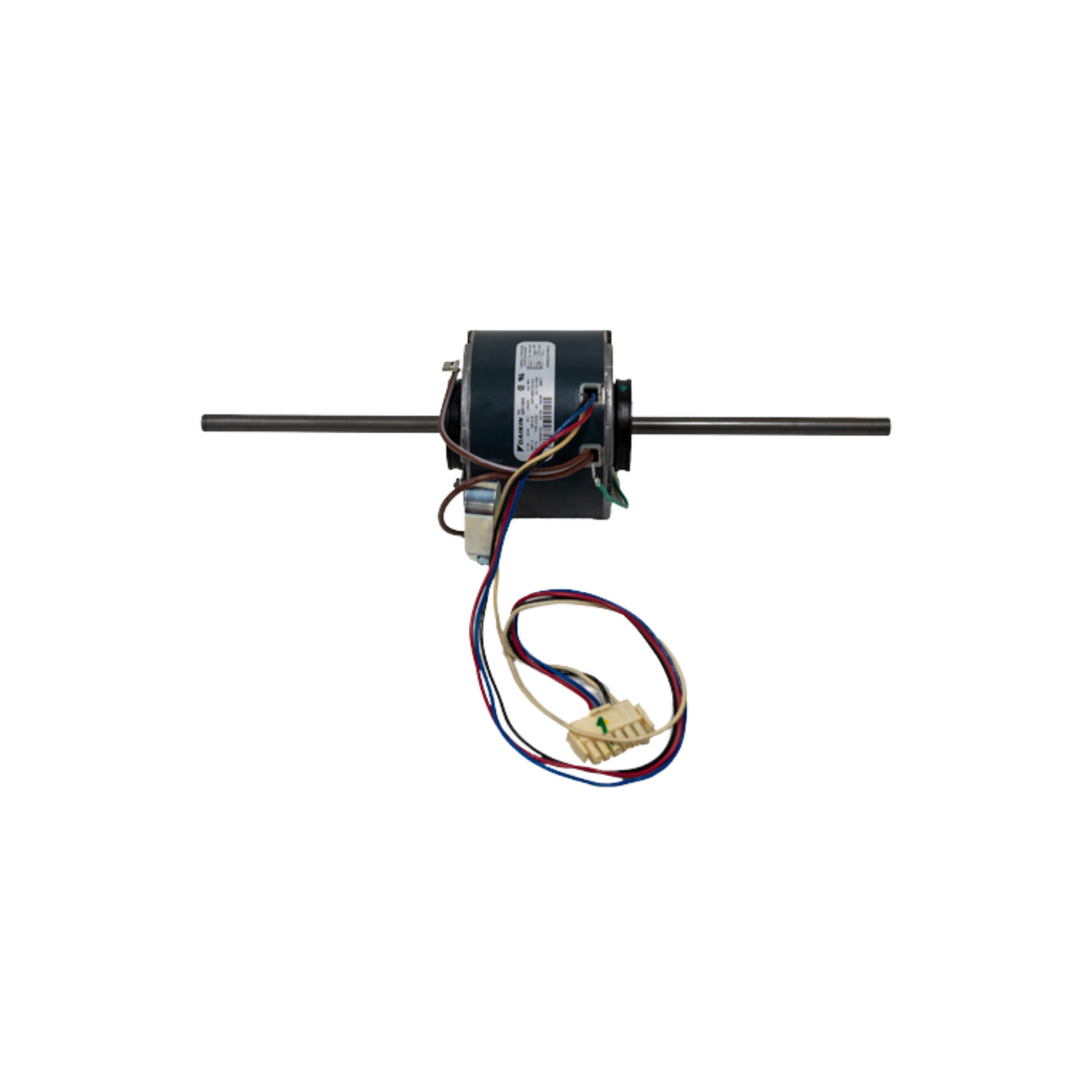

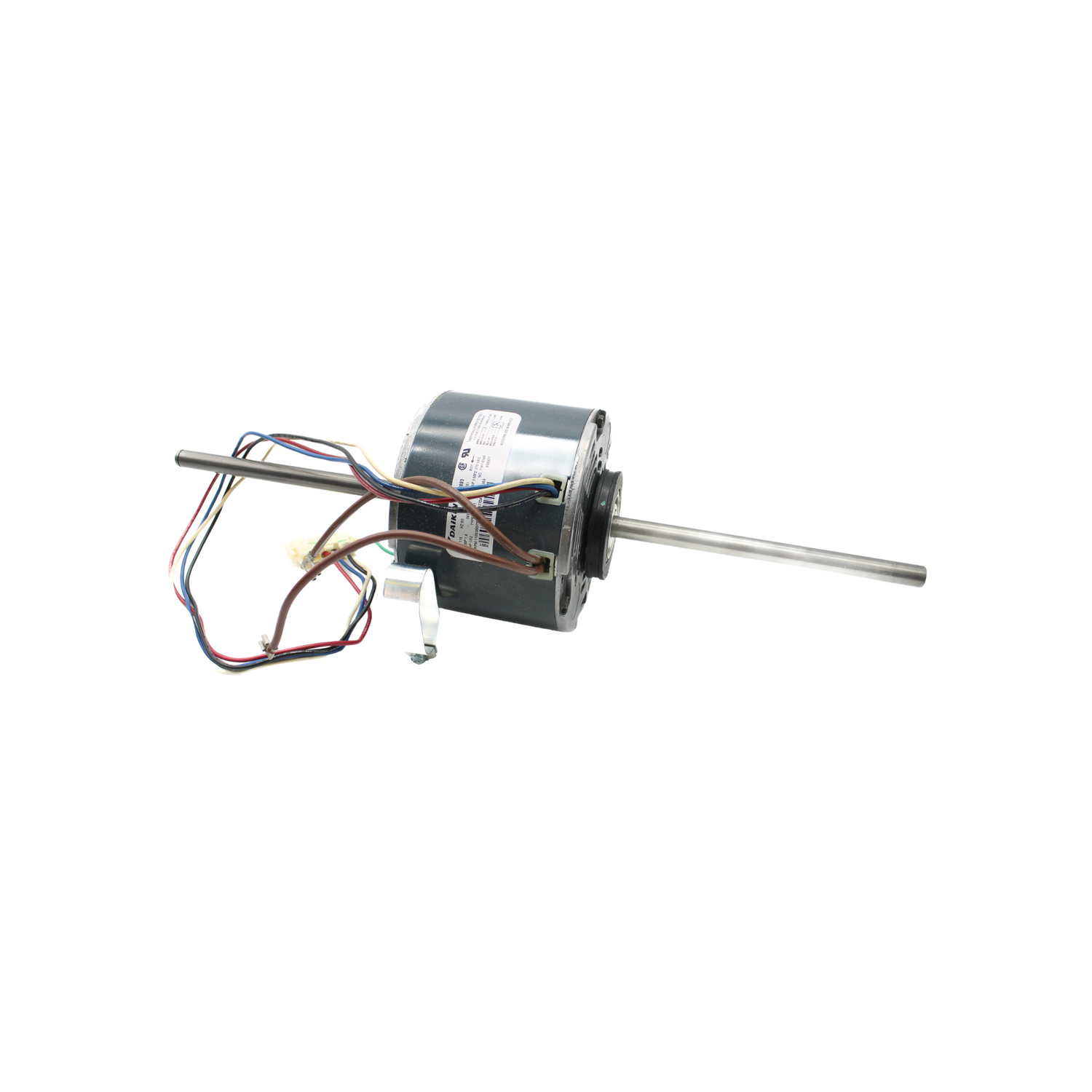

The Daikin-McQuay 668113003 is a 1/12 horsepower, 3-speed blower motor designed for HVAC applications. It operates at 115V and offers three speed settings: 1100, 950, and 750 RPM. This motor is equipped with a 42X frame and is an open-type PSC (Permanent Split Capacitor) motor, drawing 1.4 amps. It requires a 3 µF, 440V capacitor (part number 910120040), which is sold separately. The motor features double shafts, making it suitable for belt-driven blower assemblies.

Specifications:

Manufacturer: Daikin-McQuay
Manufacturer Part Number: 668113003
Product Type: Motor
Voltage Rating: 115 V
Current Rating: 1.4 A
Motor Size: 1/12 HP
Frame Size: 42
RPM: 1100/950/750
No. of Phase: 1
No. of Speed: 3
Rotation: Counter Clockwise
Dimensions: 22.9" x 7.5" x 5.6"
Weight: 11.0 lb.
