Dial | SKU:
24465

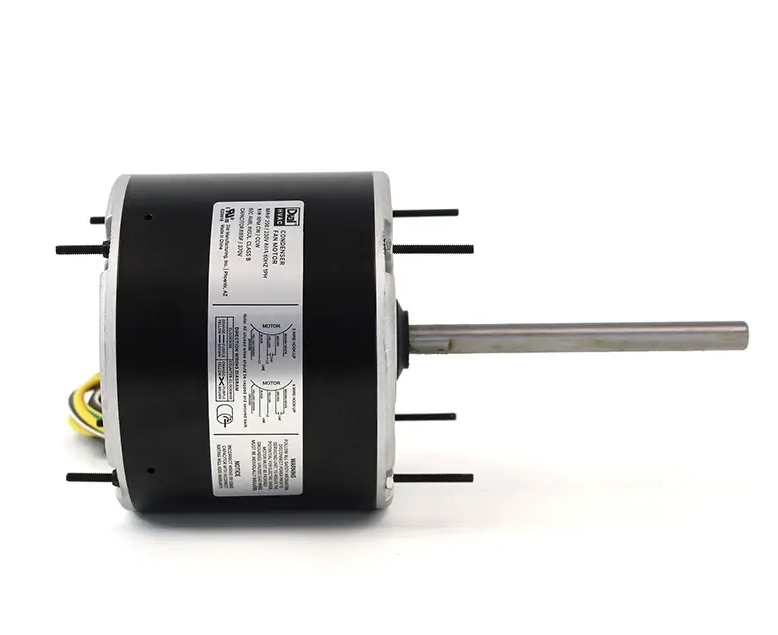

Dial 24465 1/3-1/6HP 208/230V 1075RPM 2-Speed Condenser Fan Motor
Regular price
$120.51
Unit price
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Pickup available at Snook & Aderton, Inc
Usually ready in 1 hour
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight.
Dial 24465 1/3-1/6HP 208/230V 1075RPM 2-Speed Condenser Fan Motor
Regular price
$120.51
Unit price
| Horsepower |
1/3 – 1/6 |
|---|---|
| Voltage |
208/230V |
| RPM |
1075 |
| Speeds |
2 |
| Ambient Rating |
60° C |
| Rotation |
Reversible |
| Amperage |
2.7A / 1.5A |
| Required Capacitor |
5μF / 370V @230V, 7.5μF / 370V @208V |
| Hz |
60Hz |
| Phase |
1PH |
| Enclosure |
TEAO |
| NEMA Frame Size |
NEMA 48 Frame |
| Shaft Diameter (in.) |
0.50 |
| Shaft Length (in.) |
4.96 |
| Shell Diameter (in.) |
5.6 |
| Motor Body Length (in.) |
4.53 |
