Dial Mfg. | SKU:
dm2605

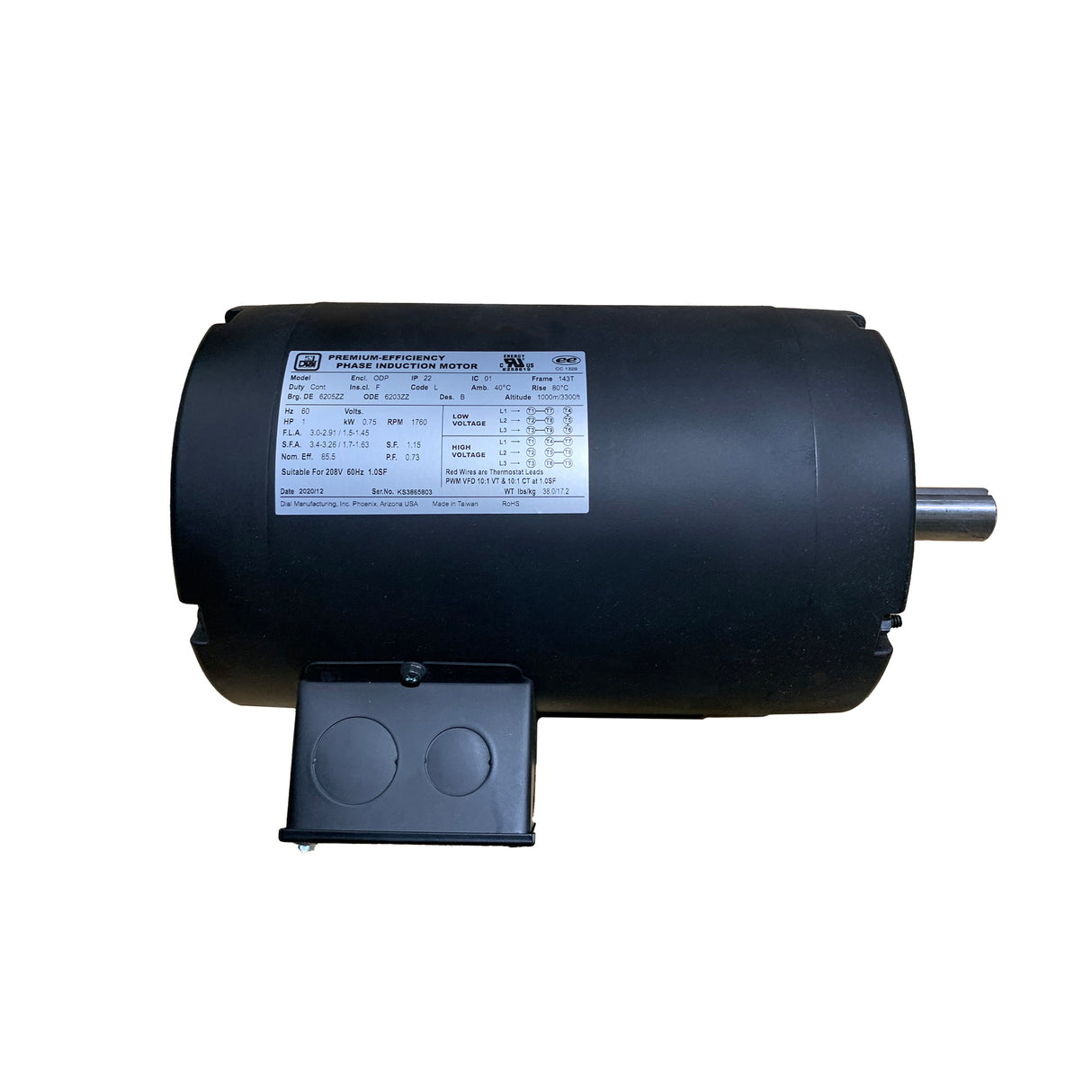

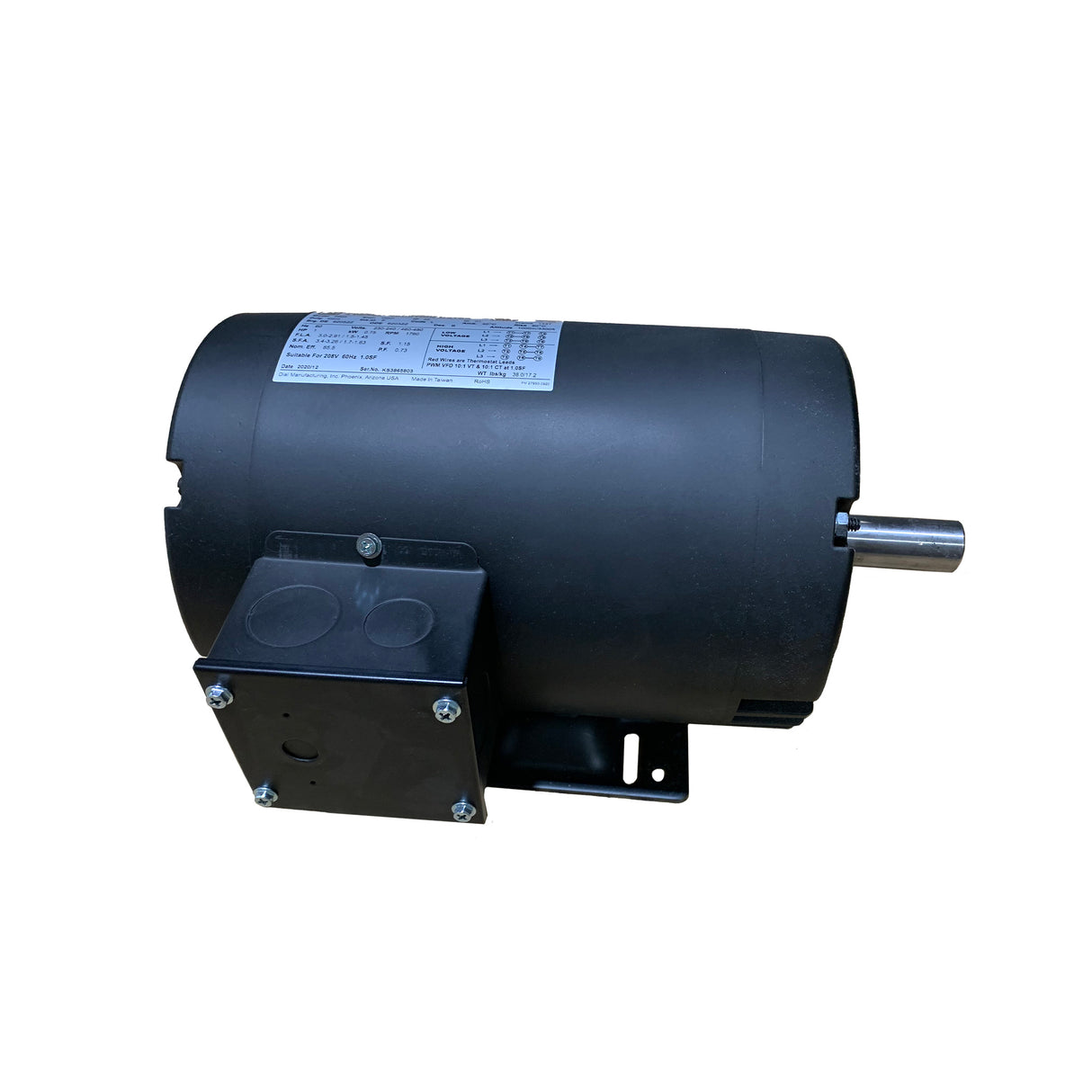

Dial - 2605 Motor - 2 HP 3 Phase 230/460 Volt
Regular price
$324.85
Unit price
/
Unavailable
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Dial - 2605 Motor - 2 HP 3 Phase 230/460 Volt
Regular price
$324.85
Unit price
/
Unavailable
Evaporative cooler motor.
230/460V 3Ph Industrial Motor
- Premium Efficiency
- 3 Phase Induction Motor
- Inverter Duty Rated
- Suitable for 208/230/460V, 60Hz, 1.0SF
| Part # | 2605 | ||
| HP | 2 | ||
| Supply Voltages | (208) 230 /460 | ||
| Freq. | 60 Hz | ||
| Current | 6.0/3.0 | ||
| Sync. Speed | 1800 | ||
| Rotation | REV | ||
| Frame | 145T | ||
| Mount Design | Rigid | ||
| Insulation Rating | F | ||
| Enclosure Type | ODP | ||
| Service Factor | 1.15 | ||
| Shaft Dia. | 7/8" | ||
| Efficiency | 86.5 | ||
| Weight | 46.3 lbs | ||
| Shipping Weight | 48.5 lbs | ||
| Overall Length | 13.15 | ||
| Shaft Extension | 2 1/4" | ||
| Thermal Protection | Thermostat | ||
| Duty | Cont. | ||
| UL | Recognized | ||
| Package Material | Cardboard |
