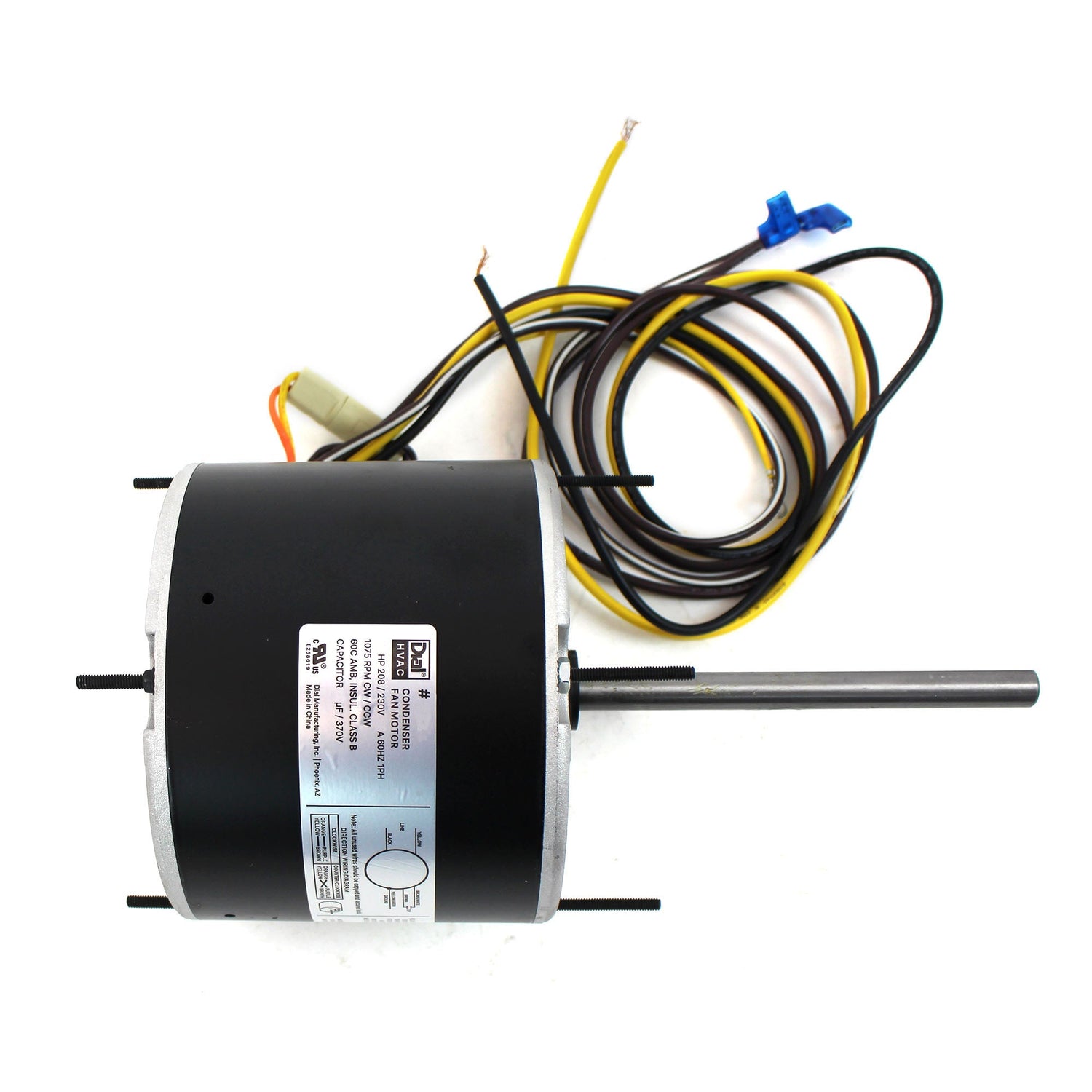

Dial Manufacturing 2121 – 1/4 HP 1 Spd/1075 RPM Condenser Fan Motor

Dial Manufacturing's 2121 Condenser motor is a 1/4 HP, 1 Speed PSC Motor, designed for efficiency and reliability. Operating at 208/230V with a 1.8 amp rating, this motor delivers a steady speed of 1075 RPM, making it ideal for various applications. Its reversible rotation feature allows for versatile use, while the auto thermal protection ensures safety during operation. With a durable TEAO enclosure and insulation class B, this motor is built to withstand ambient temperatures up to 60ºC (140ºF). The 36-inch lead length and included mounting hardware make installation straightforward, ensuring you can get back to work quickly. Please note the warning regarding potential exposure to chemicals, and ensure compatibility with your existing setup for optimal performance.

Reasonable measures were taken to ensure the accuracy of the motor cross-reference information. However, the installer is responsible for determining a suitable replacement motor.

SPECS:

HP: 1/4

Voltage: 208/230V

Amp Rating: 1.8

Speed: 1

Phase: 1 @ 60Hertz

Reversible Rotation: Yes

RPM: 1075

Capacitor: 5MFD/370V

Motor Type: PSC

Frame: 48

Enclosure: TEAO

Insulation Class: B

Auto Thermal Protection: Yes

Ambient Temp: 60º C / 140ºF

Motor Diameter: 5.625 in.

Shaft Diameter: 0.5 in.

Shaft Extension: 6.4 in.

Lead Length: 36 in.

UL Recognized: Yes

Extended Studs, Shell Mounting Holes including screws, Belly Band, Shaft Up/Down
