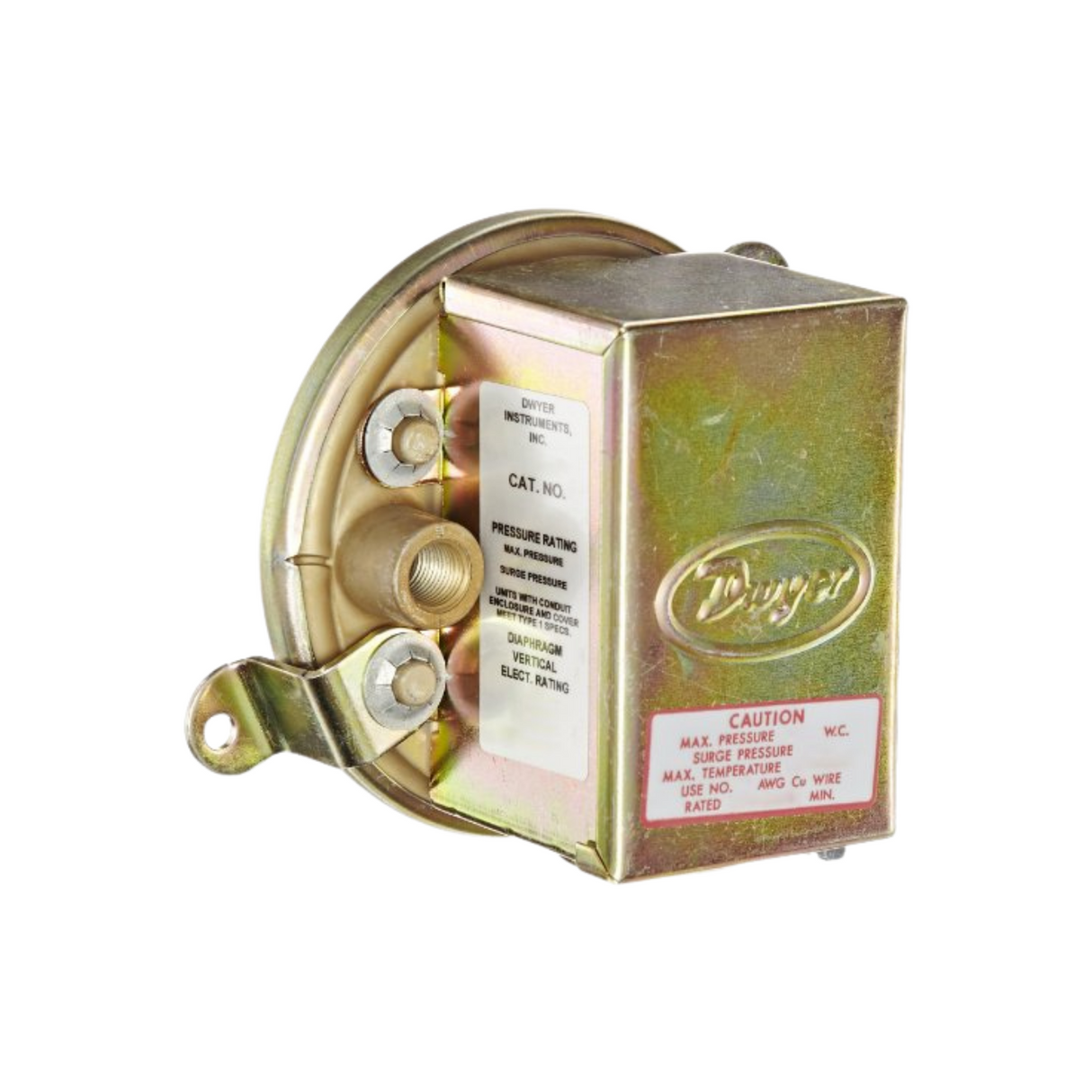

Dwyer Instruments 1910-00 Compact Low Differential Pressure Switches, 0.07"-0.15" W.C. Range
Dwyer Instruments 1910-00 Compact Low Differential Pressure Switches, 0.07"-0.15" W.C. Range is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Dwyer Instruments 1910-00 Compact Low Differential Pressure Switche...
Description
Description
The 1910 Series differential pressure switches are designed to monitor the differential pressure of air in HVAC applications and building automation systems, BAS. An automatic reset pressure switch is available in ranges from 0.07 in to 20 in W.C. (17.4 to 4982.0 Pa) with SPDT screw type electrical connections. The optional Model A-602 air filter kit includes two static pressure tips, aluminum tubing, and fittings, and it allows the 1910 Series to monitor filter pressure drop.
Specifications
Manufacturer: Dwyer Instruments
Manufacturer Part Number: 1910-00
Short Description: DIFF PRESS SW, ADJUST, 0.07-0.15" WC
Housing Material: Metallic
Type: Adjustable
Accuracy: ±3.00%
Contact Rating: 15 A @ 120-480 VAC
Contact Type: SPDT
Description: Differential Pressure Switch, Range 0.07-0.15" W.C., Approx. Deadband @ Min. Set Point 0.04, Approx. Deadband @ Max. Set Point 0.04
Direction: Uni-Directional
Measurement: Inches of Water Column
Range: 0.07-0.15" WC
