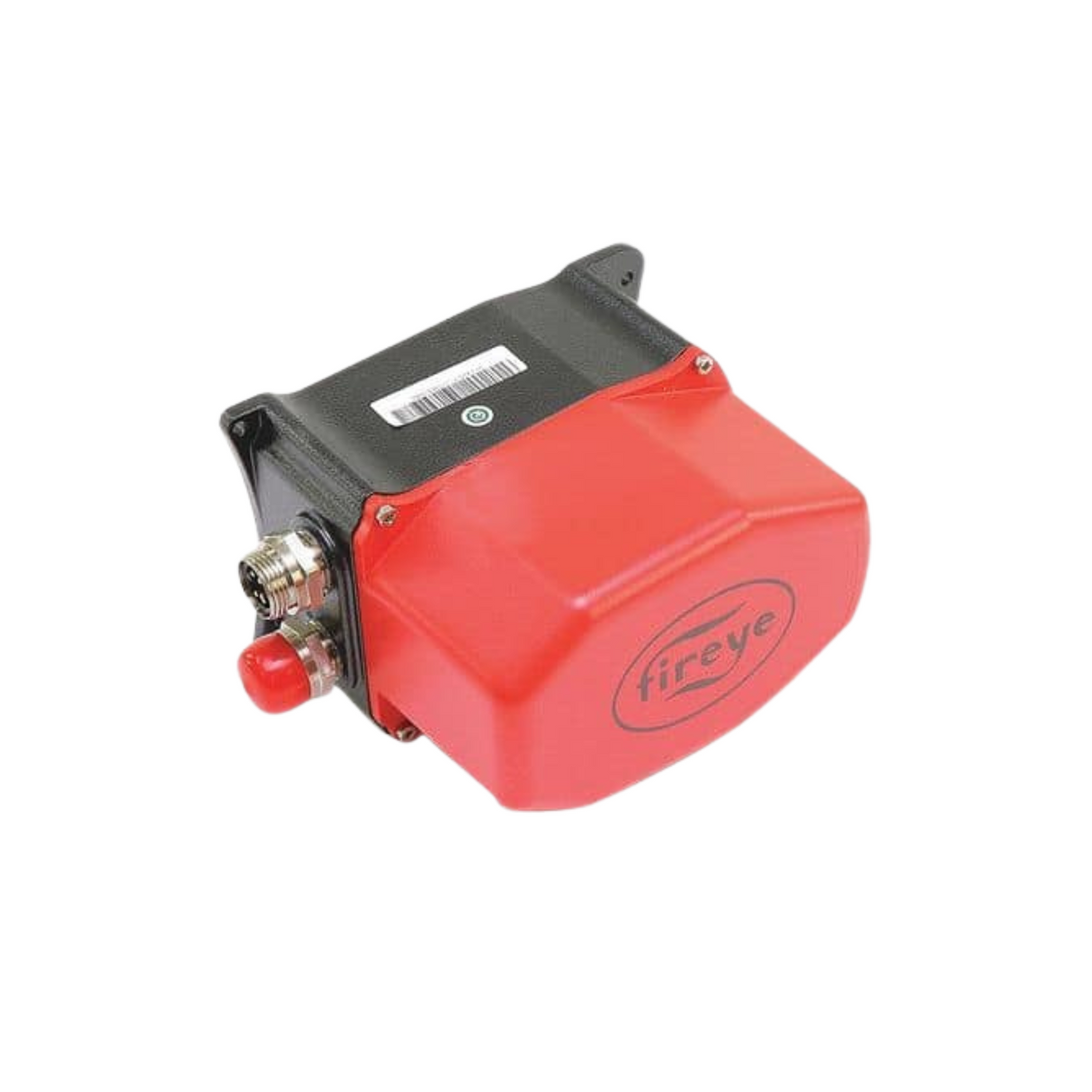

Fireye FX20 Servo Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Fireye
Manufacturer Part Number: FX20
Product Type: Servo Motor
Actuating Time For 90 Degrees Angle Of Rotation: 30 Seconds
Nominal Torque: 15 lb.-ft./ 20 Nm
Holding Torque: 8 lb.-ft./ 10 Nm
Max. Revolutions On The Output Drive Shaft: 100 Degrees
Nominal Voltage: 24 VDC~± 10%
Nominal Power Consumption: 15 VA Nominal, 35 VA Peak
Angle Of Rotation Limited By: Software
Degree Of Protection: NEMA 4 IP 65 (Note 1)
Installation Position: Any
Working Temperature Range: -32 Degrees F to 140 Degrees F
Duty Cycle: 100%
Dimensions: 9.2" x 11.05" x 9.35"
Weight: 7.52 lb.
