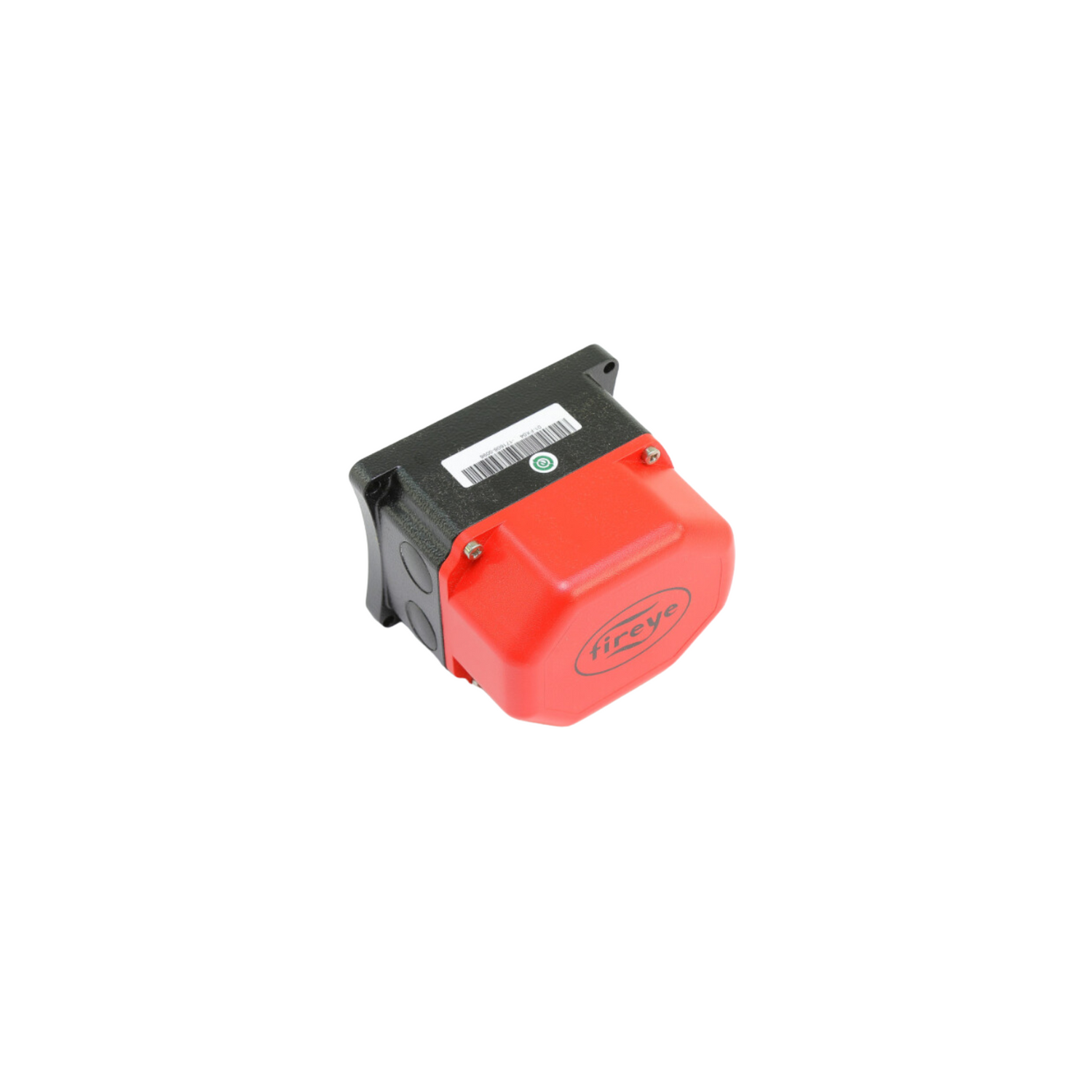

Fireye FX20-1 Servo Motor With Quick Disconnect Connector
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Specifications:
Manufacturer: Fireye
Manufacturer Part Number: FX20
Product Type: Servo Motor
Actuating Time For 90 Degrees Angle Of Rotation: 30 Seconds
Nominal Torque: 15 lb.-ft./ 20 Nm
Holding Torque: 8 lb.-ft./ 10 Nm
Max. Revolutions On The Output Drive Shaft: 100 Degrees
Nominal Voltage: 24 VDC~Γö¼ΓûÆ 10%
Nominal Power Consumption: 15 VA Nominal, 35 VA Peak
Angle Of Rotation Limited By: Software
Degree Of Protection: NEMA 4 IP 65 (Note 1)
Installation Position: Any
Working Temperature Range: -32 Degrees F to 140 Degrees F
Duty Cycle: 100%
Dimensions: 9.35" x 11.2" x 9"
Weight: 7.69 lb.
Includes: Quick Disconnect Connectors
