Fireye  |  SKU: FX50-1

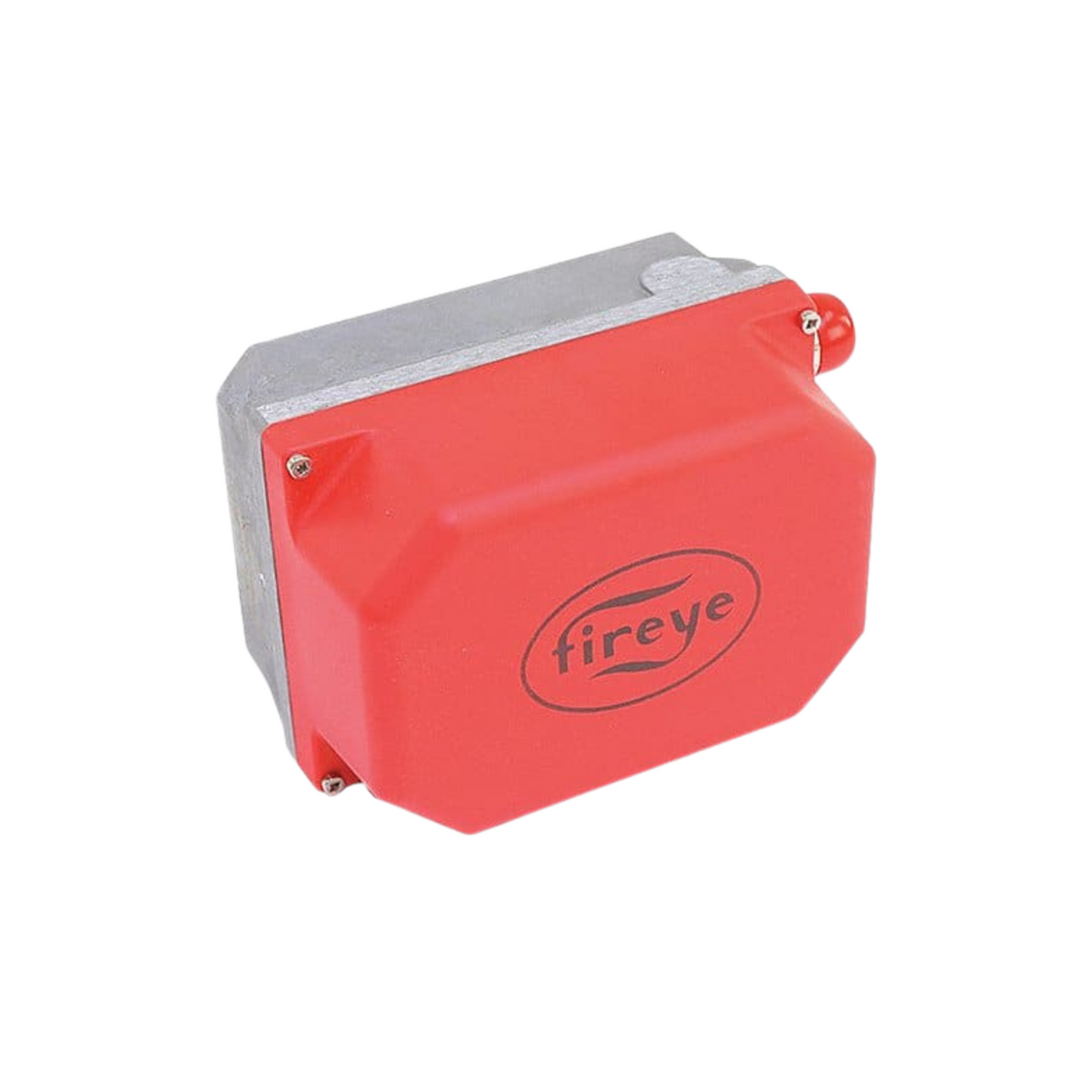

Fireye FX50-1 Servo Motor With Quick Disconnect Connector

$2,090.58

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Specifications:

Manufacturer: Fireye
Manufacturer Part Number: FX50-1
Product Type: Servo Motor
Actuating Time For 90 Degrees Angle Of Rotation: 30 Seconds
Nominal Torque: 37 lb.-ft./ 50 Nm
Max. Revolutions On The Output Drive Shaft: 100 Degrees
Nominal Voltage: 24 VDC~± 10%
Nominal Power Consumption: 20 VA Nominal, 38 VA Peak
Angle Of Rotation Limited By: Software
Degree Of Protection: NEMA 4 IP 65 (Note 1)
Installation Position: Any
Working Temperature Range: -4 Degrees F to 140 Degrees F
Duty Cycle: 100%
Dimensions: 11.15" x 9" x 9.25"
Weight: 8.71 lb.
Includes: Quick Disconnect Connectors
For Use With: PPC4000
