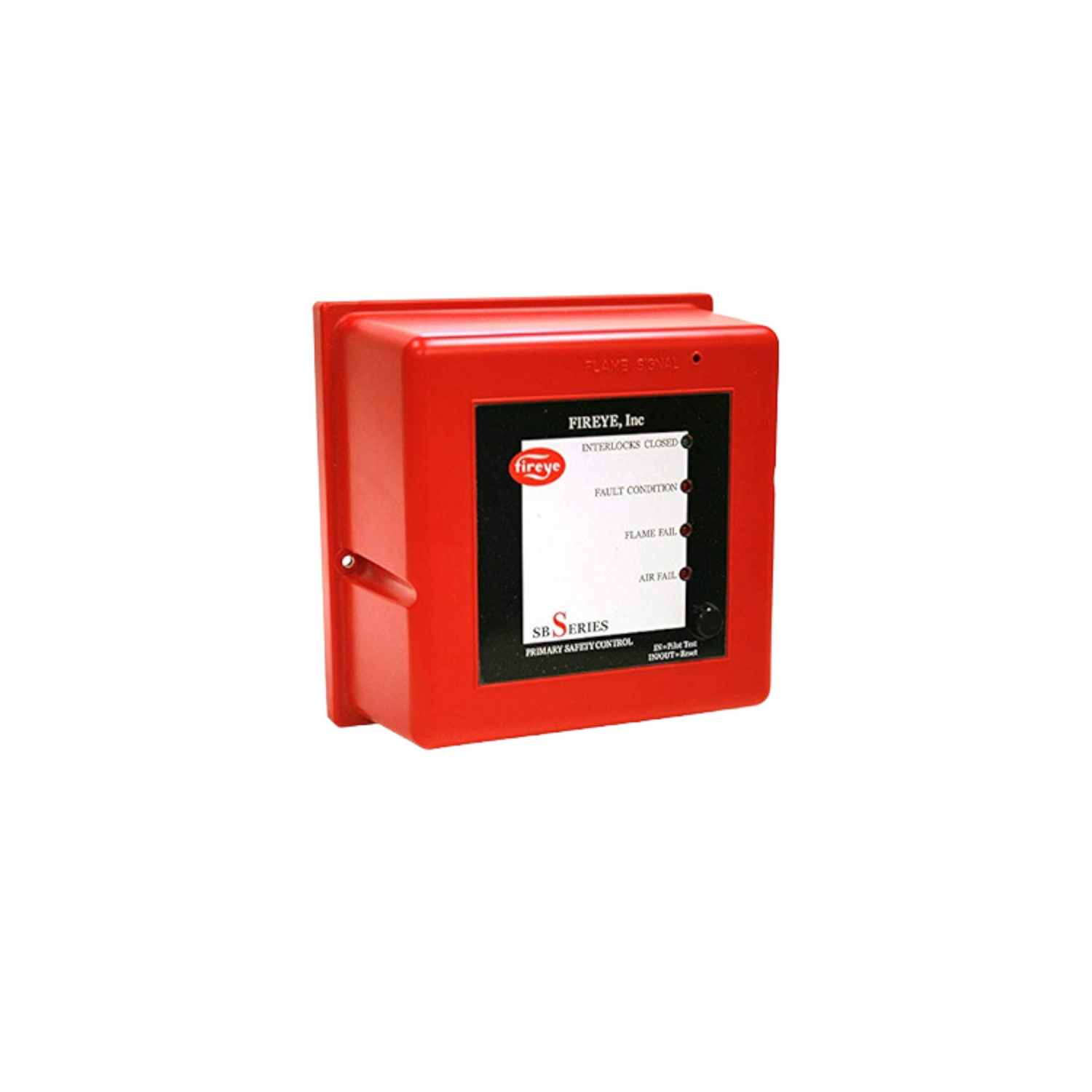

Fireye SB560533AA Flame Safeguard Control

The Fireye SBSeries Flame Safeguard Control is a compact, microprocessor based, modular burner management system designed to provide automatic ignition and continuous flame monitoring for commercial sizes of heating and process equipment firing any type of fuel.

The control unit includes all the necessary digital logic and analog measuring circuitry to control the sequence and monitor the flame of single gas, oil or combination gas/oil burners. Three available control sequences are no-purge, purge, and modulation (air damper control). The part number specifies the various features such as the flame sensor type, no purge, purge, modulation, proof of air opening at start, and timings; thus the designer has control and protection against field tampering of critical sequences.

Specifications:

Manufacturer: Fireye
Manufacturer Part Number: SB560533AA
Product Type: Flame Safeguard Control
Voltage Rating: 120 VAC @ 50/60 Hz
Purge Timing: Selectable
Ignition Timing: 10, 15 Seconds
Dimensions: 6" x 7.25" x 6.4"
Weight: 2.22 lb.
