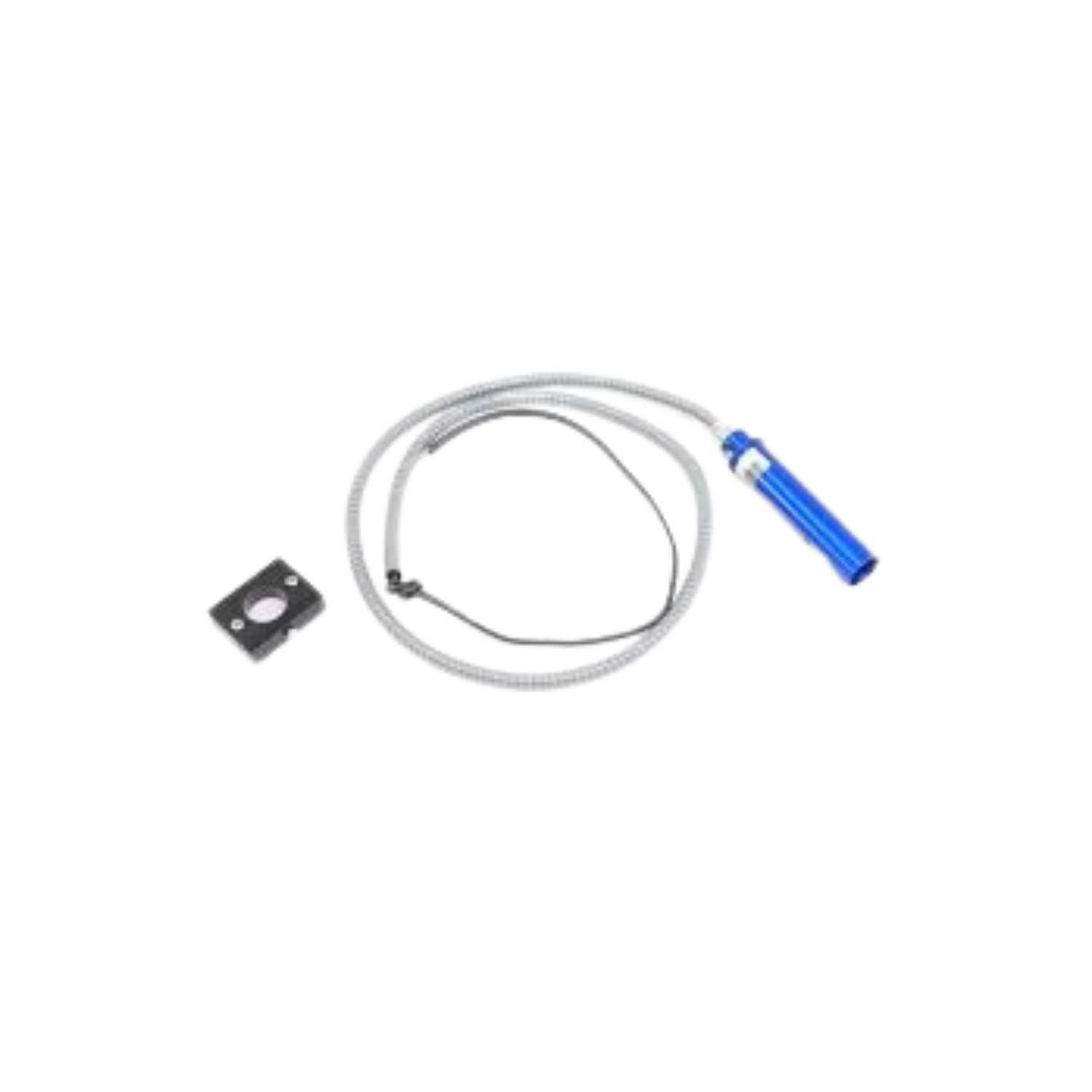

Fireye UV90-3 3' Flex Conduit Non Self-Checking UV Scanner

Features:

The UV Tube is Made of Quartz and is Filled with a Gas that Ionizes When Struck by UV Radiation from the Flame
In the Absence of UV Radiation, the Gas Acts as an Insulator Between Two Electrodes Which are Mounted Inside the Tube
These Electrodes are Energized Continuously by a High Voltage
During Combustion, UV Radiation Ionizes the Gas, Causing Current Pulses to Flow Between the Electrodes
These Current Pulses Result in a Flame Signal Which is Transmitted to the Amplifiers in the Control, Where it is Processed to Energize or Hold in the Flame Relay

Specifications:

Manufacturer: Fireye
Manufacturer Part Number: UV90-3
Product Type: Non Self-Checking UV Scanner
Tube Material: Quartz
Operating Voltage: 560 VAC @ 120 V @ 50/60 Hz
Cable Length: 3' Flex Conduit
Thread Size: 1/2" NPT
Connector Type: 90 Degrees Right Angle Head
Lead Type: 36" Unshielded Leads
Temperature Rating: -40 to 200 Degrees F
Dimensions: 6.45" x 9.4" x 2.5"
Weight: 0.6 lb.
