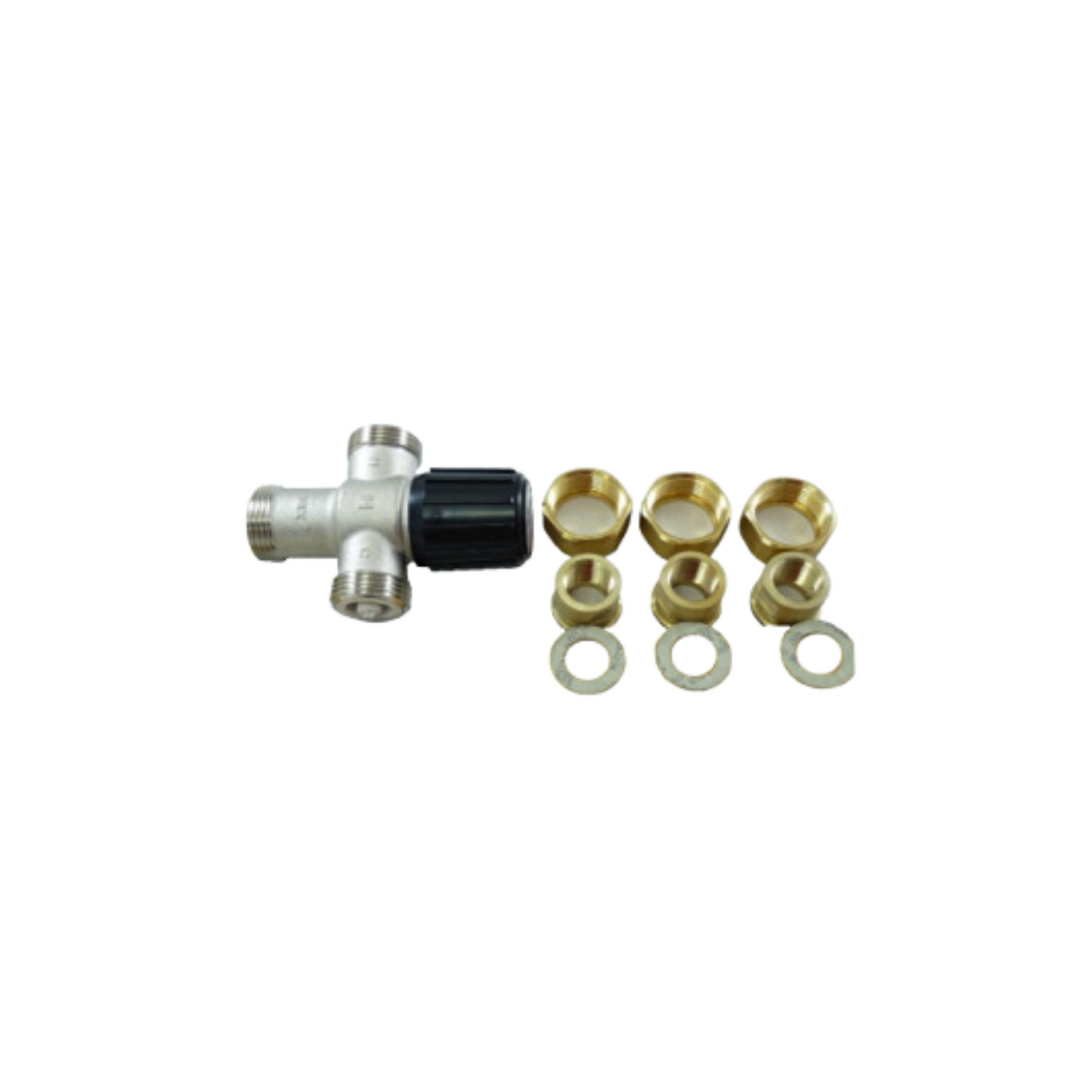

Honeywell AM100C1070-UT-1LF 1/2" Union Npt. Aquamix 1070 Lead Free Mixing Valve

Features:

Dual Purpose Mixing or Diverting Valve
Offers Constant Water Temperature Under Changing Operating Conditions
Temperature is Limited at any Point and If Cold Water Supply is Interrupted, Flow Reduction Occurs in Seconds
Proportional Valve for Simultaneous Control of Hot and Cold
Tamper Resistant Design
Non-Stick Coating Prevents Mineral Build-Up and Extends Life
Lead-Free

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: AM100C1070-UT-1LF
Product Type: Thermostatic Mixing Valve
Nominal Size: 1/2”
End Connection Union: Threaded x Union Threaded x Union Threaded
End to End Distance: 4.9”
Base to Inlet Dimension: 2.9”
Inlet to Mixing Outlet Dimension: 2.9”
Body Material: Non-Stick Coated Nickel Plated Brass
Flow Rate: 0.5GPM
Temperature Rating: 212 Degrees F
Pressure Rating: 150 PSI
Length: 5.9”
Operating Temperature: 70 to 120 Degrees F
Flow Capacity: 1.8Cv
O-Ring Material: EPDM Rubber
Dimensions: 3.6” x 6.1” x 3.8”
Weight: 2.36 lb.
