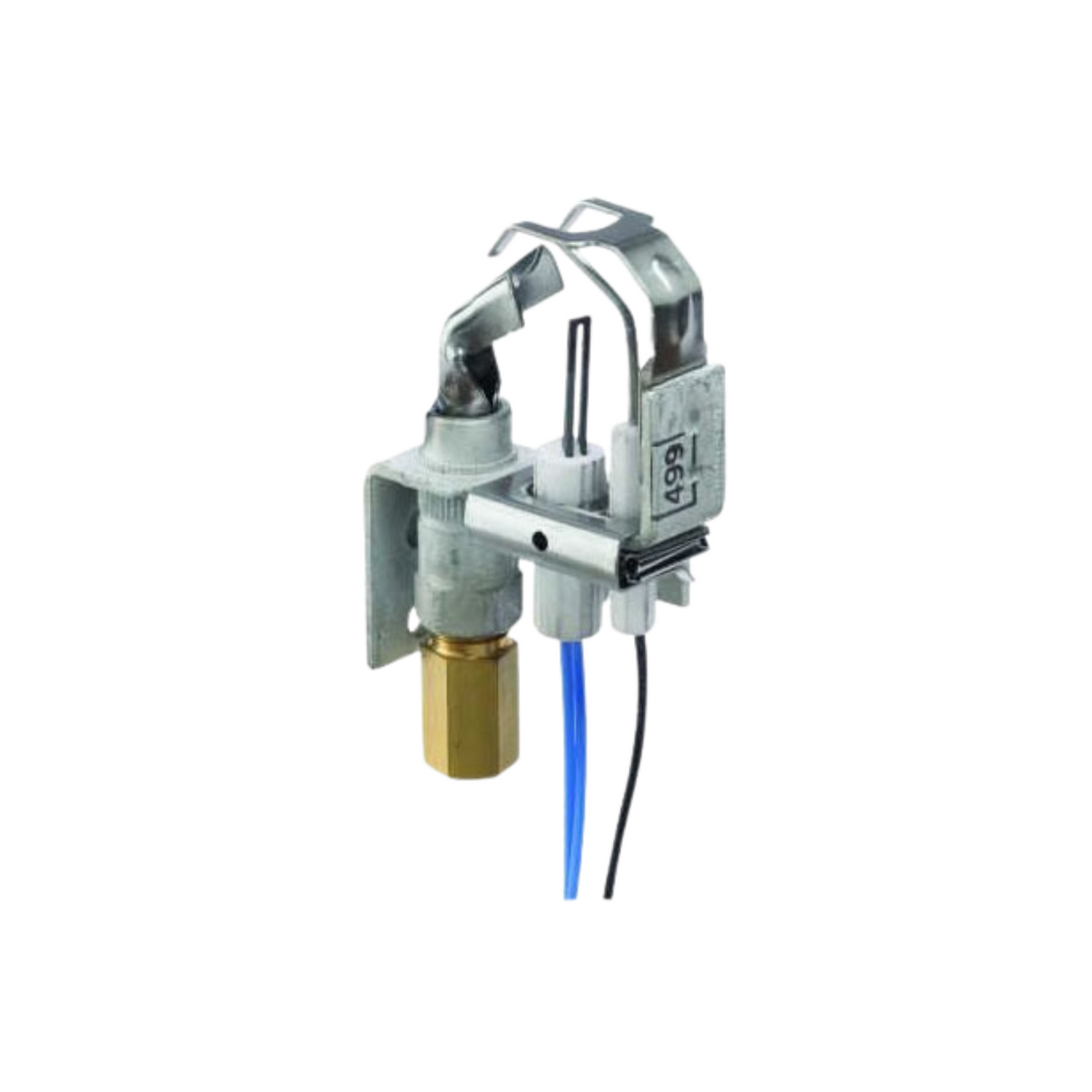

Honeywell Q3450C1185 Pilot Burner For Natural Gas With A Bcr-18 Orif

Features:

Used with Smartvalve System
Replaceable Igniter-Flame Rod Assembly
Integral Keyed Plug Provides Quick, Convenient Connection of Igniter and Sensor to Smartvalve

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: Q3450C1185
Product Type: Pilot Burner
Fuel Type: Natural/Liquid Propane Gas
Ignition Source: Ground Electrode
Mounting Bracket: Type C
Fitting Size: 1/4" Compression
Orifice Size: 0.018" (BCR-18), 0.02" (BCR-20), 0.022" (BCR-22), 0.12" (BCR-12)
Tip Style: Target
Front Tip Direction: (L) Left
Compression Fitting Length: 1 1/4"
Ignition Wire Length: 30"
Dimensions: 4" x 2.8" x 2.5"
Weight: 0.3 lb.
Includes: Orifice, Bracket, Pilot Target, Ground Electrode, Replaceable Igniter Flame Rod, Spring Clip
