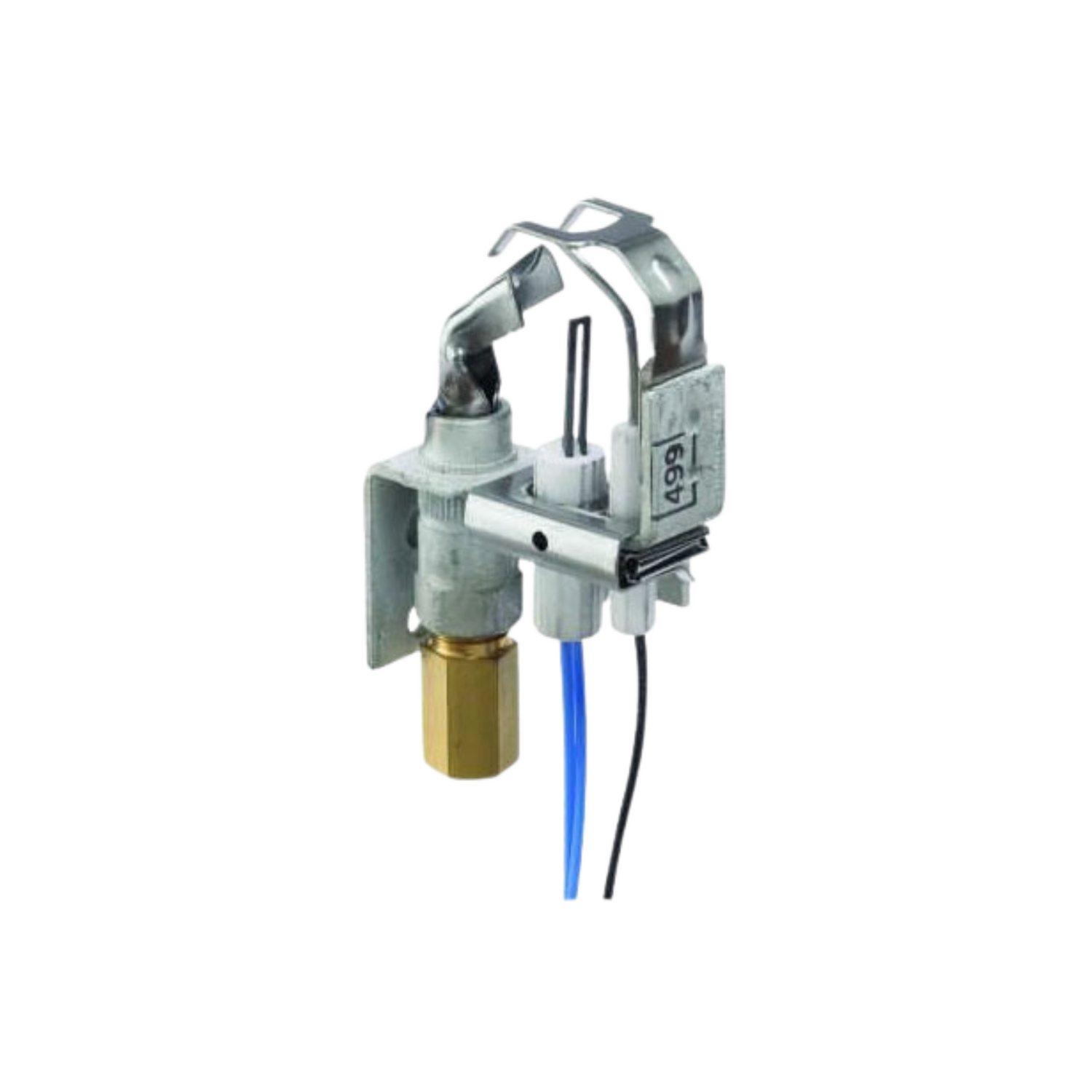

Honeywell Q3450E3020 Pilot Burner For Natural Gas With A Bcr-22 Orif
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Features:
Used with Smartvalve System
Replaceable Igniter-Flame Rod Assembly
Integral Keyed Plug Provides Quick, Convenient Connection of Igniter and Sensor to Smartvalve
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: Q3450E3020
Product Type: Pilot Burner
Fuel Type: Natural Gas
Ignition Source: Ground Electrode
Mounting Bracket: Type C
Fitting Size: 1/4" Compression
Orifice Size: 0.022" (BCR-22)
Tip Style: Target
Front Tip Direction: (R) Right
Compression Fitting Length: 1 1/4"
Ignition Wire Length: 30"
Dimensions: 5.7" x 2.85" x 2.5"
Weight: 0.26 lb.
Includes: Orifice, Bracket, Pilot Target, Ground Electrode, Replaceable Igniter Flame Rod, Spring Clip
