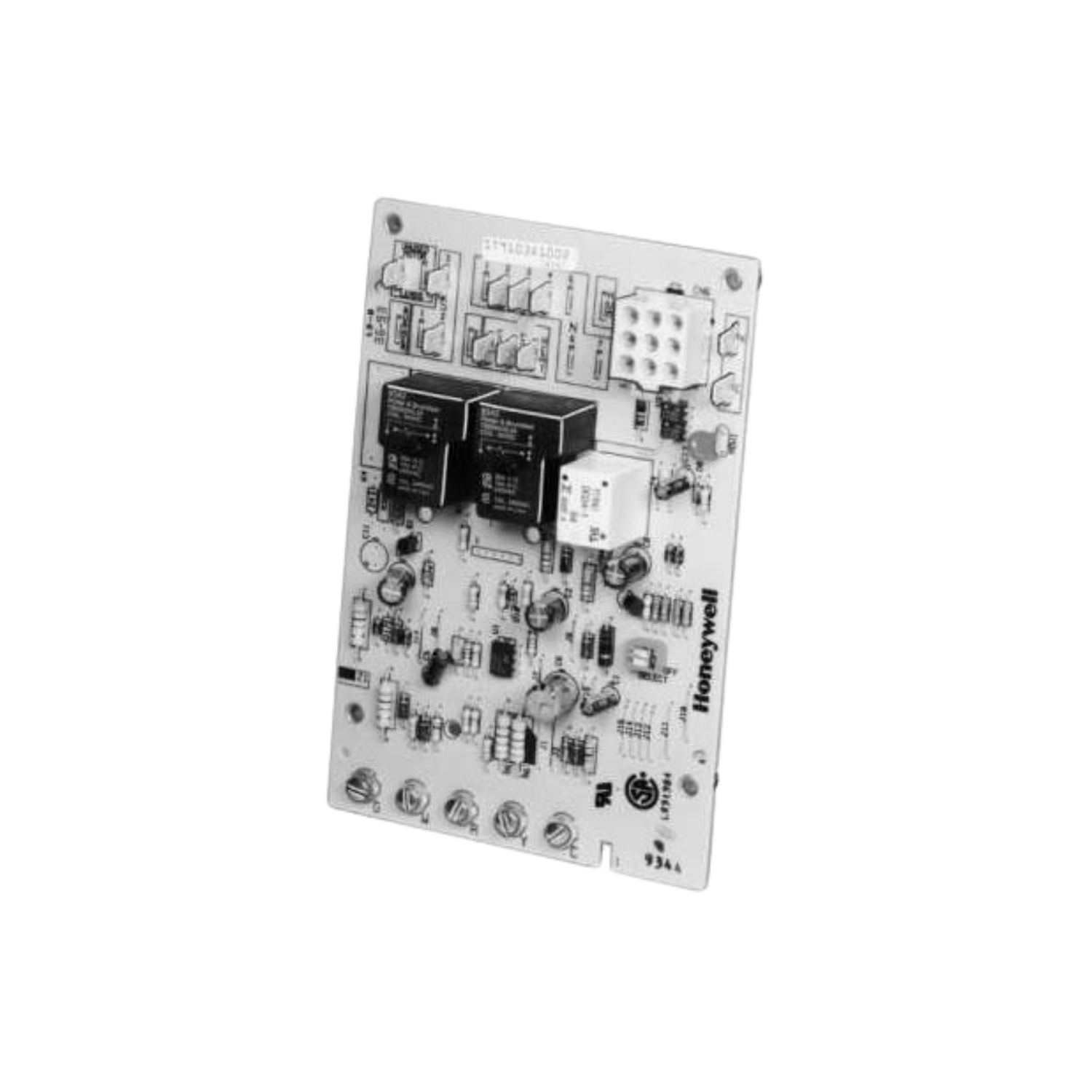

Honeywell ST9103A1002 Electronic Oil Fan Timer Control

Features:

Central Appliance Wiring Point Simplifies Service
Fixed or Field Adjustable Heat Fan on Delay
Controls Two Speed Circulating Fan
Isolated Line Voltage Limit Interface and Isolated Relay Connection to Oil Primary

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: ST9103A1002
Product Type: Furnace Electronic Fan Timer
Number of Circuits: 1
Voltage Rating: 18 to 30 VAC @ 50/60 Hz
Operating Temperature: -40 to 150 Deg F
ON Delay Time: 45 Second (Fixed/Heat Fan)
OFF Delay Time: 60/90/120/150 Second (Adjustable/Heat Fan)
Dimensions: 6" x 7.9" x 2.7"
Weight: 0.62 lb.
