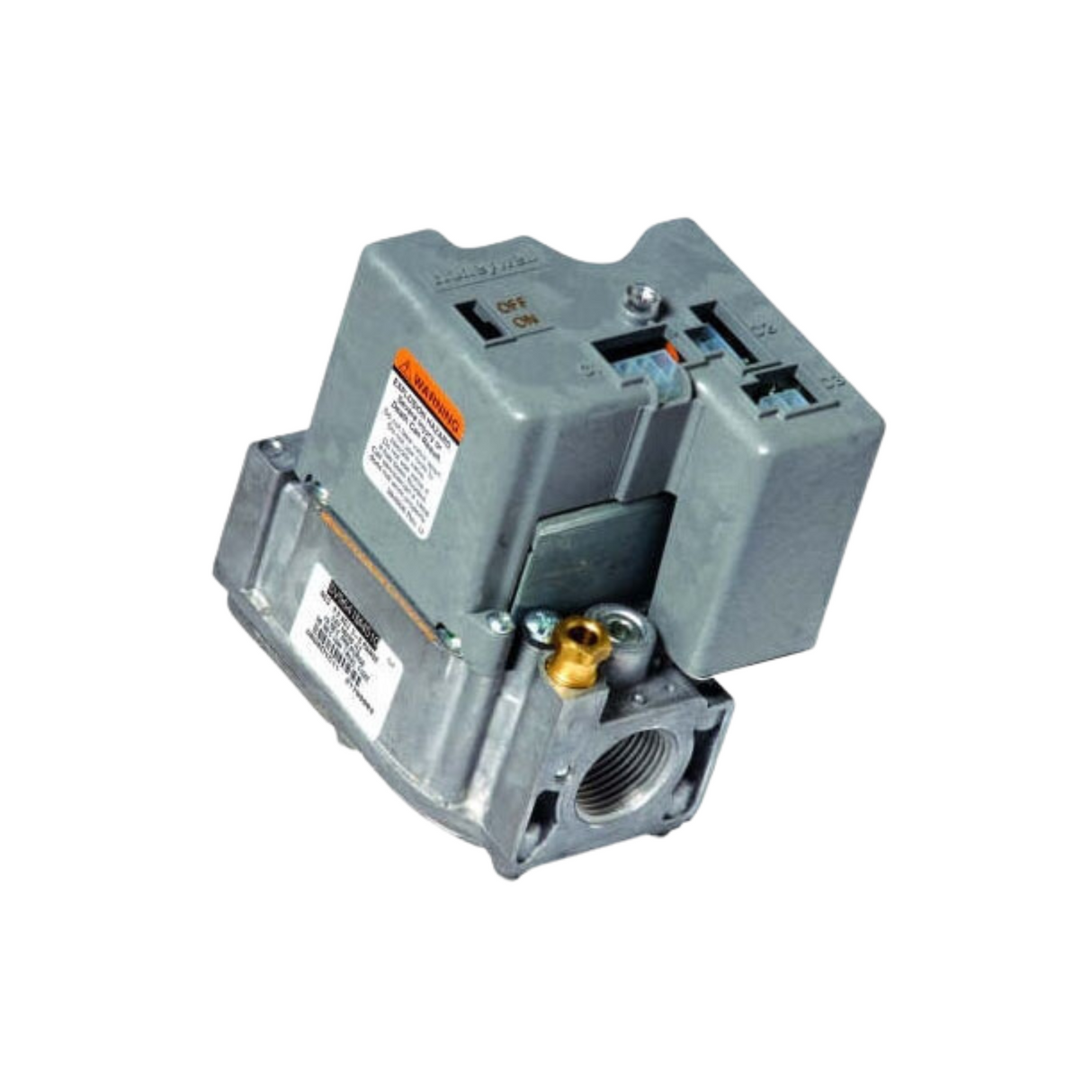

Honeywell SV9541Q2561 24V 1/2" X 1/2" Two Stage Intermittent Hot Sur

Features:

These Controls Communicate Directly with an Electronic Fan Timer (St9160 Electronic Fan Timer for Single Stage Applications
St9162 Electronic Fan Timer for 2-Stage Applications) in Typical Forced Warm Air Furnace Applications
It Can Directly Interface with the Appropriate Power Supplies and a System Thermostat for Additional Appliance Applications
When Controlled Directly by a Thermostat, These Controls Do Not Provide a Postpurge Function, Because Power to the Control is Removed When the Thermostat Call for Heat Ends

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: SV9541Q2561
Product Type: Gas Valve
Nominal Size: 1/2"
End Connection: Threaded x Threaded
End to End Distance: 3.2"
Input Supply Rating: 24 VAC @ 50/60 Hz
Temperature Rating: -40 to 175 Degrees F
Pressure Rating: 1/2 PSI
Ignition Type: Intermittent Hot Surface Pilot
Flame Failure Response Time: 1.6 Second at 3 Microamp
Ignition Trial Time: 90 Second
Prepurge Time: 15 Second
Capacity: 20000 to 200000 BTU/Hour
Pressure Tapping: 1/8" Threaded
Pressure Regulator Set Point: 3.2" WC
Mounting: 0 to 90 Degree Vertical Installation
Dimensions: 6.65" x 5.55" x 3.6"
Weight: 2.5 lb.
Includes: Natural to Liquid Propane Conversion Kit
Application Gas Fired Appliance, Residential Combustion Control, Rooftop Furnace, Boiler, Unit/Infrared/Water Heater and Commercial Cooking Appliance
