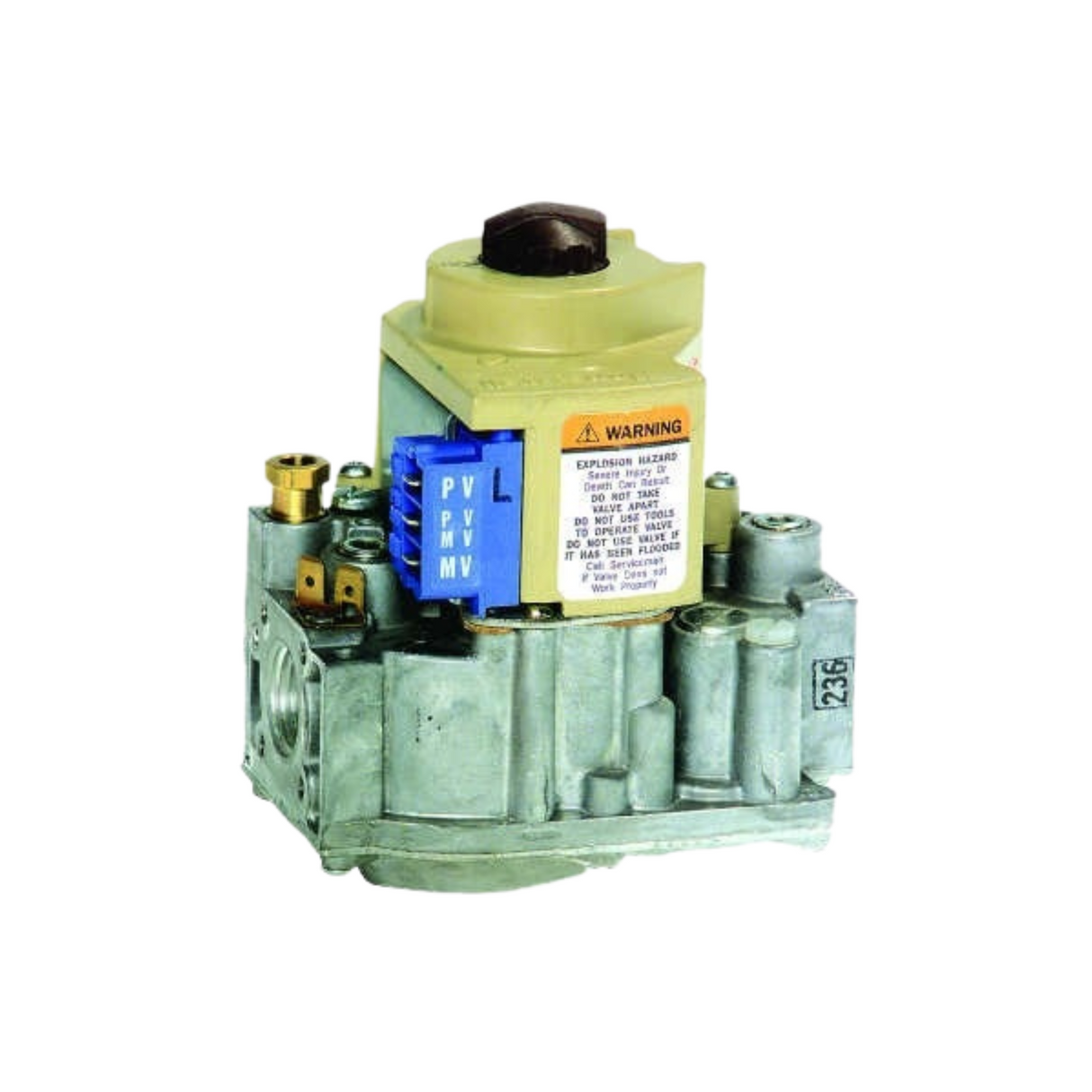

Honeywell VR8204A2076 24V Intermittent Pilot Natural Gas Valve 1/2" X

Features:

Combination Gas Controls for Use in 24 Volt AC, 60 Hertz, Gas-Fired, Standing Pilot Appliances with Capacities from 30 to 300 CFH
Controls Include Safety Shut-Off, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment
Use with S86F/H, S860D, S8600F/H, S8610, S90A/B Control Modules
Compact Size
Provide Two Automatic Valves
Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes When Call for Heat Ends
Diaphragm Operated Second Automatic Valve Opens Under Control of Regulator
Closes If Gas or Power Supply is Interrupted
Meets Codes Requiring Dual Safety Shut-Off
Natural to LP and LP to Natural Conversion Kits Available for Standard and Slow Opening Gas Valves
All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control
Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure
Compatible with ECO Connector
On/Off Lighting Sequence

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: VR8204A2076
Product Type: Gas Control Valve
Nominal Size: 1/2"
End Connection: Threaded x Threaded
End to End Distance: 4 1/8"
Supply Connection: 1/4" Quick Connect Male Terminal
Input Supply Rating: 24 VAC @ 60 Hz
Temperature Rating: 0 to 175 Degrees F
Pressure Rating: 1/2 PSI
Fuel Type: Natural
Flow Capacity: 20000 to 200000 BTU/Hour
Pressure Tapping: 1/8" Threaded with Plug
Pressure Regulator Set Point: 3.5" WC
Dimensions: 5.05" x 5.9" x 3.2"
Weight: 2.06 lb.
Includes: Natural to Liquid Propane Conversion Kit, (1) 3/4 Inch x 1/2 Inch Reducer Bushing, (1) 3/4 Inch Straight Flange
