Honeywell  |  SKU: WT8840B1000

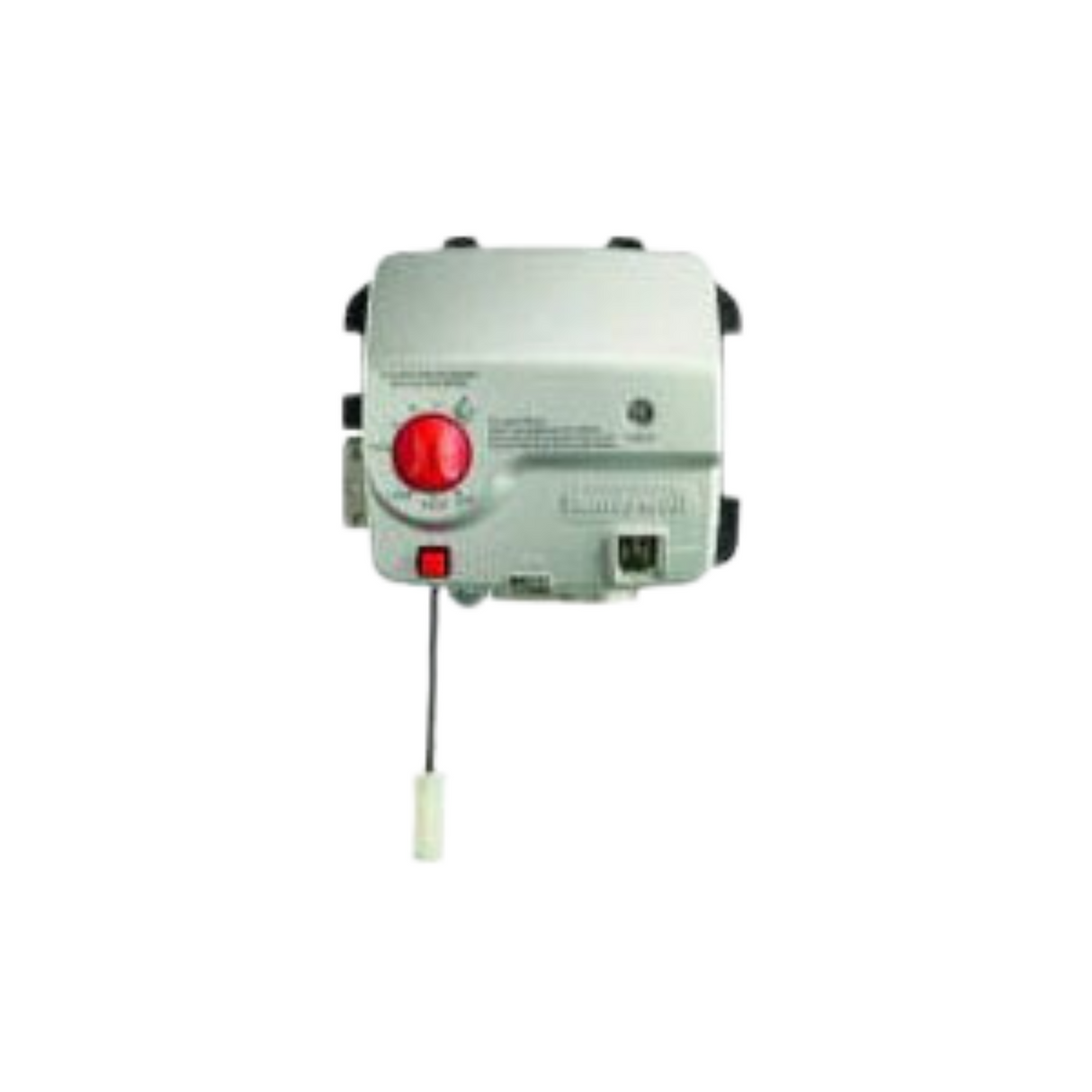

Honeywell WT8840B1000 Water Heater Gas Valve, Standing Pilot With Pie

$243.60

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Features:

WT8840 Water Heater Control is Designed for Use in Standing Pilot Applications Using an Immersion Well for Water Temperature Sensing
The WT8840 is Powered from a Thermopile Heated by the Standing Pilot Flame
Temperature Control as Well as Water Temperature Limit Function

Specifications:

Manufacturer: Honeywell
Manufacturer Part Number: WT8840B1000
Product Type: Water Heater Control
Port Connection: 1/2" Threaded x 1/2" Inverted Flare
Input Supply Rating: 350 to 850 mV DC
Temperature Rating: 0 to 150 Degrees F
Pressure Rating: 5" WC
Media Handled: Gas
Tank Insulation Size: 1"
Ambient Temperature: 32 to 150 Degrees F, -40 to 150 Degrees F (Storage), 55 Degrees F to 155 Degrees F Valve (Set Point)
Mounting Position: Upright
Capacity: 30 Ft per 3 Hour to 75 Ft per 3 Hour
Humidity: 95% (Non-Condensing) at 104 Degrees F
Dimensions: 7.9" x 6.1" x 5.4"
Weight: 2.17 lb.
Includes: Integrated NTC Temperature Sensor
