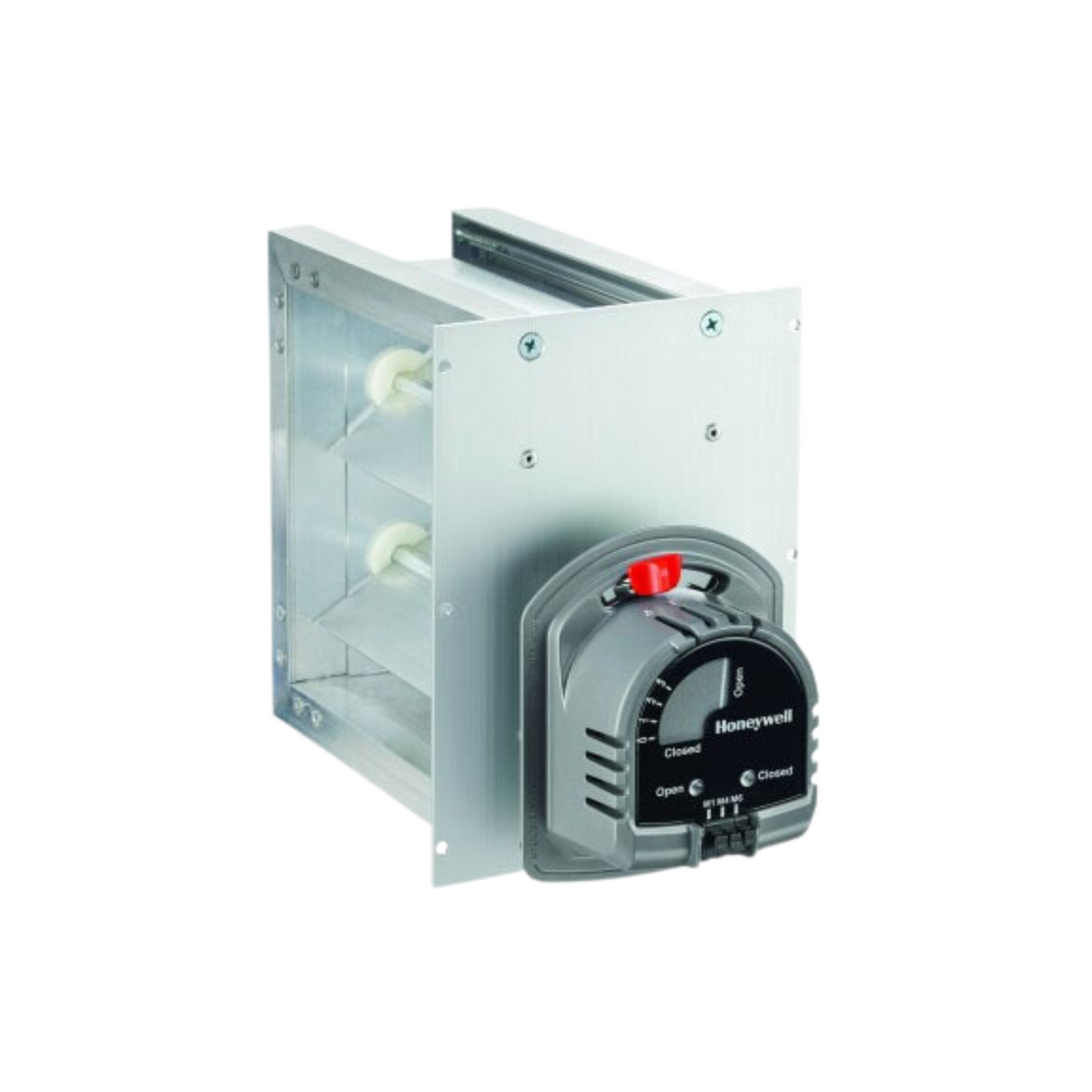

Honeywell ZD10X26TZ 24V Automatic Rectangular Damper 10X26 Inch
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Features:
Mechanical Visual Position Indicator for Damper Status
Solid Construction Using Extruded Aluminum Frame and Blades
Parallel Blade Design for Low Leakage Performance
Simple, Easy to Wire, 2-Wire Installation
Reliable, Strong
Damper Can be Installed in any Orientation (Mounting Side Can be on Either the Bottom or the Side of the Duct)
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: ZD10X26TZ
Product Type: Zone Control Damper
Duct Size: 10" x 26"
Blade Material: Extruded Aluminum
Motor Rating: 24 VAC @ 60 Hz 8 Vp
Motor Torque Rating: 71 Inch-Ounce
Temperature Rating: 40 to 140 Degrees F
Pressure Drop: Less than 0.0329" WC @ 800 Ft per Minute
Motor Angular Rotation: 90 Degrees
Maximum Static Pressure Rating: 1" WC
Motor Mounting Type: Bottom
Motor Type Power: Closed, Spring Open
Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
Dimensions: 27.2" x 17.1" x 6.95"
Weight: 10.22 lb.
Includes: Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation
