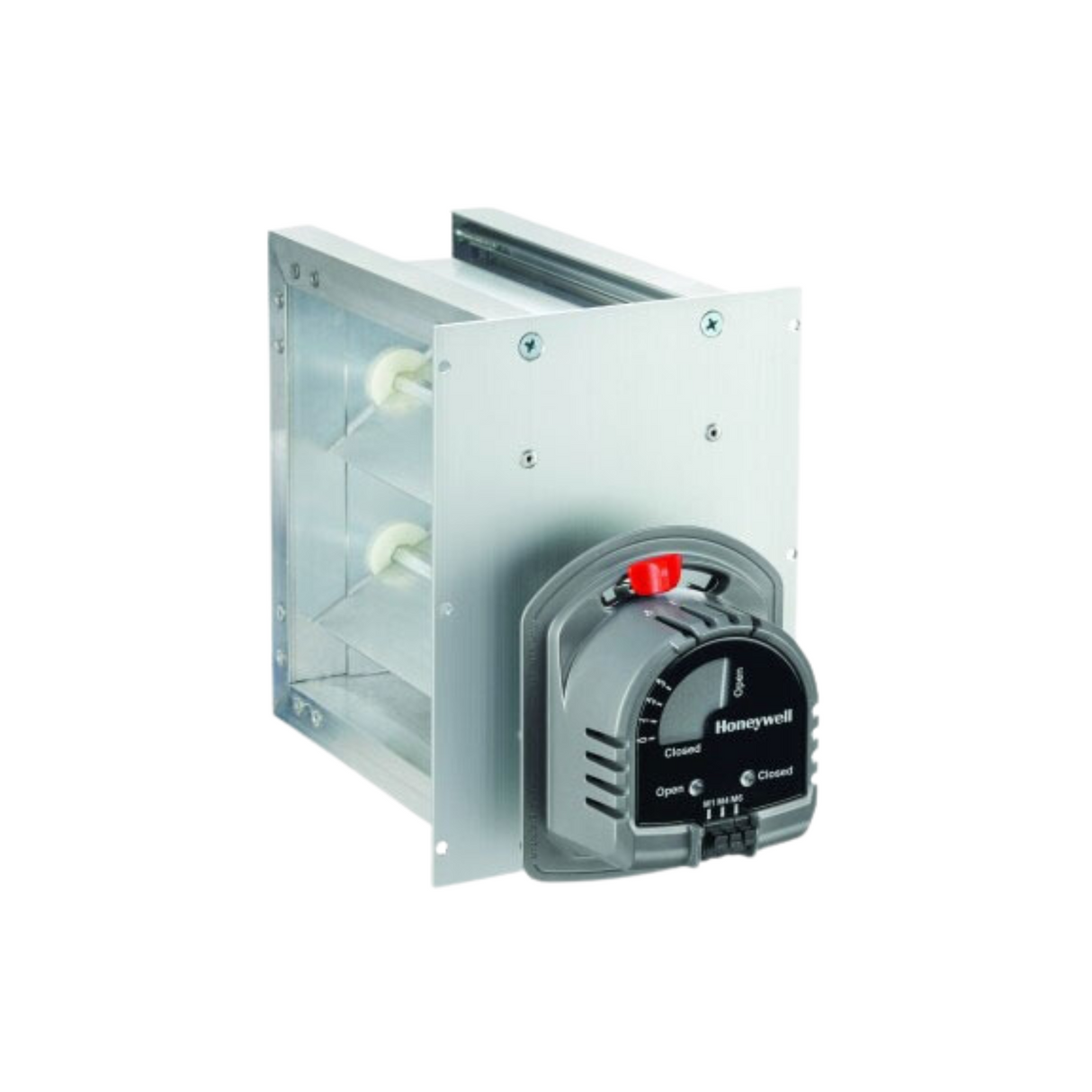

Honeywell ZD12X20TZ 24V Automatic Rectangular Damper 12X20 Inch
Honeywell ZD12X20TZ 24V Automatic Rectangular Damper 12X20 Inch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Features:
Mechanical Visual Position Indicator for Damper Status
Solid Construction Using Extruded Aluminum Frame and Blades
Parallel Blade Design for Low Leakage Performance
Simple, Easy to Wire, 2-Wire Installation
Reliable, Strong
Damper Can be Installed in any Orientation (Mounting Side Can be on Either the Bottom or the Side of the Duct)
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: ZD12X20TZ
Product Type: Zone Control Damper
Duct Size: 12" x 20"
Blade Material: Extruded Aluminum
Motor Rating: 24 VAC @ 60 Hz 8 Vp
Motor Torque Rating: 71 Inch-Ounce
Temperature Rating: 40 to 140 Degrees F
Pressure Drop: Less than 0.0329" WC @ 800 Ft per Minute
Motor Angular Rotation: 90 Degrees
Maximum Static Pressure Rating: 1" WC
Motor Mounting Type: Bottom
Motor Type Power: Closed, Spring Open
Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
Dimensions: 24.5" x 20.5" x 7"
Weight: 9.5 lb.
Includes: Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation
