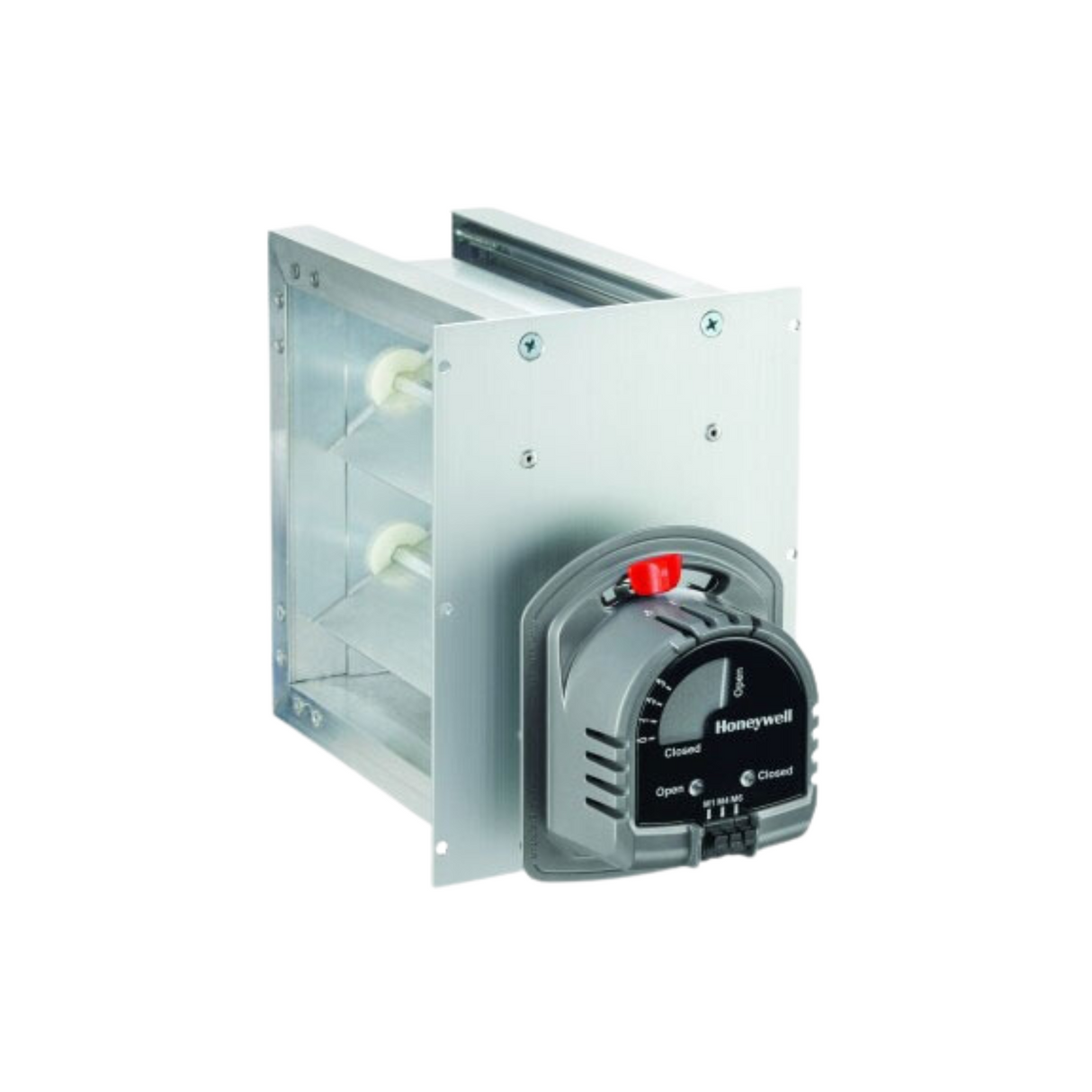

Honeywell ZD8X28TZ - 8" Wide X 28" High Parallel Blade Zone Damper with 24Vac, Power Closed/Spring Return Open, Two Position, Synchronous Motor mounted on 28" Side
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Honeywell ZD8X28TZ - 8" Wide X 28" High Parallel Blade Zo...
Description
Description
Features:
Mechanical Visual Position Indicator for Damper Status
Solid Construction Using Extruded Aluminum Frame and Blades
Parallel Blade Design for Low Leakage Performance
Simple, Easy to Wire, 2-Wire Installation
Reliable, Strong
Damper Can be Installed in any Orientation (Mounting Side Can be on Either the Bottom or the Side of the Duct)
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: ZD8X28TZ
Product Type: Zone Control Damper
Duct Size: 8" x 28"
Blade Material: Extruded Aluminum
Motor Rating: 24 VAC @ 60 Hz 8 Vp
Motor Torque Rating: 71 Inch-Ounce
Temperature Rating: 40 to 140 Degrees F
Pressure Drop: Less than 0.0329" WC @ 800 Ft per Minute
Motor Angular Rotation: 90 Degrees
Maximum Static Pressure Rating: 1" WC
Motor Mounting Type: Side
Motor Type Power: Closed, Spring Open
Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
Dimensions: 16.5" x 28.5" x 7"
Weight: 9.5 lb.
Includes: Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation
