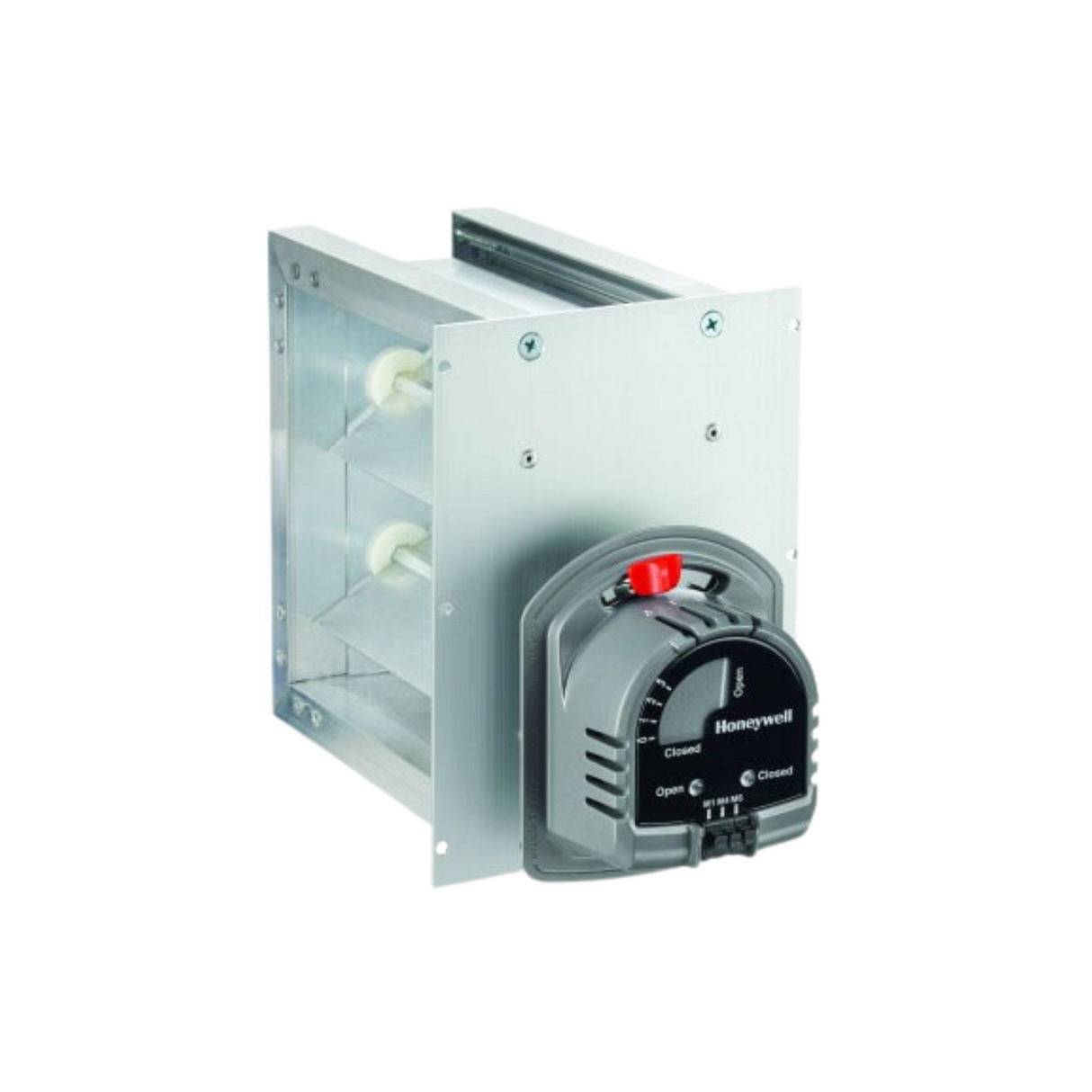

Honeywell ZD8X8TZ - 8" Wide X 8" High Parallel Blade Zone Damper with 24Vac, Power Closed/Spring Return Open, Two Position, Synchronous Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Honeywell ZD8X8TZ - 8" Wide X 8" High Parallel Blade Zone...
Description
Description
Features:
Mechanical Visual Position Indicator for Damper Status
Solid Construction Using Extruded Aluminum Frame and Blades
Parallel Blade Design for Low Leakage Performance
Simple, Easy to Wire, 2-Wire Installation
Reliable, Strong
Damper Can be Installed in any Orientation (Mounting Side Can be on Either the Bottom or the Side of the Duct)
Specifications:
Manufacturer: Honeywell
Manufacturer Part Number: ZD8X8TZ
Product Type: Zone Control Damper
Duct Size: 8" x 8"
Blade Material: Extruded Aluminum
Motor Rating: 24 VAC @ 60 Hz 8 Vp
Motor Torque Rating: 71 Inch-Ounce
Temperature Rating: 40 to 140 Degrees F
Pressure Drop: Less than 0.0329" WC @ 800 Ft per Minute
Motor Angular Rotation: 90 Degrees
Maximum Static Pressure Rating: 1" WC
Motor Mounting Type: Side
Motor Type Power: Closed, Spring Open
Motor Timing: 30 Second (Power Open)/10 Second (Spring Return)
Dimensions: 8.7" x 17.25" x 7.1"
Weight: 4.55 lb.
Includes: Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation
