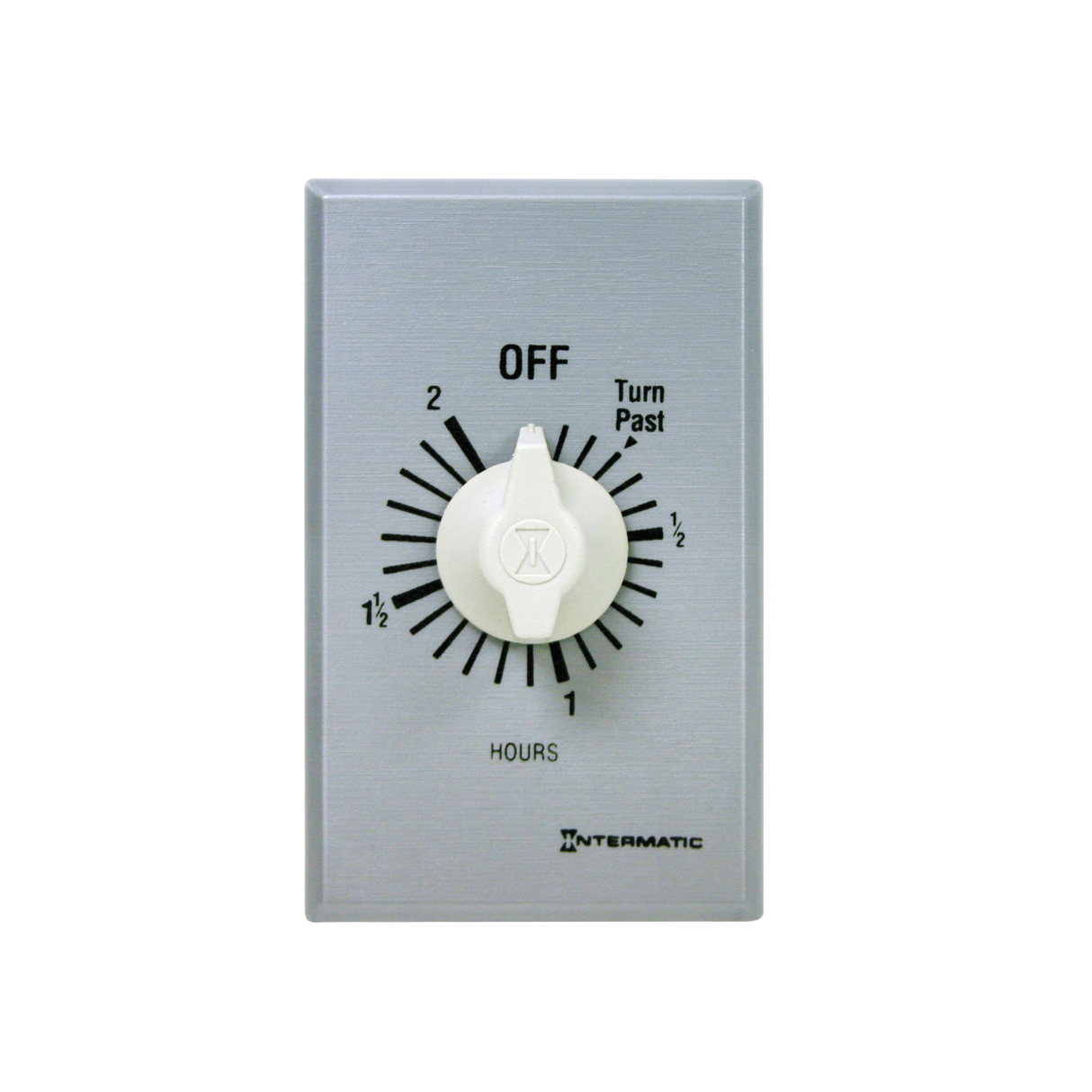

Intermatic FF2H 125-277 VAC 50/60 Hz 2-Hour SPST Spring Wound Countdown Timer
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Intermatic FF2H 125-277 VAC 50/60 Hz 2-Hour SPST Spring Wound Count...
Description
Description
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features:
2-Hour timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Brushed metal look switch plate meets NEC requirements (plate is included)
Incandescent/fluorescent/CFL/LED compatible
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: FF2H
Product Type: Spring Wound Countdown Timer
Color: Silver
Voltage Rating: 125-277 VAC
Frequency Rating: 50/60 Hz
Motor Load Ratings Range: 1 HP, 125 VAC; 2 HP, 250 VAC
Resistive Heater Load Rating: 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Tungsten Incandescent Load Rating: 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
Countdown Time: 2 Hours
Switch Type: SPST
Operating Temperature: 40 to 120 Degrees F
Wall Plate Configurations: Single-Gang, Multi-Gang
Dimension: 3.0" x 6.0" x 2.15"
Weight: 2.0 lb.
