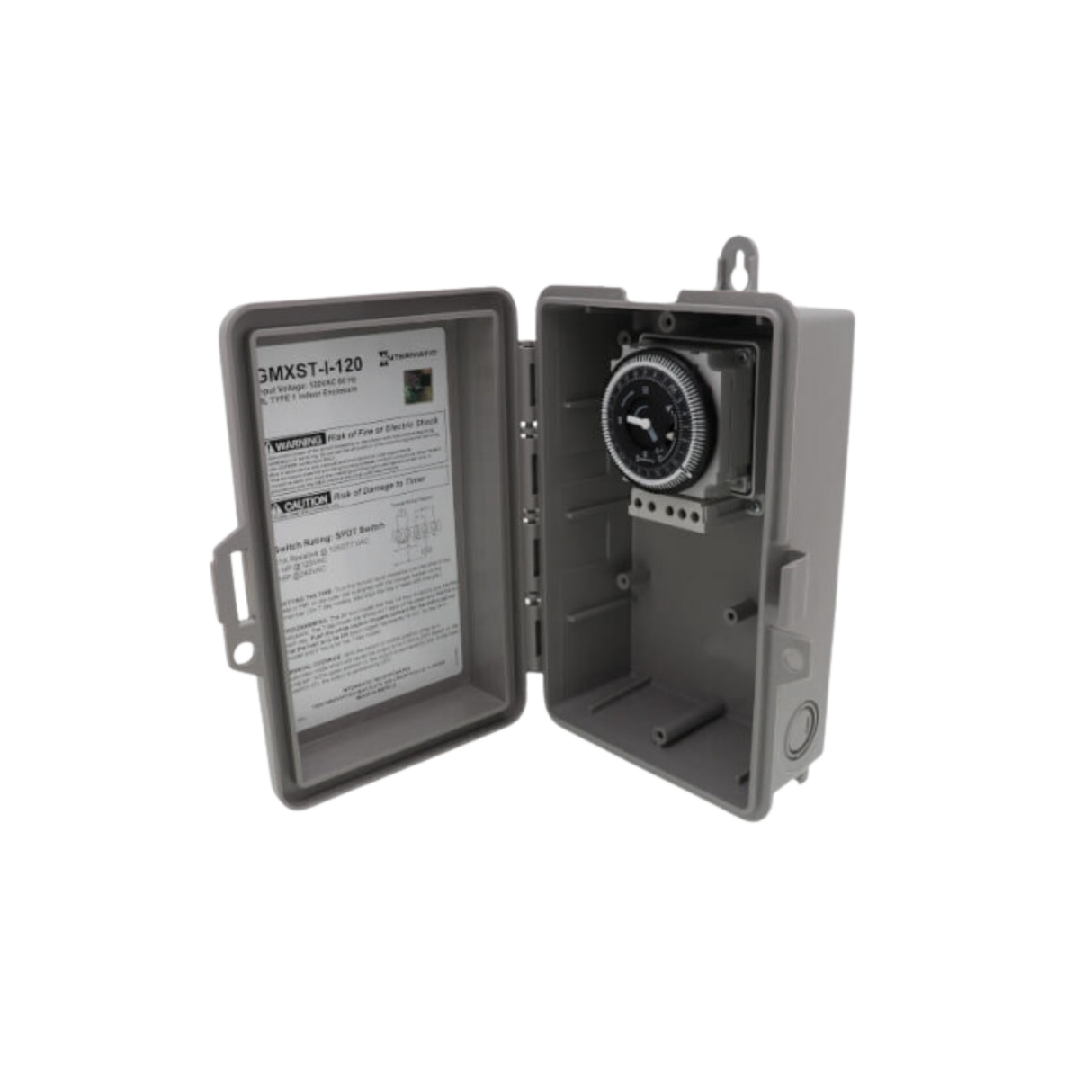

Intermatic GMXST-I-120 120 V 21 A 24-Hour SPDT Synchronous Electromechanical Timer

The GMX series time switches are universal mechanical time switches. They are a low cost alternative for applications that do not require more than 21 A or 2 HP @ 240 VAC. The timer is mounted in a UL Type 1 indoor or Type 3R outdoor plastic enclosure. The GMX is a light-duty commercial time switch ideal for 24, 120 or 208/240 VAC single-phase general applications.

Features:

21 A SPDT Switch
UL Type 1 indoor or Type 3R outdoor plastic enclosure
Manual 3-way override
Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
True clock face, easy to set
Finger-safe terminals
Enclosure provides space for field-added contactor or other accessories

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: GMXST-I-120
Product Type: Electromechanical Timer
Voltage Rating: 120 V
Current Rating: 21 A
Motor Load Ratings Range: 1 HP, 120 VAC; 2 HP, 250 VAC
Resistive Load Rating: 21 A, 250 VAC, 60 Hz
Tungsten (NO) Load Rating: 1350 W, 120 VAC, 60 Hz
Shortest Switching Time (ON/OFF): 15 Minute
Minimum Cycle Time: 15 Minute
Maximum Cycle Time: 24 Hour
Timing Interval: 15 Minute
Switch Type: SPDT
Clock Drive Type: Synchronous
Operating Humidity: 0 to 95%, Non-condensing
Operating Temperature Range: -40 to 185 Degrees F
Wiring Option: Screw terminal accepts up to #12 AWG wire
Mounting Options: Wall
Dimensions: 7.2" x 10.65" x 4.25"
Weight: 6.0 lb.
