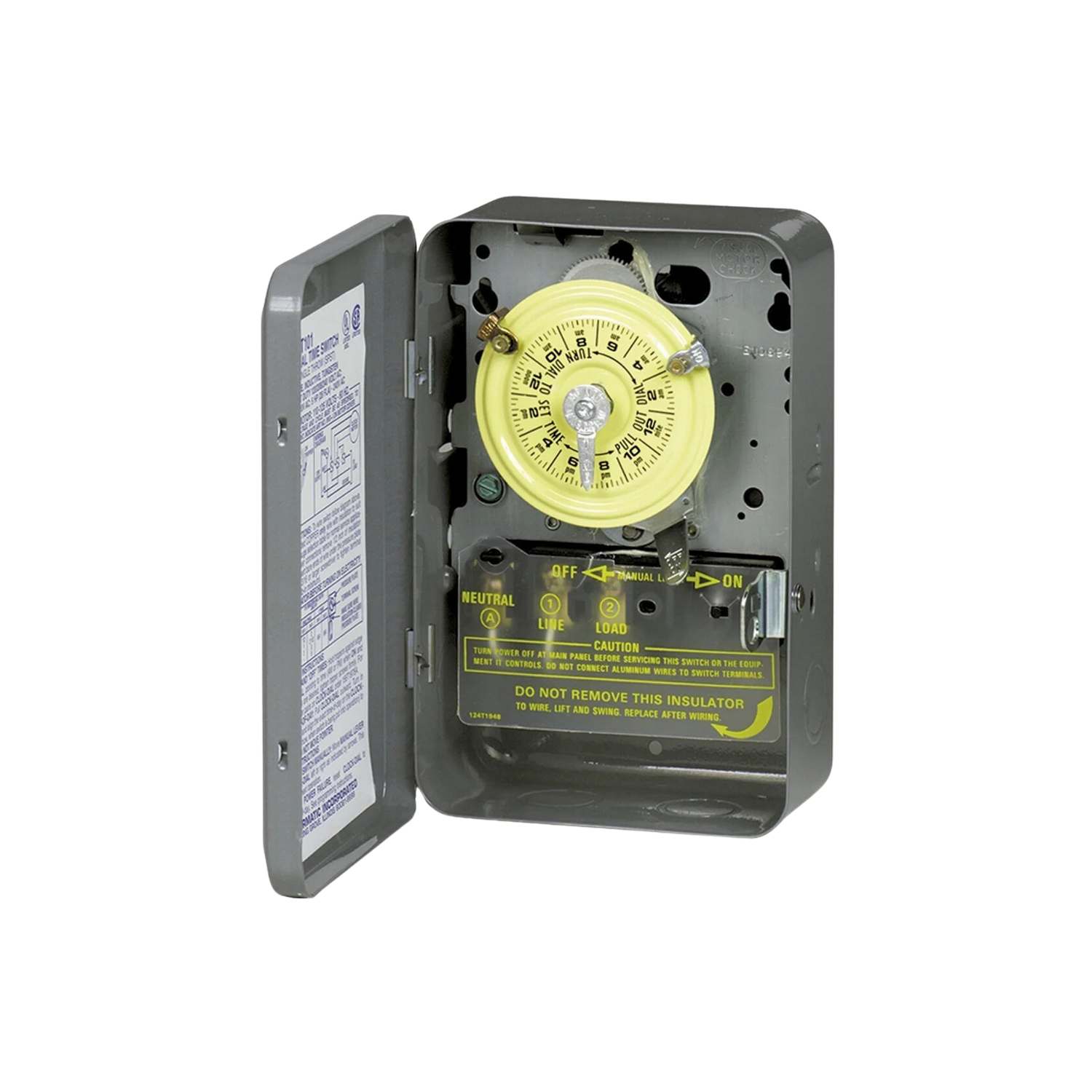

Intermatic T1471BR 120 VAC 60 Hz 24-Hour 4-SPST Mechanical Time Switch
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features:
Controls loads up to 40 A per pole
Direct 24-hour control of most loads
Up to 10 ON/OFF operations each day
Minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper and three day-skipper screws included
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: T1471BR
Product Type: Mechanical Time Switch
Voltage Rating: 120 VAC
Frequency Rating: 60 Hz
Motor Single Phase Ranges: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Motor Three Phase Ranges: 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Heater Load Rating: 40 A, 120-480 VAC, 60 Hz
Tungsten (NO) Load Rating: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Pilot Duty Load Ratings Range: 1000 VA, 120-277 VAC, 60 Hz
Inductive Load Ratings Range: 40 A, 120-277 VAC, 60 Hz
Electronic Ballast Load Ratings Range: 16 A, 277 VAC, 60 Hz
Operating Temperature Range: -40 to 130 Degrees F
Switch Type: 4-SPST
Operation Mode: 24 hour
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
No. of Circuit: 1
Wiring Configuration: Terminals

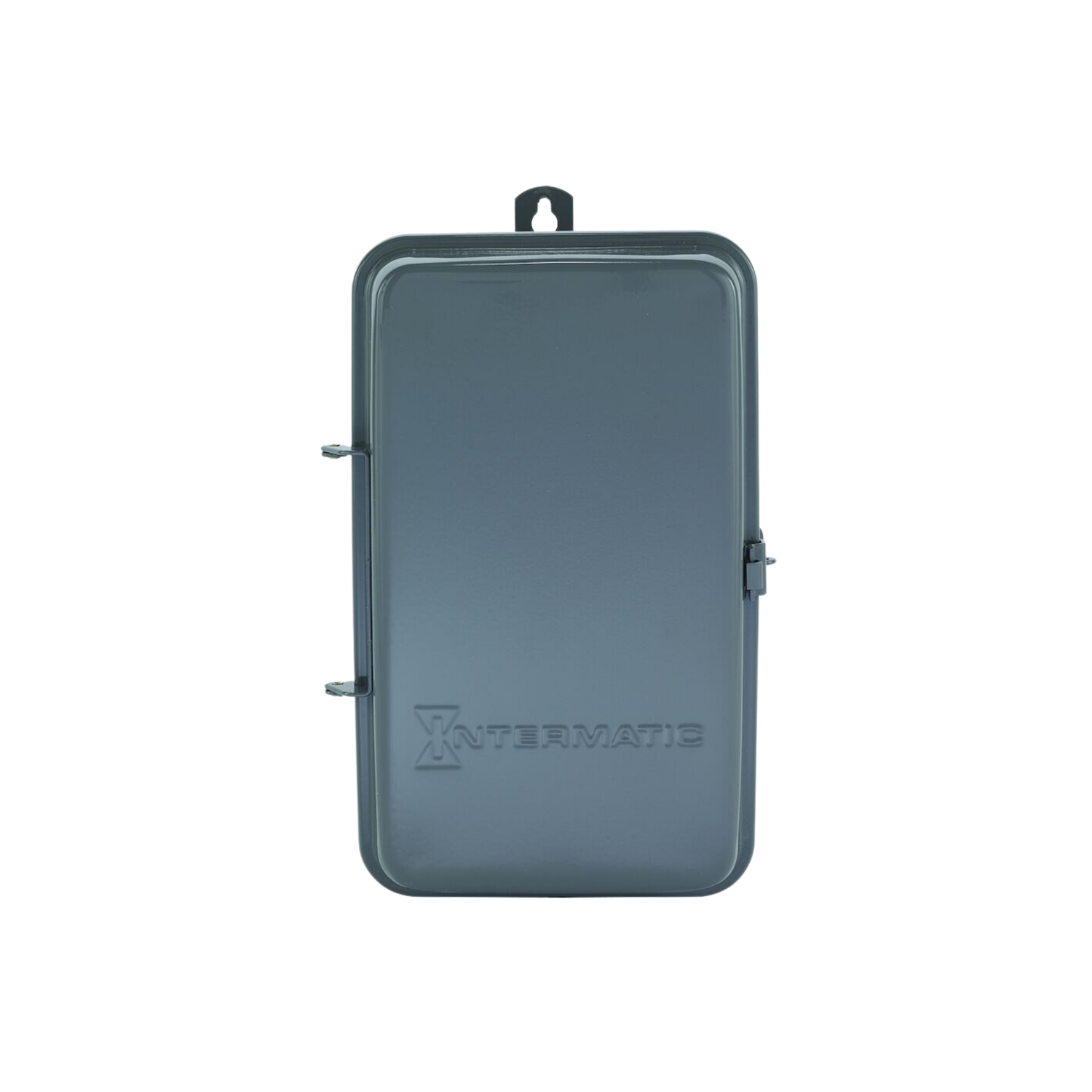

Enclosure: Outdoor type 3R metal
Dimensions: 6.75" x 10.3" x 3.8"
Weight: 5.0 lb.
