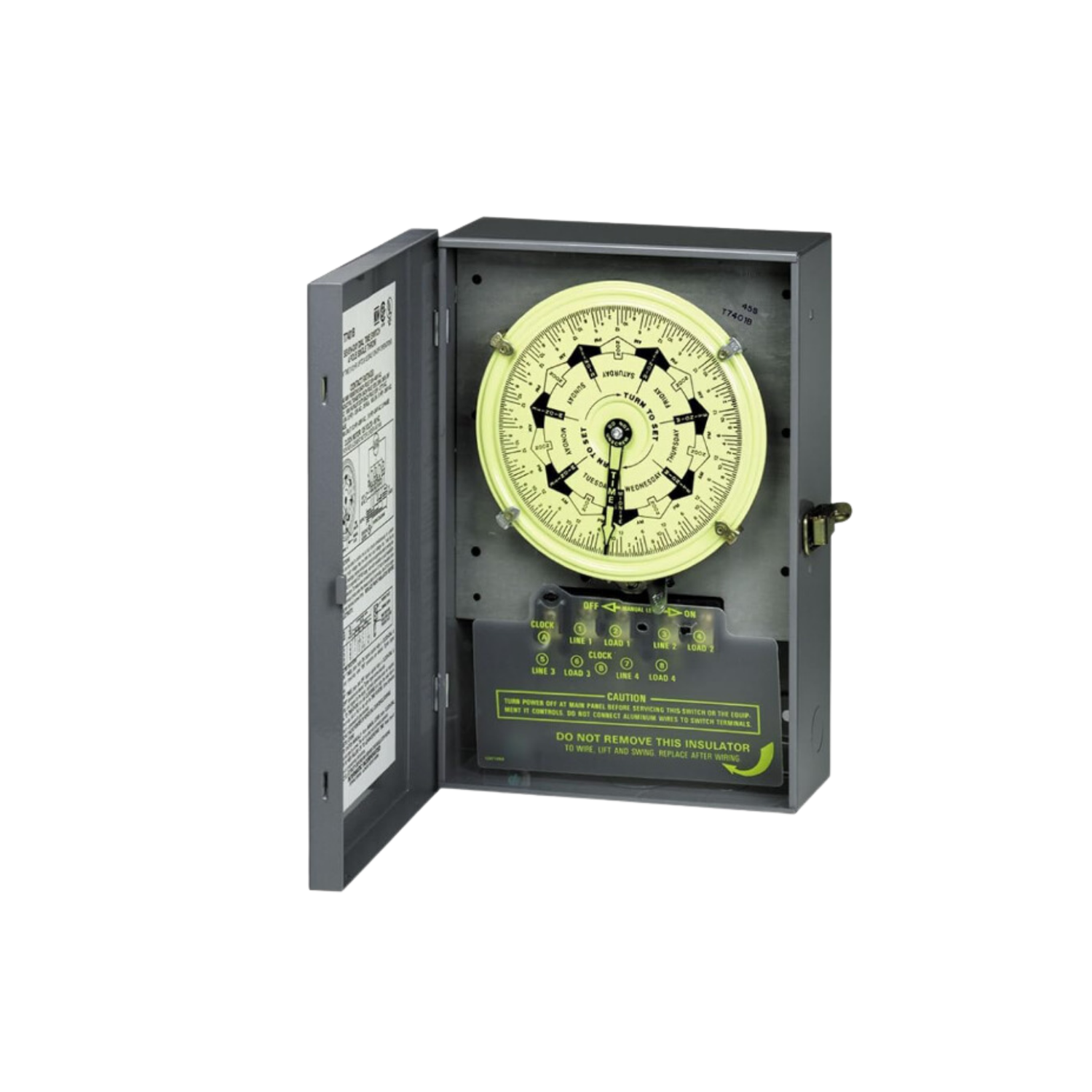

Intermatic T7802B 208-277 VAC 60 Hz 7-Day 2 NO, 2 NC Mechanical Time Switch

These 7-Day Mechanical Time Switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Features:

Different ON/OFF programs each day of the week
True 7-day load control with minimum ON/OFF time of 3 1Γüä2 hours
Separate clock motor terminals for switching loads not on line voltage
Carry-over automatically rewinds when power resumes
Minimum of 16-hour carry-over for maintaining preset schedules during power failures
Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: T7802B
Product Type: Mechanical Time Switch
Voltage Rating: 208-277 VAC
Frequency Rating: 60 Hz
Motor Load Ratings Range: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Heater Load Rating: 40 A, 120-480 VAC, 60 Hz
Tungsten (NO) Load Rating: 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Pilot Duty Load Ratings Range: 1000 VA, 120-277 VAC, Per Pole, 60 Hz
Inductive Load Ratings Range: 40 A, 120-277 VAC, 60 Hz
Electronic Ballast Load Ratings Range: 16 A, 277 VAC, 60 Hz
Operating Temperature Range: -40 to 130 Degrees F
Switch Type: NEMA 2 Normally Open, 2 Normally Closed
Operation Mode: 7 Day
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
No. of Circuit: 2
Wiring Configuration: Terminals
Enclosure: Indoor type 1 metal
Dimensions: 10.7" x 13.45" x 4.2"
Weight: 11.0 lb.
