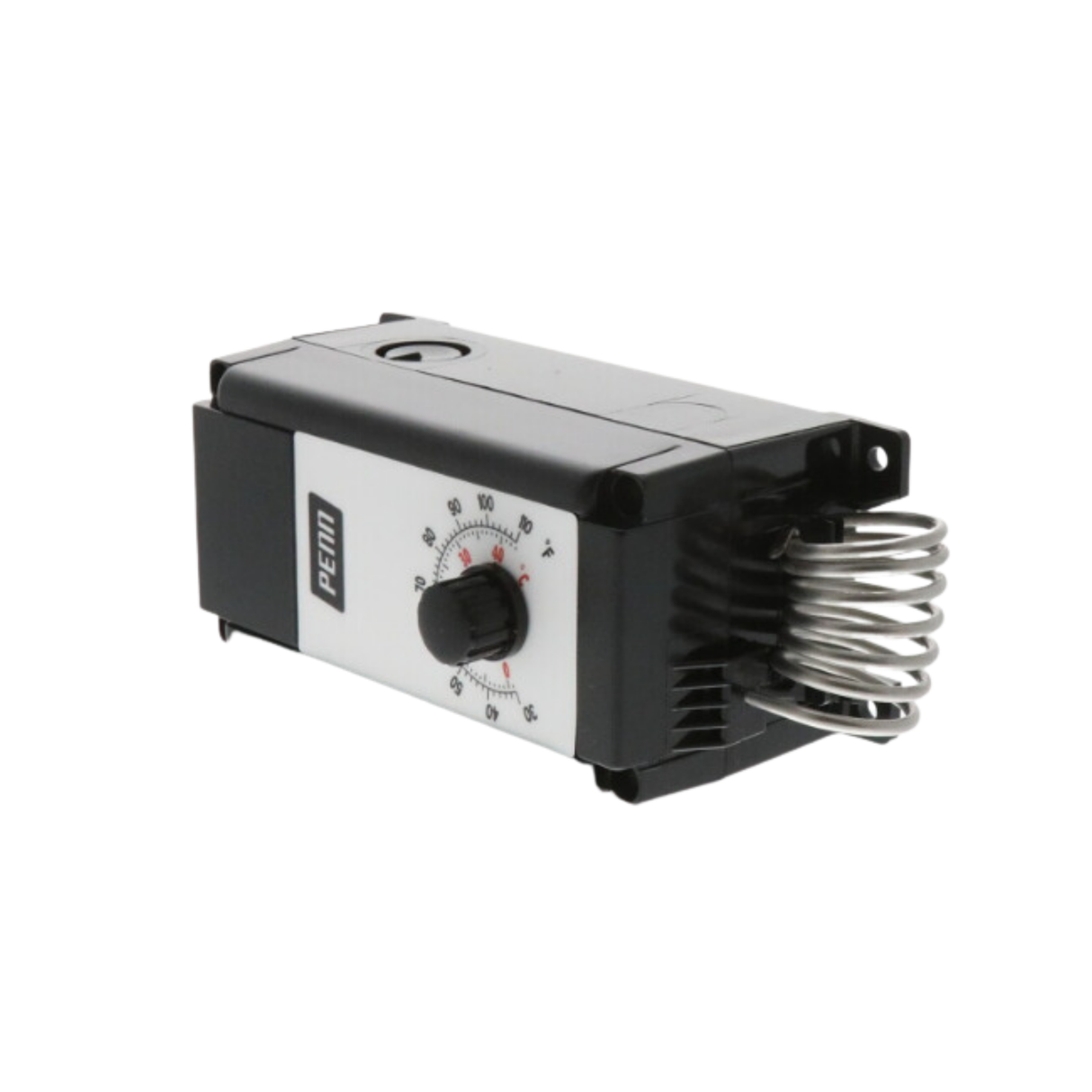

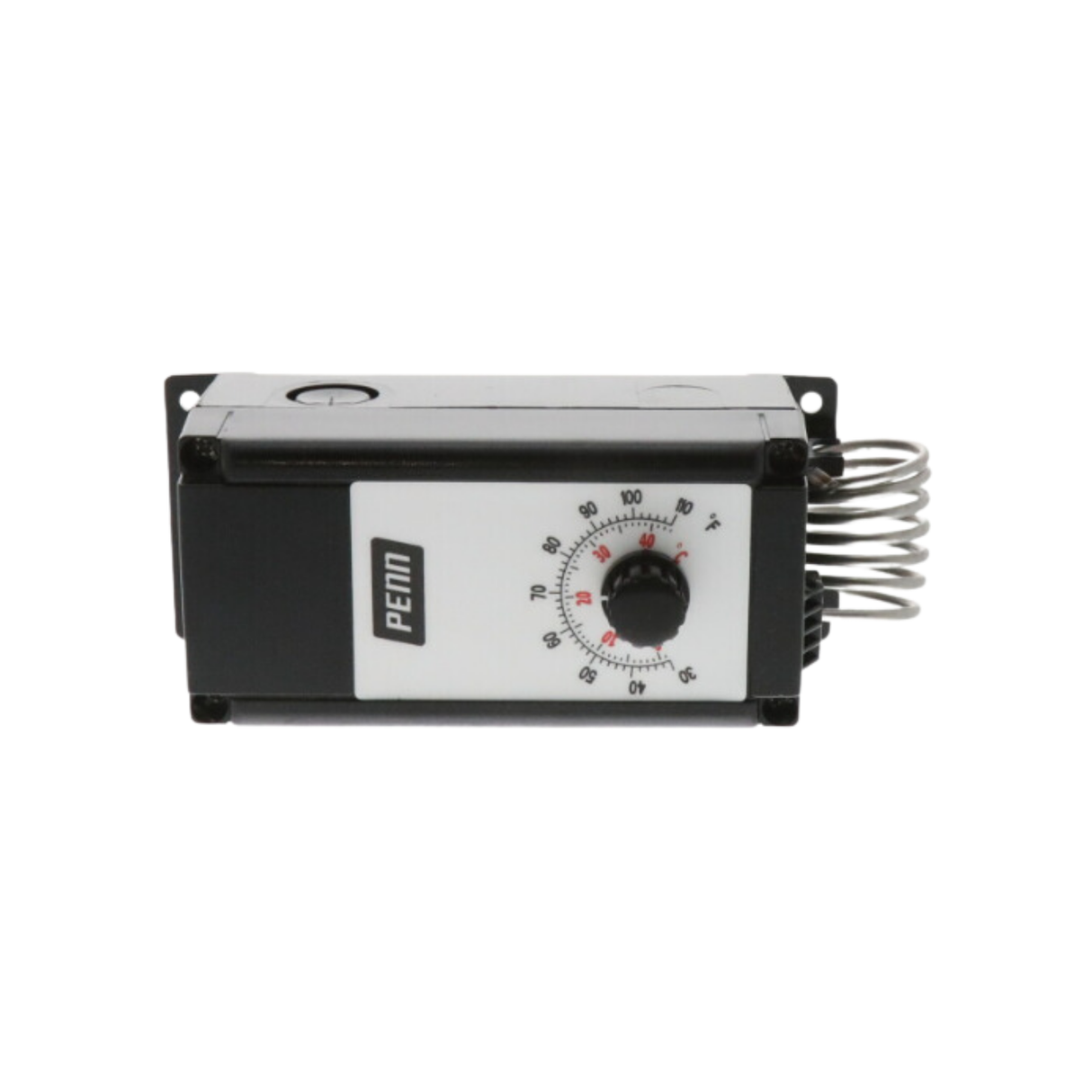

Johnson Controls A19PRC-1 24 VAC to 277 VAC, SPDT, Auto-Reset, Temperature Control with Knob Range Adjuster and NEMA 4X Enclosure
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Johnson Controls A19PRC-1 24 VAC to 277 VAC, SPDT, Auto-Reset, Temp...
Specifications:
Manufacturer: Johnson Controls
Manufacturer Part Number: A19PRC-1
Product Type: Temperature Control
Type: Mechanical
Voltage: 24 VAC to 277 VAC
Switch Type: Single-Pole, Double-Throw
Reset Type: Auto
Set-Point Range: 30 Degree Fahrenheit to 110 Degree Fahrenheit (3 to 12 Degree Fahrenheit Adjustable Differential)
Coil Sensing Bulb Diameter: 1 3/8" x 2 1/4"
Dimension: 6.75" x 10.35" x 3.6"
Weight: 1.23 lb
Includes: Knob Range Adjuster and NEMA 4X Enclosure
Note: Agricultural/Industrial
