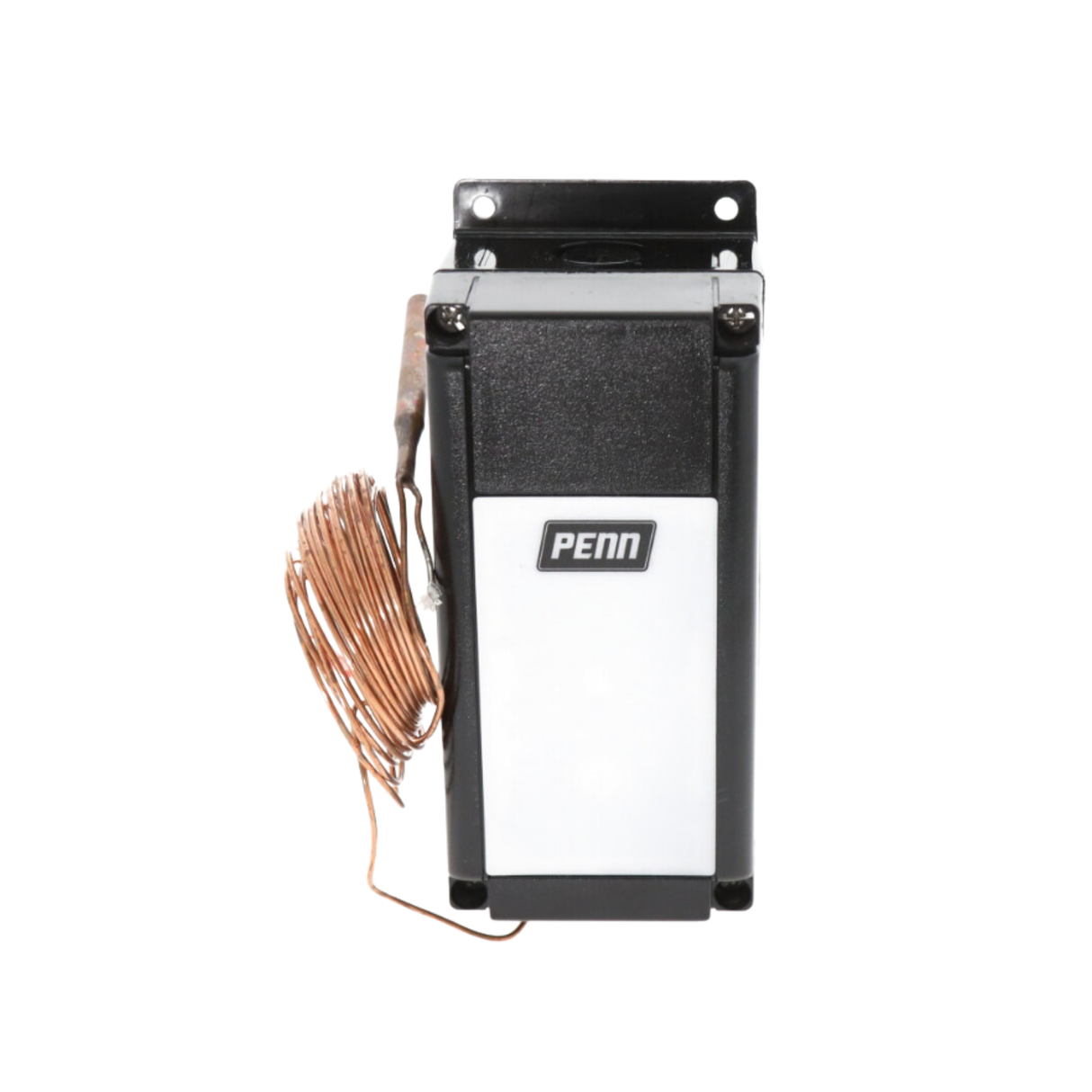

Johnson Controls A19QSC-1 24 VAC to 277 VAC, SPDT, Auto-Reset, Remote Bulb Temperature Control with Concealed Screwdriver Slot Range Adjuster and NEMA 4X Watertight Enclosure
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Specifications:
Manufacturer: Johnson Controls
Manufacturer Part Number: A19QSC-1
Product Type: Remote Bulb Temperature Control
Type: Mechanical
Reset Type: Auto
Voltage: 24 VAC to 277 VAC
Switch Type: Single-Pole, Double-Throw
Set-Point Range: 0 to 150 Degree Fahrenheit (5 Degree Fahrenheit Fixed Differential)
Capillary Length: 10'
Sensing Bulb Diameter: 3/10" x 2 1/2"
Dimension: 4.15" x 10.45" x 6.4"
Weight: 1.35 lb
Includes: Concealed Screwdriver Slot Range Adjuster and NEMA 4X Watertight Enclosure
