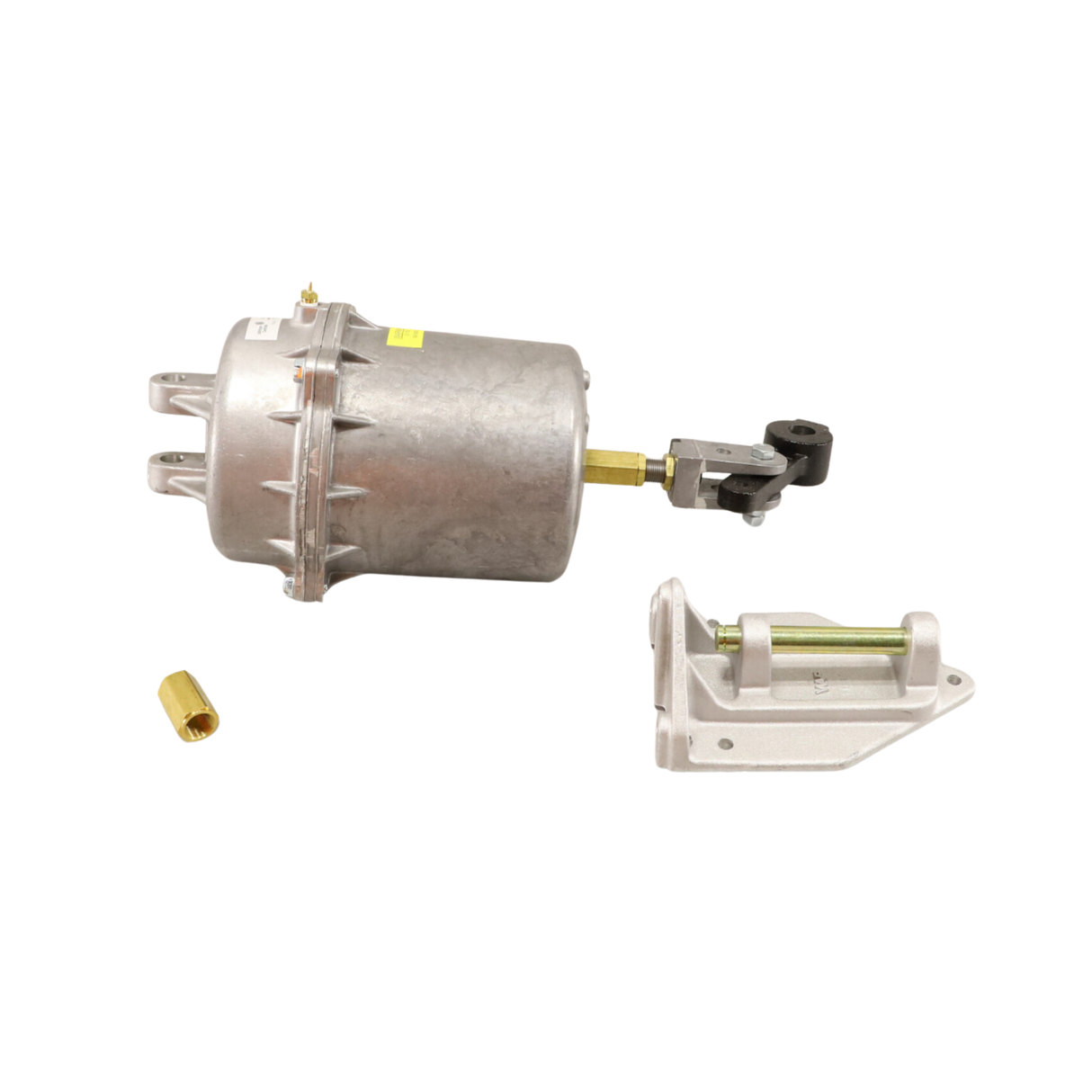

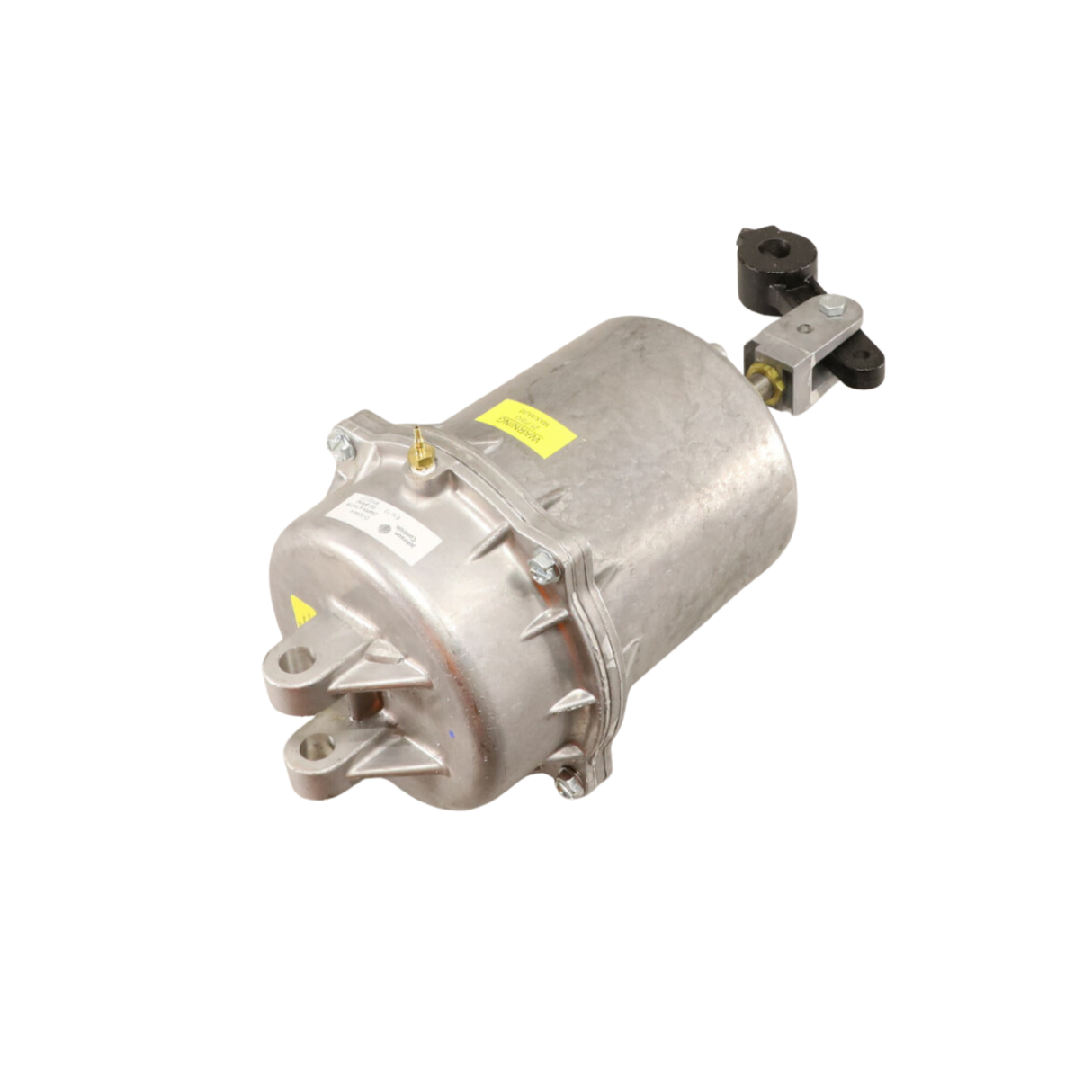

Johnson Controls D-3244-4 1/8" NPT Barbed Fitting, Die Cast Aluminum Body, Damper Actuator
Johnson Controls D-3244-4 1/8" NPT Barbed Fitting, Die Cast Aluminum Body, Damper Actuator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight.
Johnson Controls D-3244-4 1/8" NPT Barbed Fitting, Die Cast Al...
Description
Description
Specifications:
Manufacturer: Johnson Controls
Manufacturer Part Number: D-3244-4
Product Type: Damper Actuator
Material: Die Cast Aluminum Body
Mounting Type: Swivel with Bracket
Spring Range Pressure: 8PSI - 13PSI
Maximum Control Air Pressure: 25PSI
Barbed Fitting: 1/8" NPT
Maximum Air Consumption: 2 SCIM
Stroke: 4"
Diaphragm Size: 23.4"
Dimension: 16.7" x 12.25" x 10.05"
Weight: 16.96 lb
Note: Clevis and Crankarm
