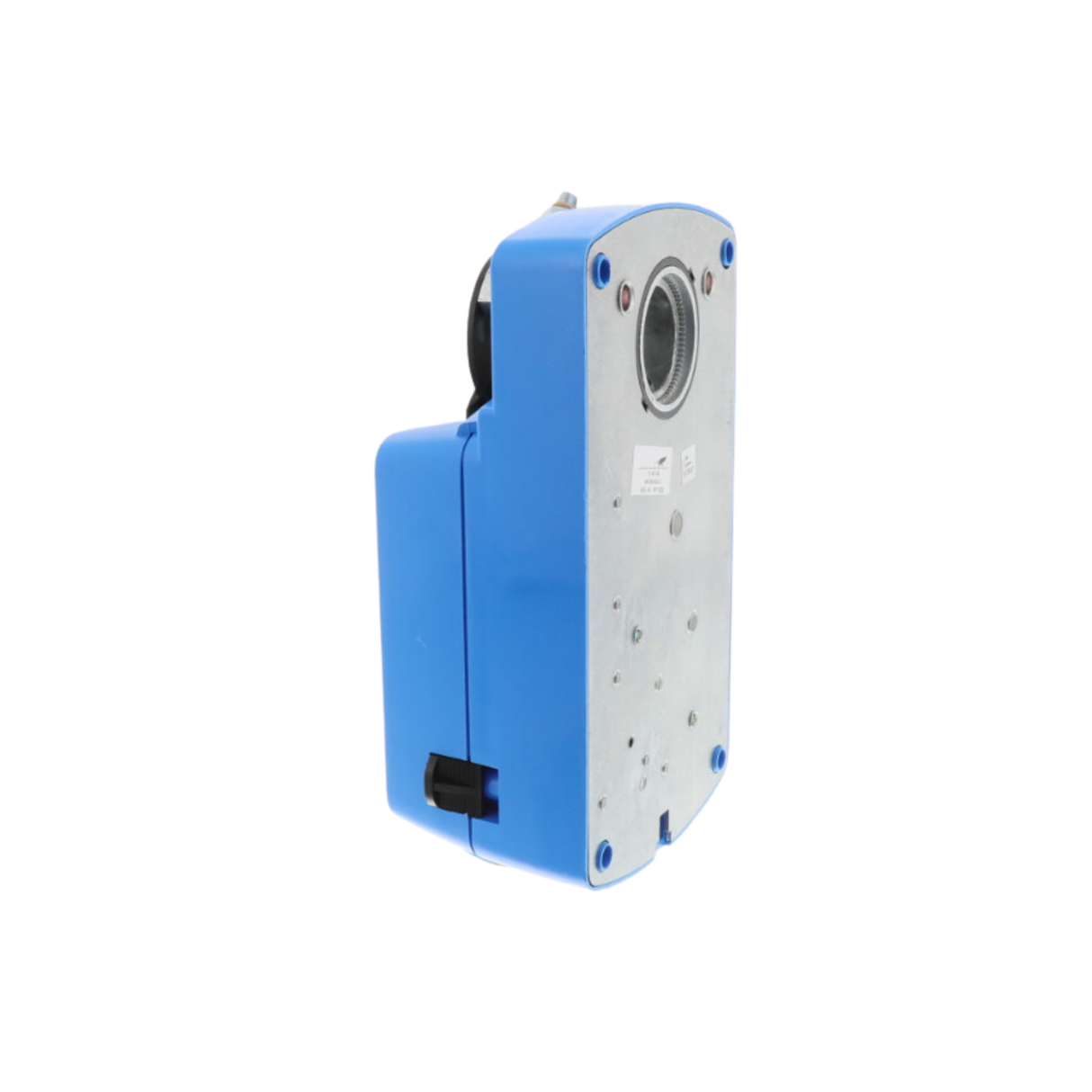

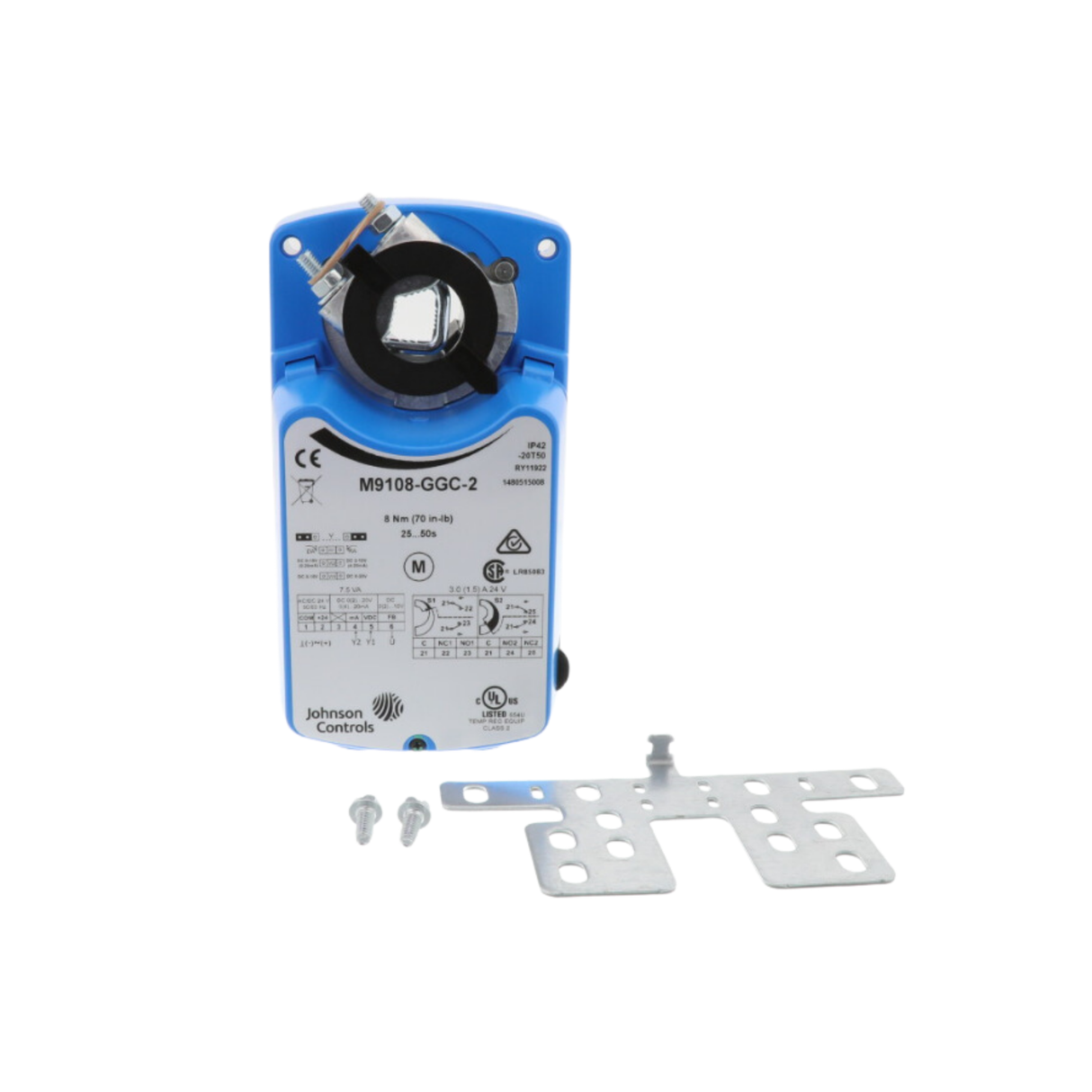

Johnson Controls M9108-GGC-2 24VAC, 24VDC Supply Voltage, Actuator with 2 SPDT Auxiliary Switches
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Johnson Controls M9108-GGC-2 24VAC, 24VDC Supply Voltage, Actuator ...
Specifications:
Manufacturer: Johnson Controls
Manufacturer Part Number: M9108-GGC-2
Product Type: Actuator
Type: Screw Terminals Non-Spring Return Direct Coupled
Supply Voltage: 24VAC, 24VDC
Switch Selectable: 0-10VDC, 2-10VDC, 4-20mA with 500 Ohm Resistor
Control Signal: Proportional
Torque: 70 Lb-In
Travel Time: 25-50 Second
Dimension: 5.05" x 8.3" x 4.55"
Weight: 3.05 lb
Includes: 2 SPDT Auxiliary Switches
