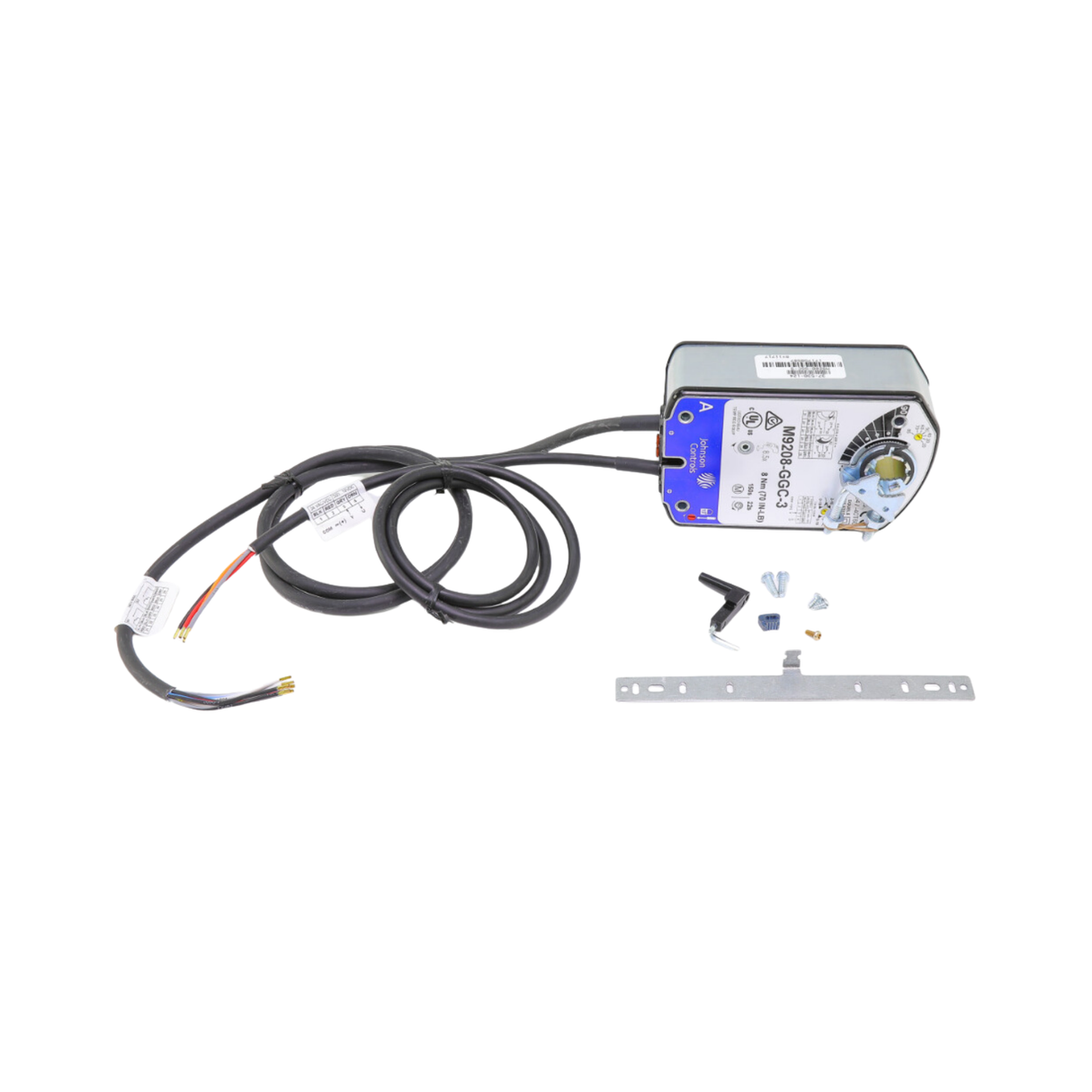

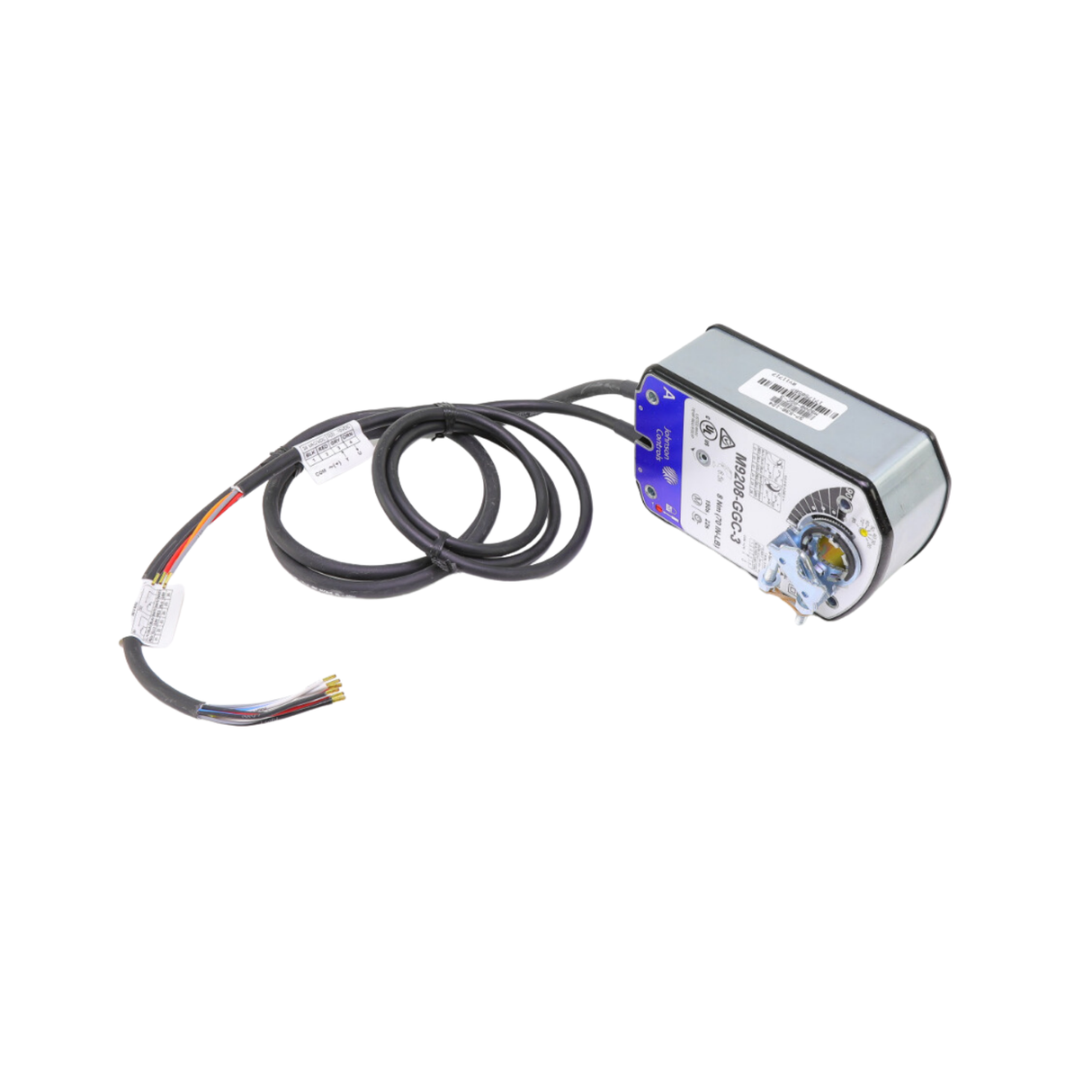

Johnson Controls M9208-GGC-3 24VAC, 24VDC Supply Voltage, Actuator with 48" Appliance Cable with Integral 3/8" FMC Connector and 2 SPDT Auxiliary Switches
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Specifications:
Manufacturer: Johnson Controls
Manufacturer Part Number: M9208-GGC-3
Product Type: Actuator
Type: Spring Return Direct Coupled
Supply Voltage: 24VAC, 24VDC
Control Signal: Proportional
Switch Selectable: 0-10VDC, 2-10VDC, 4-20mA with 500 Ohm Resistor
Torque: 70 Lb-In
Power On Run: 150 Second
Dimension: 6.35" x 8.35" x 4.5"
Weight: 4.21 lb
Includes: 48" Appliance Cable with Integral 3/8" FMC Connector and 2 SPDT Auxiliary Switches
