Johnson Controls  |  SKU: M9220-GGC-3

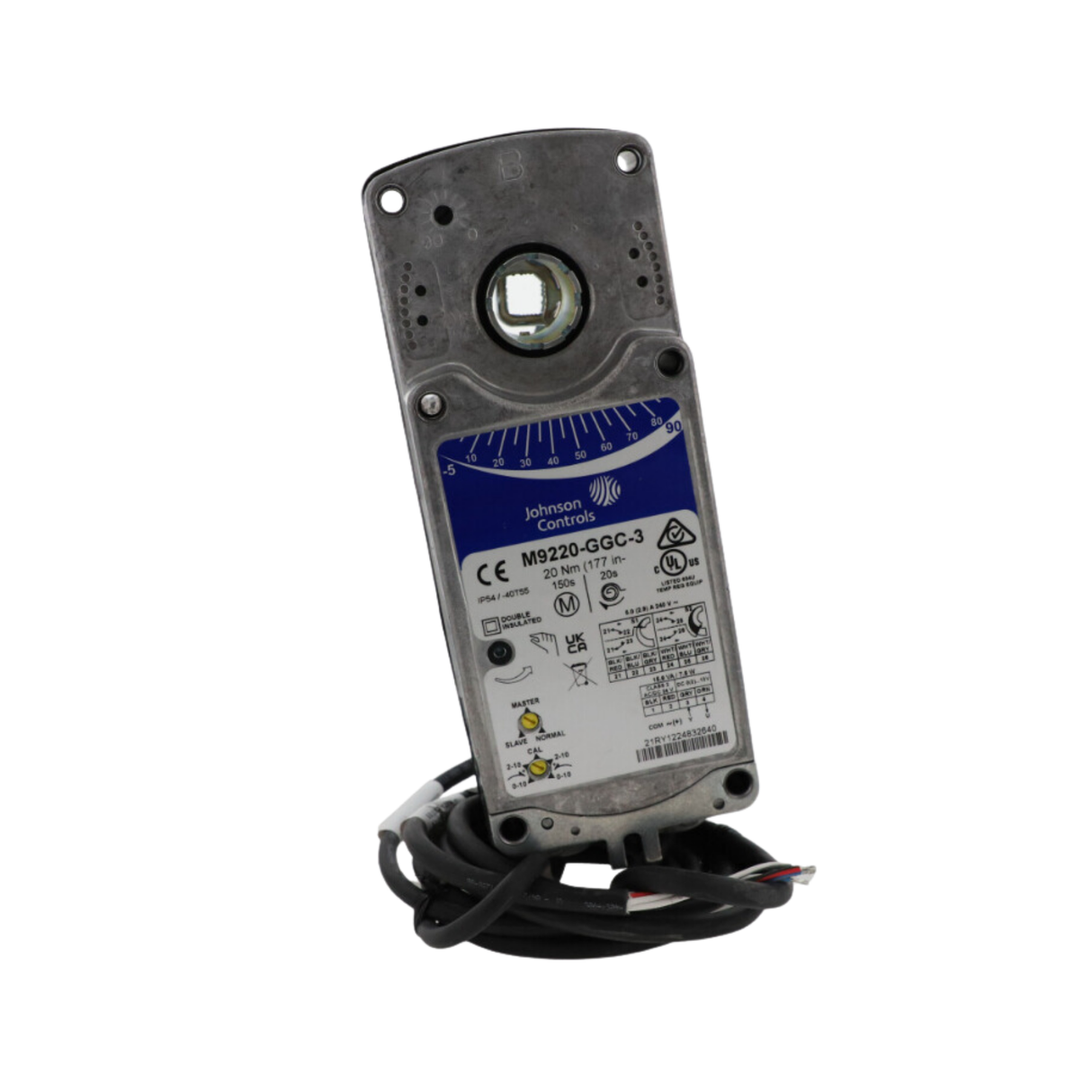

Johnson Controls M9220-GGC-3 24VAC, 24VDC Supply Voltage, Actuator with 48" Cable with Wire Leads and 2 SPDT Auxiliary Switches

$605.11

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Specifications:

Manufacturer: Johnson Controls
Manufacturer Part Number: M9220-GGC-3
Product Type: Actuator
Type: Spring Return Direct Coupled
Supply Voltage: 24VAC, 24VDC
Control Signal: Proportional
Switch Selectable: 0-10VDC, 2-10VDC, 4-20mA with 500 Ohm Resistor
Torque: 177 Lb-In
Power On Run: 150 Second
Dimension: 6.75" x 17" x 3.85"
Weight: 7.21 lb

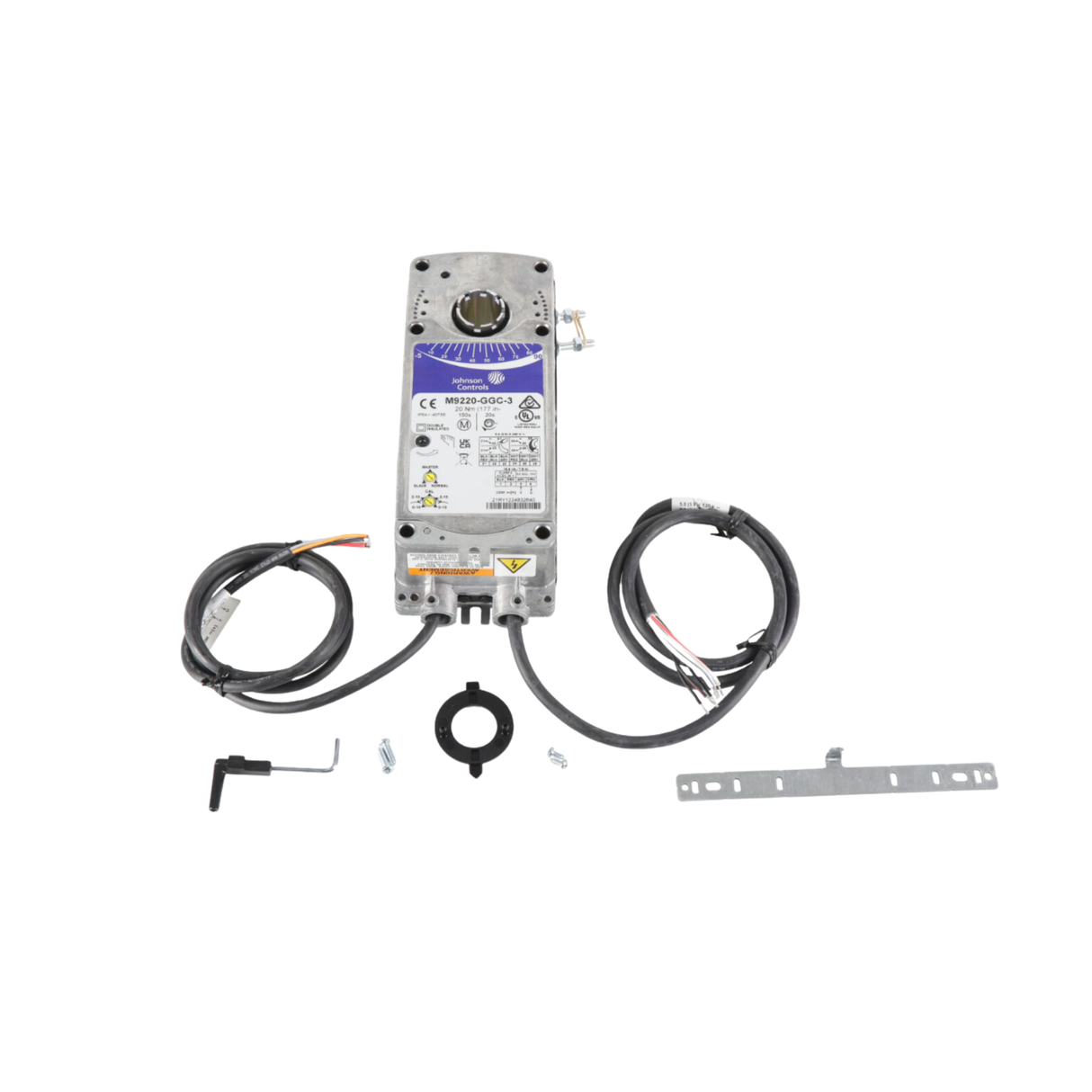

Includes: 48" Cable with Wire Leads and 2 SPDT Auxiliary Switches
