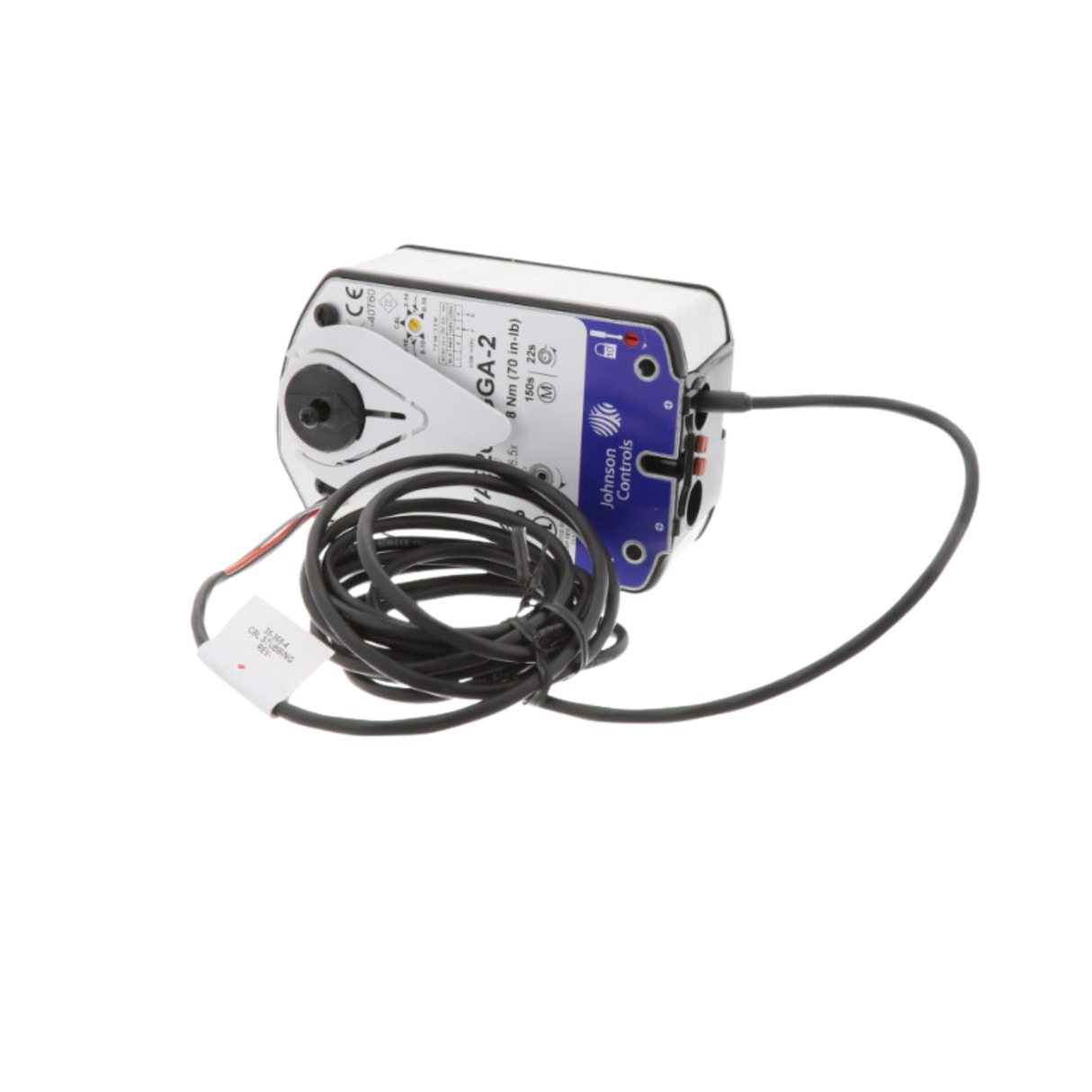

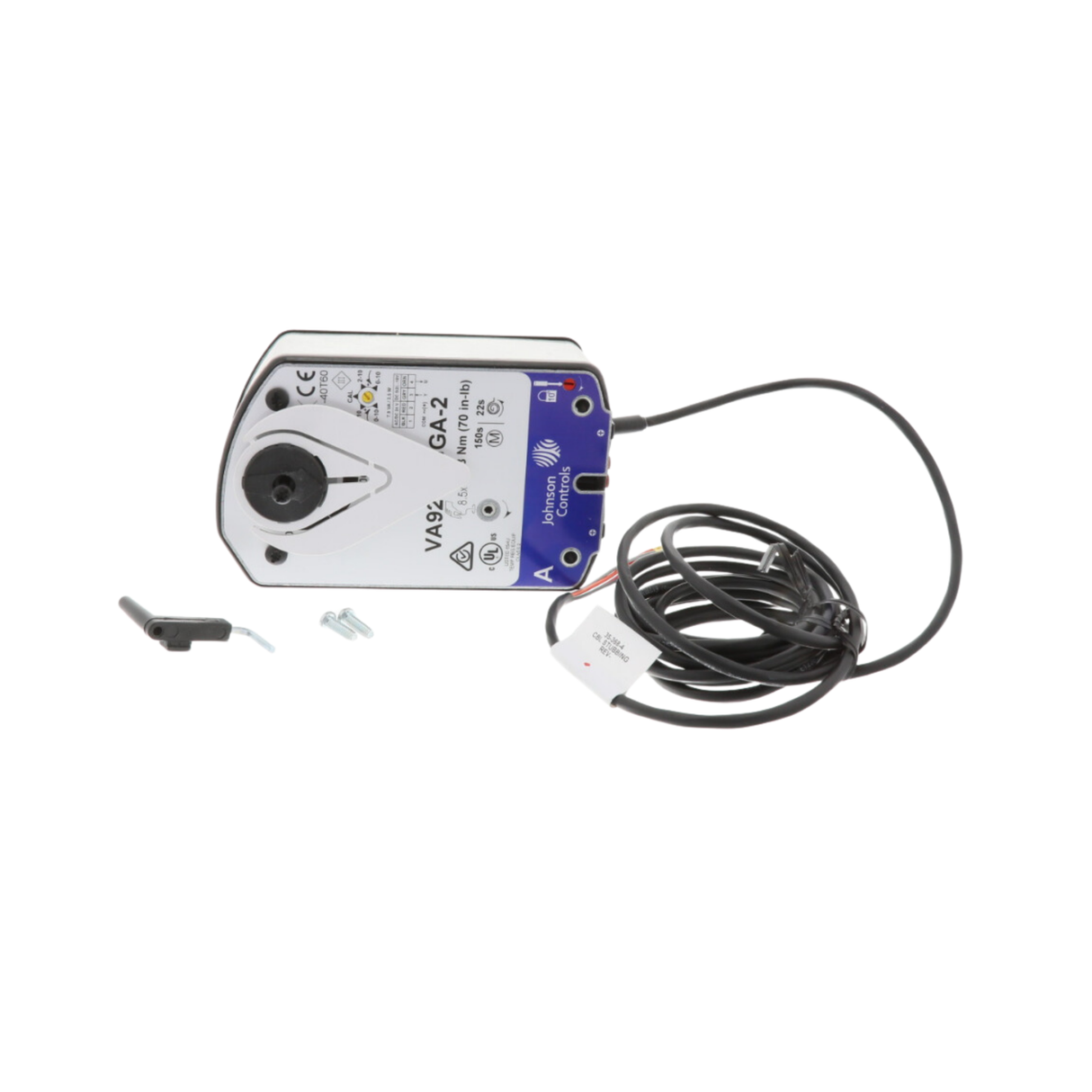

Johnson Controls VA9208-GGA-2 24VAC, 24VDC Supply Voltage, Integral 3/8" FMC Connector Spring Return, Direct, Coupled Ball Actuator with 120" Plenum Cable
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Johnson Controls VA9208-GGA-2 24VAC, 24VDC Supply Voltage, Integral...
Specifications:
Manufacturer: Johnson Controls
Manufacturer Part Number: VA9208-GGA-2
Product Type: Coupled Ball Actuator
Type: Direct
Supply Voltage: 24VAC, 24VDC
Proportional Switch Selectable: 0-10VDC, 2-10VDC, 4-20mA with 500 Ohm Resistor
Torque: 70 Lb-In
Power On Run: 150 Second
Dimension: 8.35" x 6.35" x 4.55"
Weight: 3.62 lb
Includes: 120" Plenum Cable
