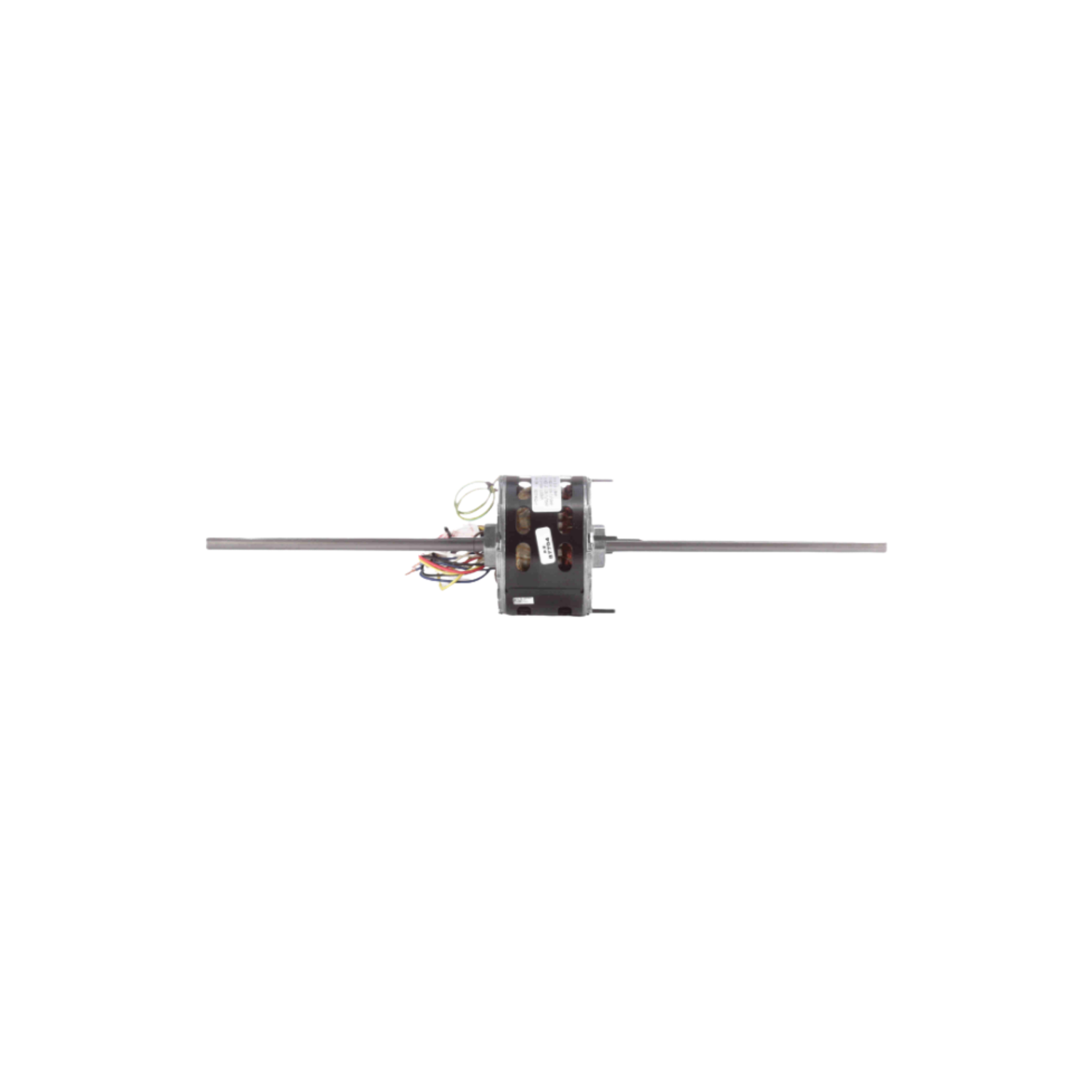

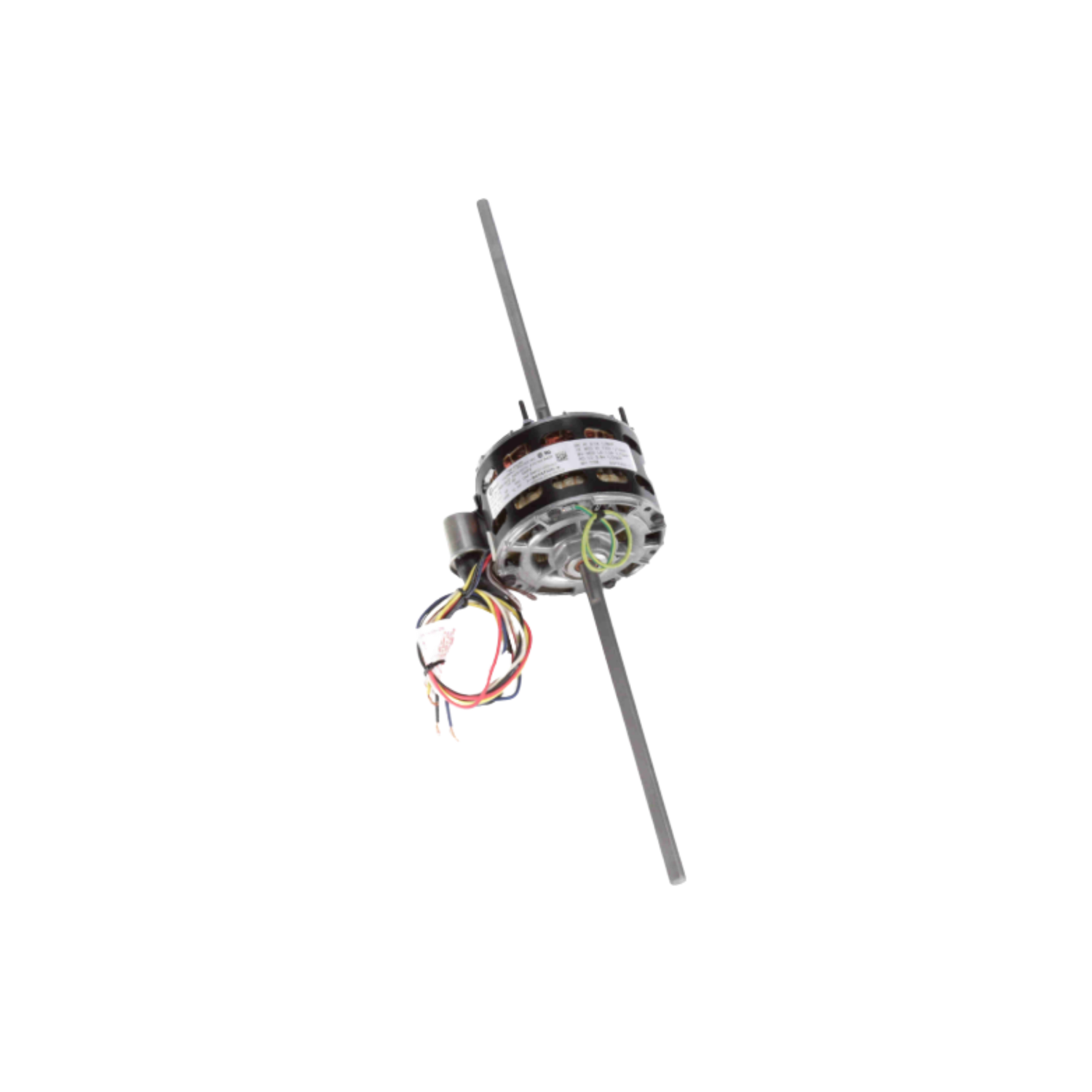

Regal Rexnord - Century Motors 9408 115 V 60 Hz 1550 RPM 1/8, 1/10, 1/15, 1/20 HP Clockwise Motor

Features:

Fan Coil - Dual Wheel Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Double Shaft with Flat
31" Leads
Extended Studs Opposite Lead End, Resilient Ring Mounting

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: 9408
Product Type: Motor
Voltage Rating: 115 V
Frequency Rating: 60 Hz
Current Rating: 2.1 A
Motor Size: 1/8, 1/10, 1/15, 1/20 HP
Frame Size: 42
RPM: 1550
No. of Phase: 1
No. of Pole: 4
No. of Speed: 4
Enclosure: Open Air Over
Mounting: Extended Studs
Rotation: Clockwise
Dimensions: 25.88" x 8.81" x 8.81"
Weight: 11.0 lb.
