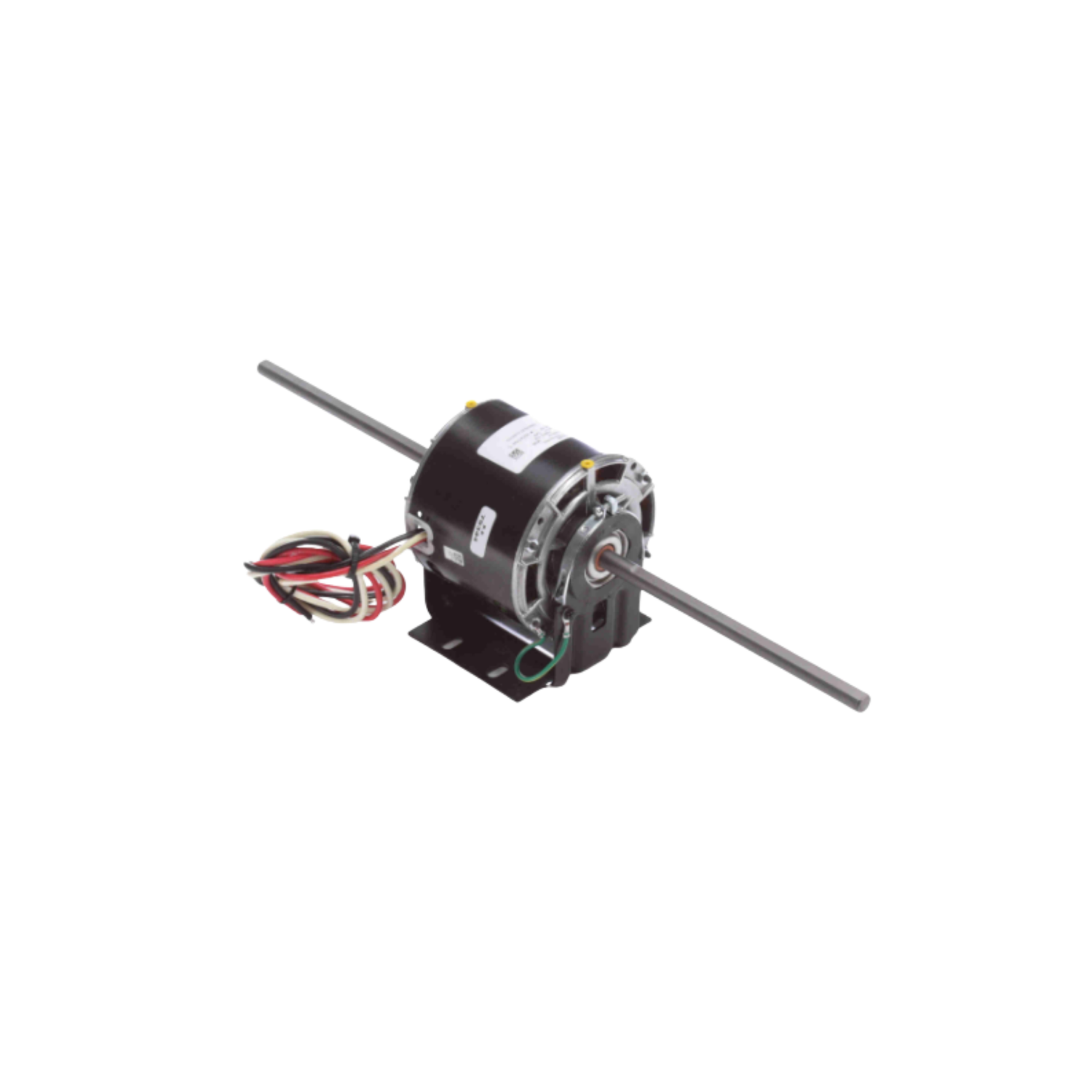

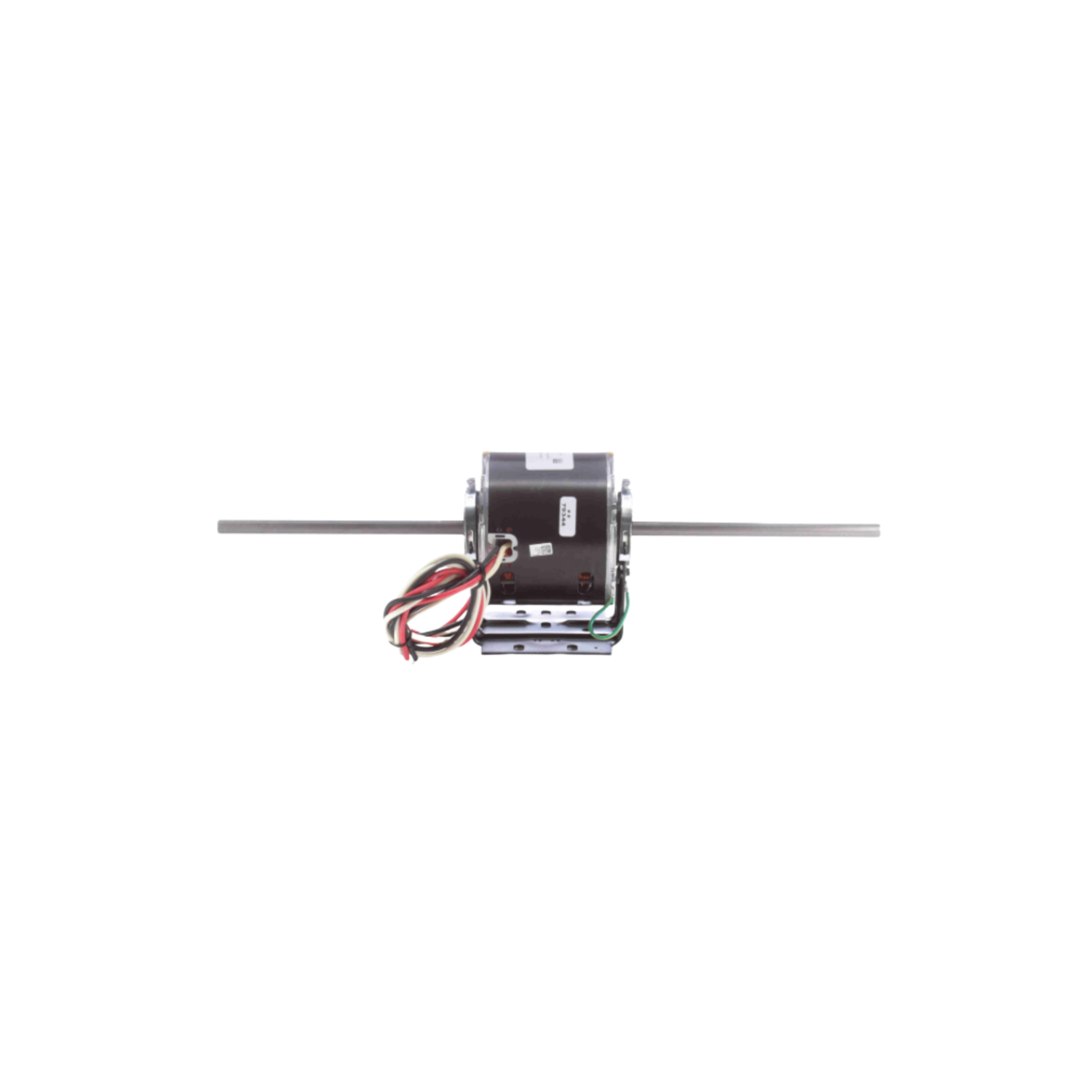

Regal Rexnord - Century Motors 9636 115 V 60 Hz 1050 RPM 1/6 HP Counter Clockwise
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Features:
Fan Coil - Dual Wheel Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Double Shaft with Flat
31" Leads
Extended Studs Opposite Lead End, Resilient Ring Mounting
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: 9636
Product Type: Motor
Voltage Rating: 115 V
Frequency Rating: 60 Hz
Current Rating: 5.8 A
Motor Size: 1/6 HP
Frame Size: 42Y
RPM: 1050
No. of Phase: 1
No. of Pole: 2
No. of Speed: 6
Enclosure: Semi Enclosed
Mounting: Resilient Base
Rotation: Counter Clockwise
Dimensions: 22.87" x 6.81" x 6.81"
Weight: 13.0 lb.
