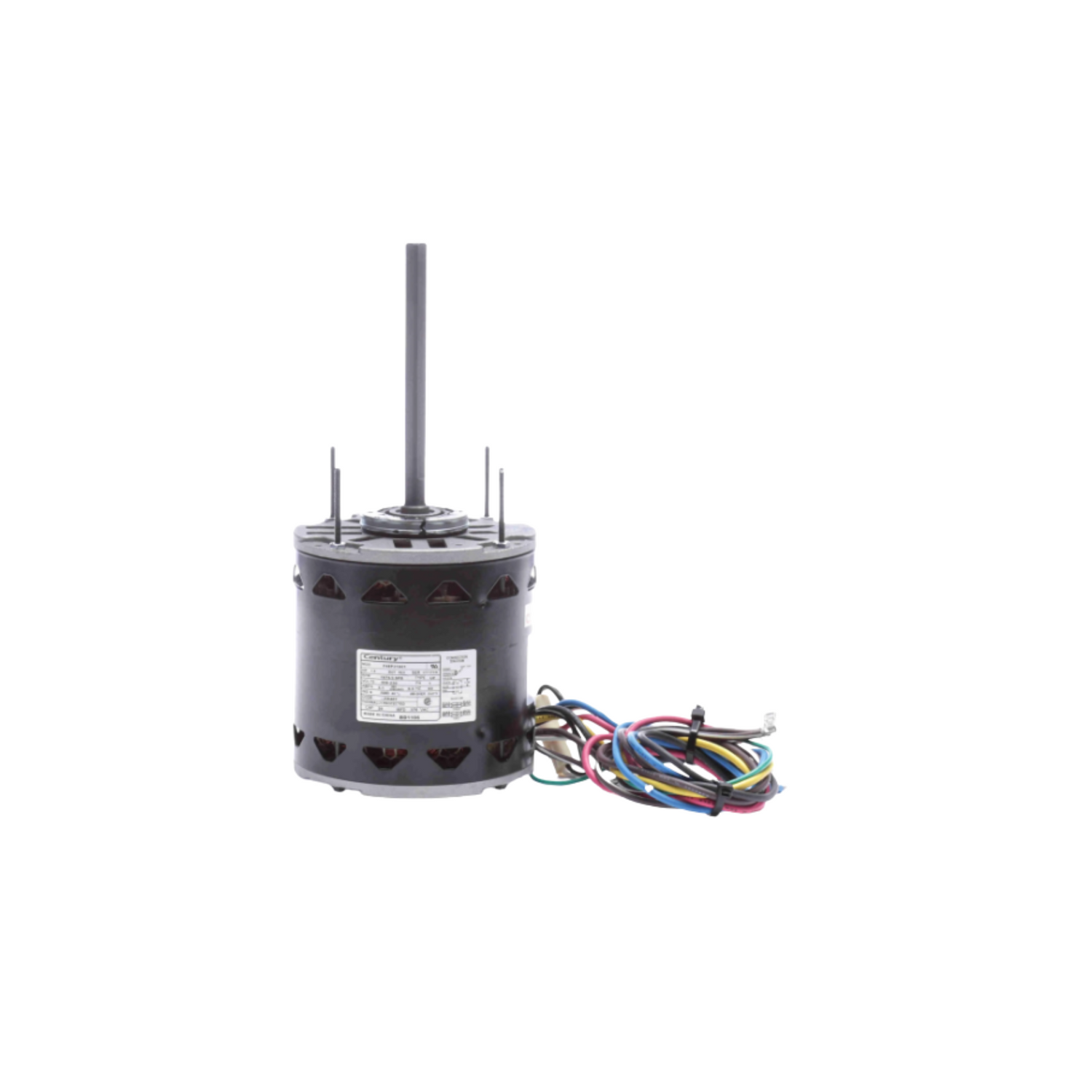

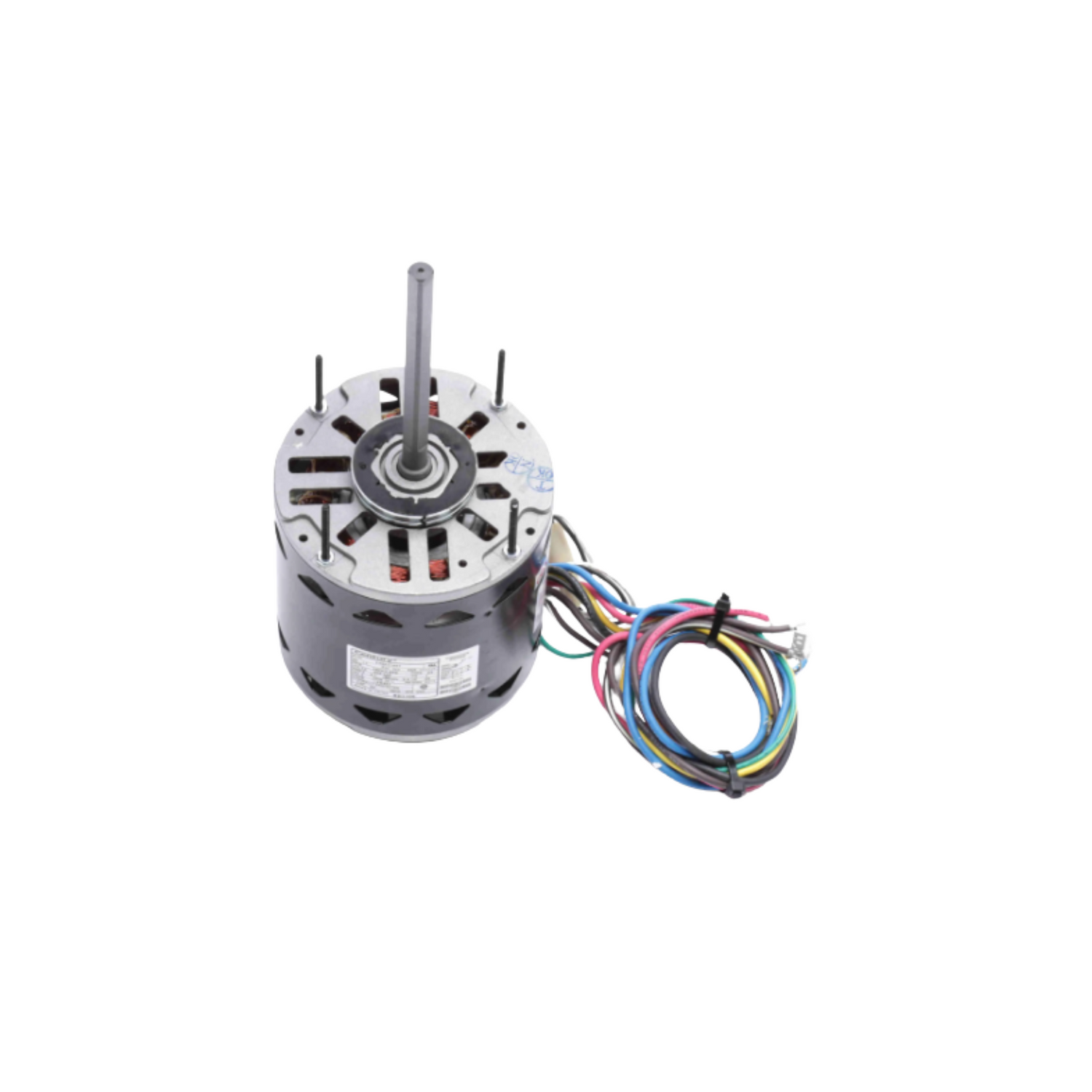

Regal Rexnord - Century Motors BD1106 208-230 V 60 Hz 1075 RPM 1 HP Reversible Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Regal Rexnord - Century Motors BD1106 208-230 V 60 Hz 1075 RPM 1 HP...
Features:
Direct Drive Fan & Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
27" Leads
Extended Studs Shaft End, Resilient Ring Mounting
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: BD1106
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 4.8 A
Motor Size: 1 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 3
Enclosure: Open Enclosed
Mounting: Resilient Ring/Extended Studs
Rotation: Reversible
Dimensions: 15.55" x 6.45" x 6.81"
Weight: 20.0 lb.
