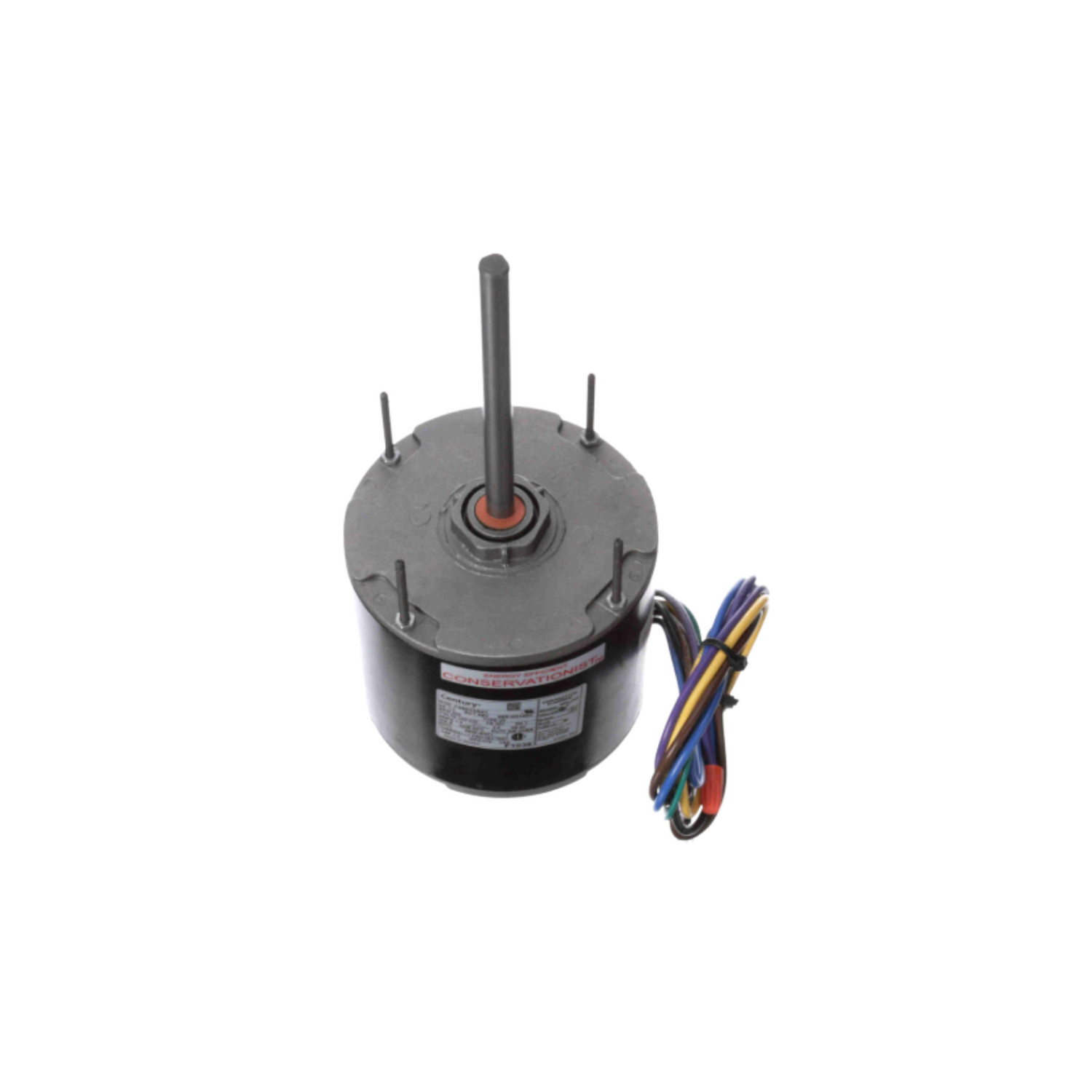

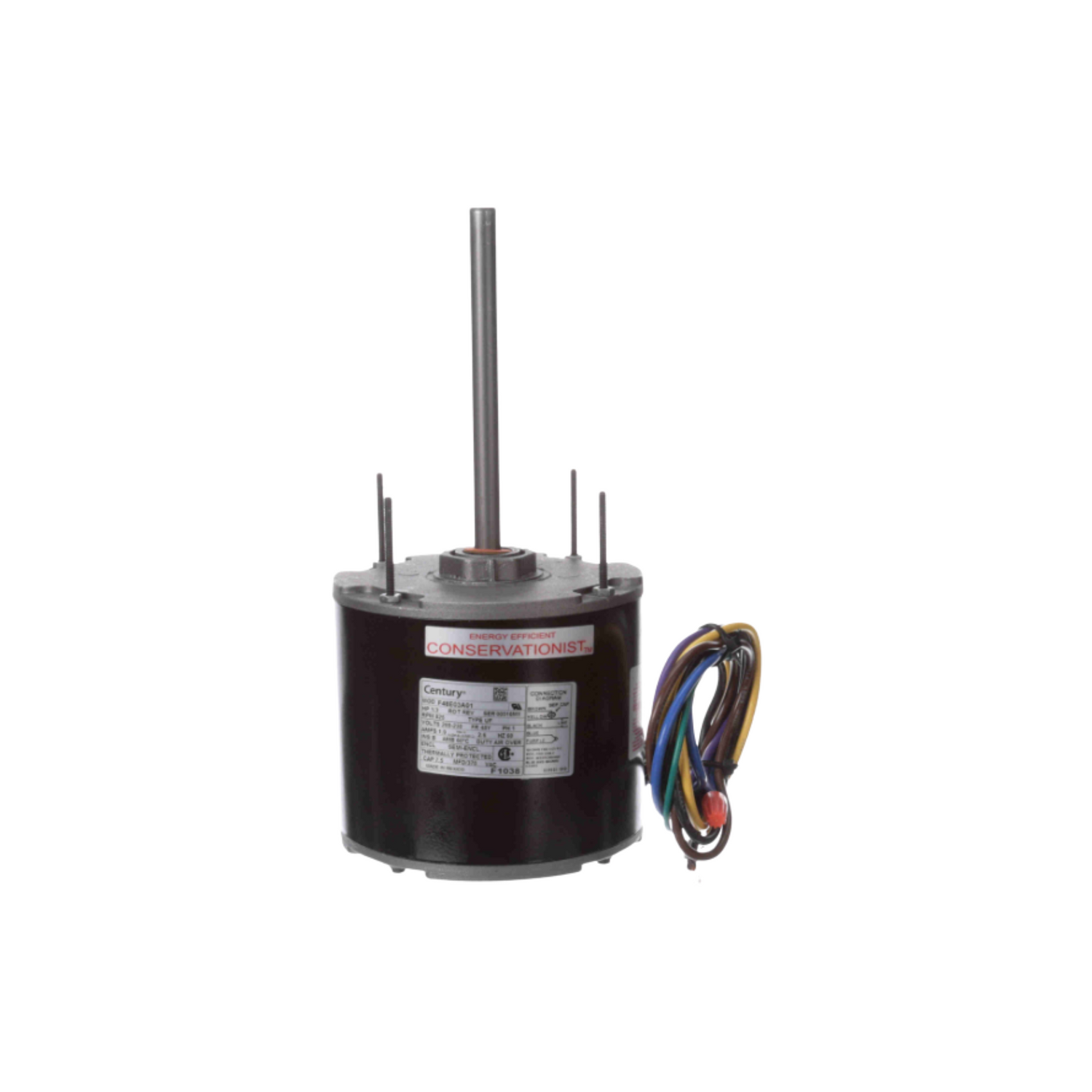

Regal Rexnord - Century Motors F1036 208-230 V 60 Hz 1075 RPM 1/3 HP Reversible Motor

Features:

Condenser Fan - Heat Pump - Refrigeration Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Enclosed, Except Open Lead End End-Frame Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
27" Leads
Extended Studs Shaft End, Hex Mounting Hub on Both Ends for Resilient Base Mounting (Resilient Rings Not Included), Belly Band Mount (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: F1036
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 1.7 A
Motor Size: 1/3 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 2
Enclosure: Semi Enclosed
Mounting: Extended Studs
Rotation: Reversible
Dimensions: 15.18" x 7.31" x 7.37"
Weight: 15.0 lb.
