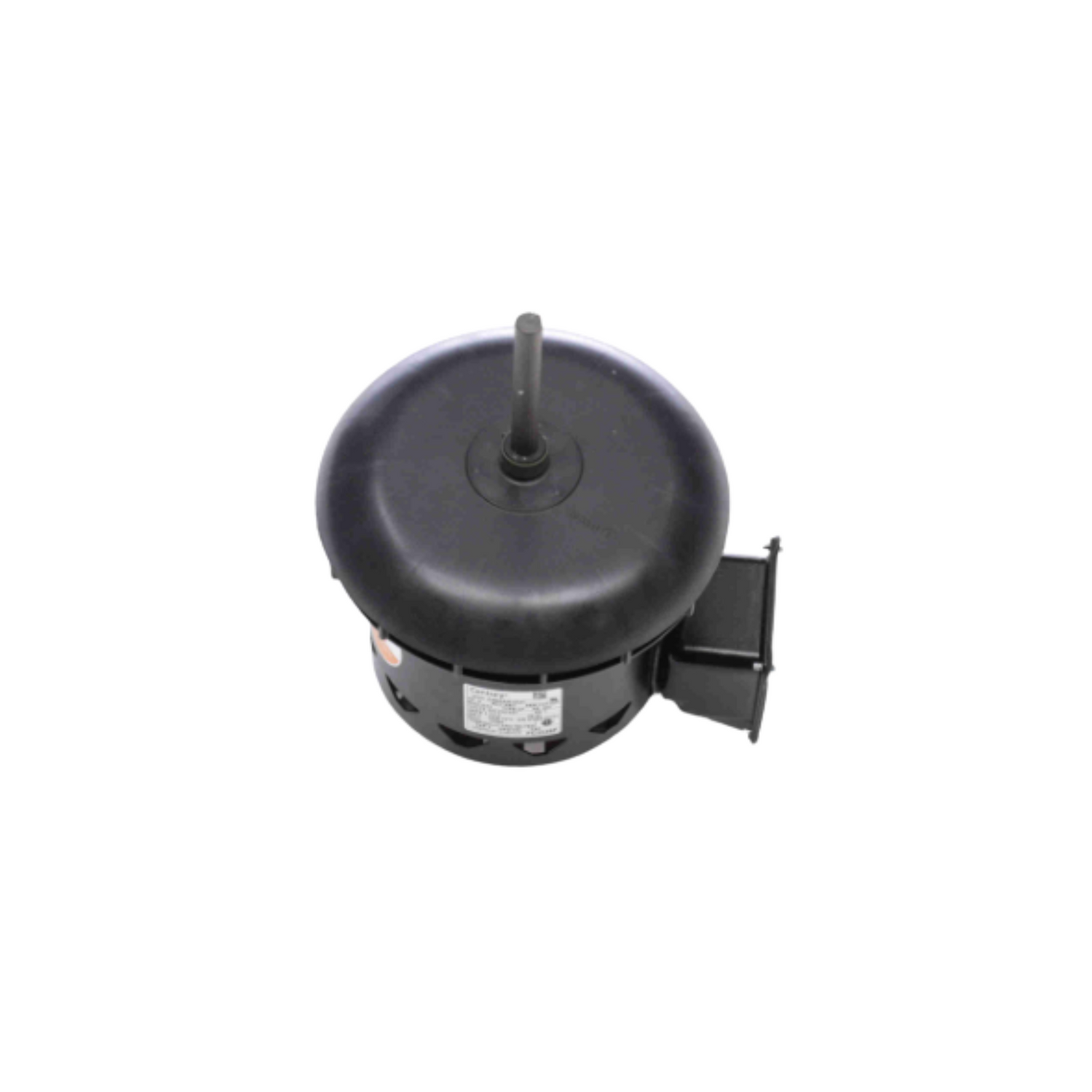

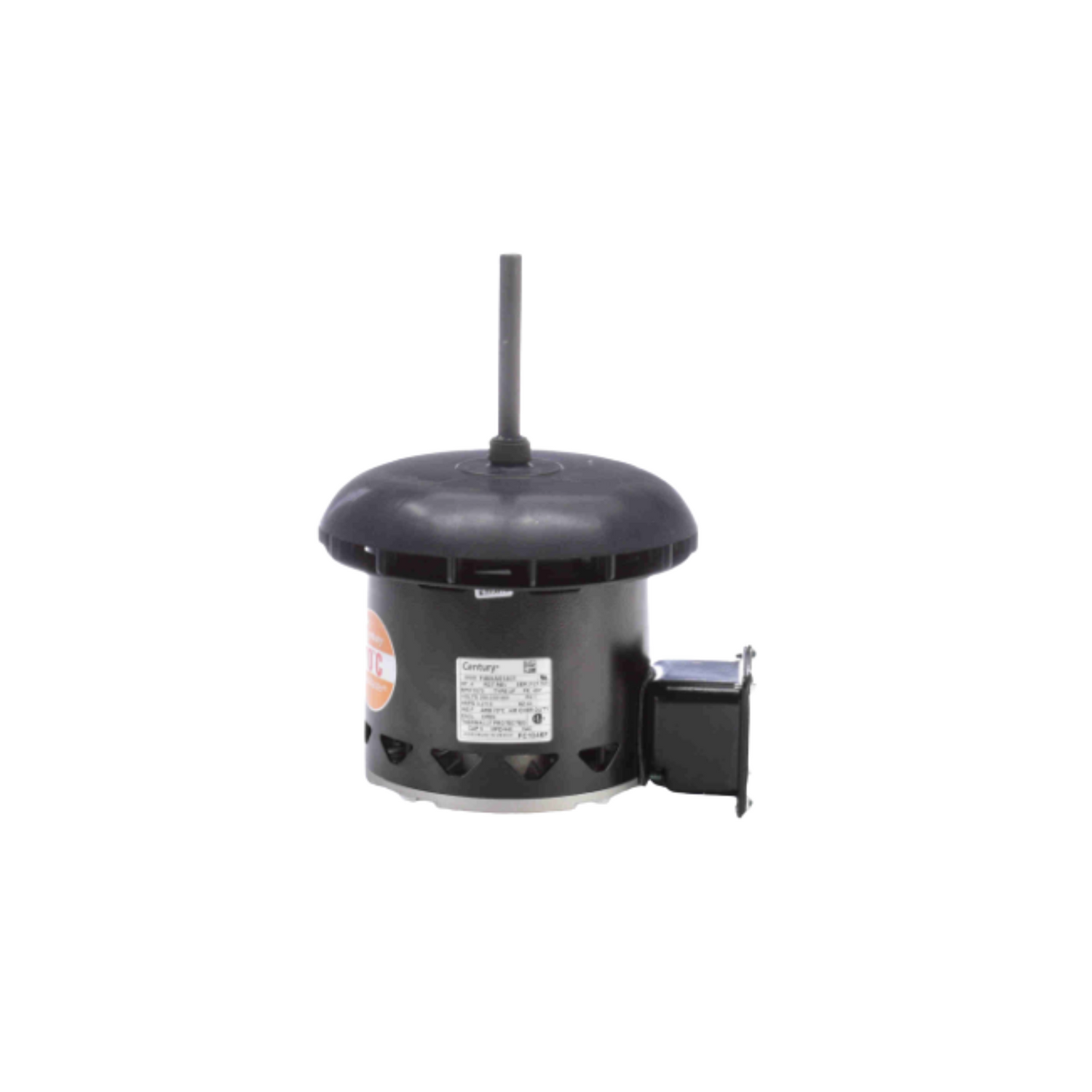

Regal Rexnord - Century Motors FC1046F 200-230/460 V 60 Hz 1075 RPM 0.4 HP Reversible Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Features:
HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat, Supplied with 5/8" adapter and Key
Conduit Box
Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: FC1046F
Product Type: Motor
Voltage Rating: 200-230/460 V
Frequency Rating: 60 Hz
Current Rating: 3.2/1.6 A
Motor Size: 0.4 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 1
Enclosure: Open Enclosed
Mounting: Round Belly Band
Rotation: Reversible
Dimensions: 10.5" x 9.0" x 15.0"
Weight: 15.0 lb.
