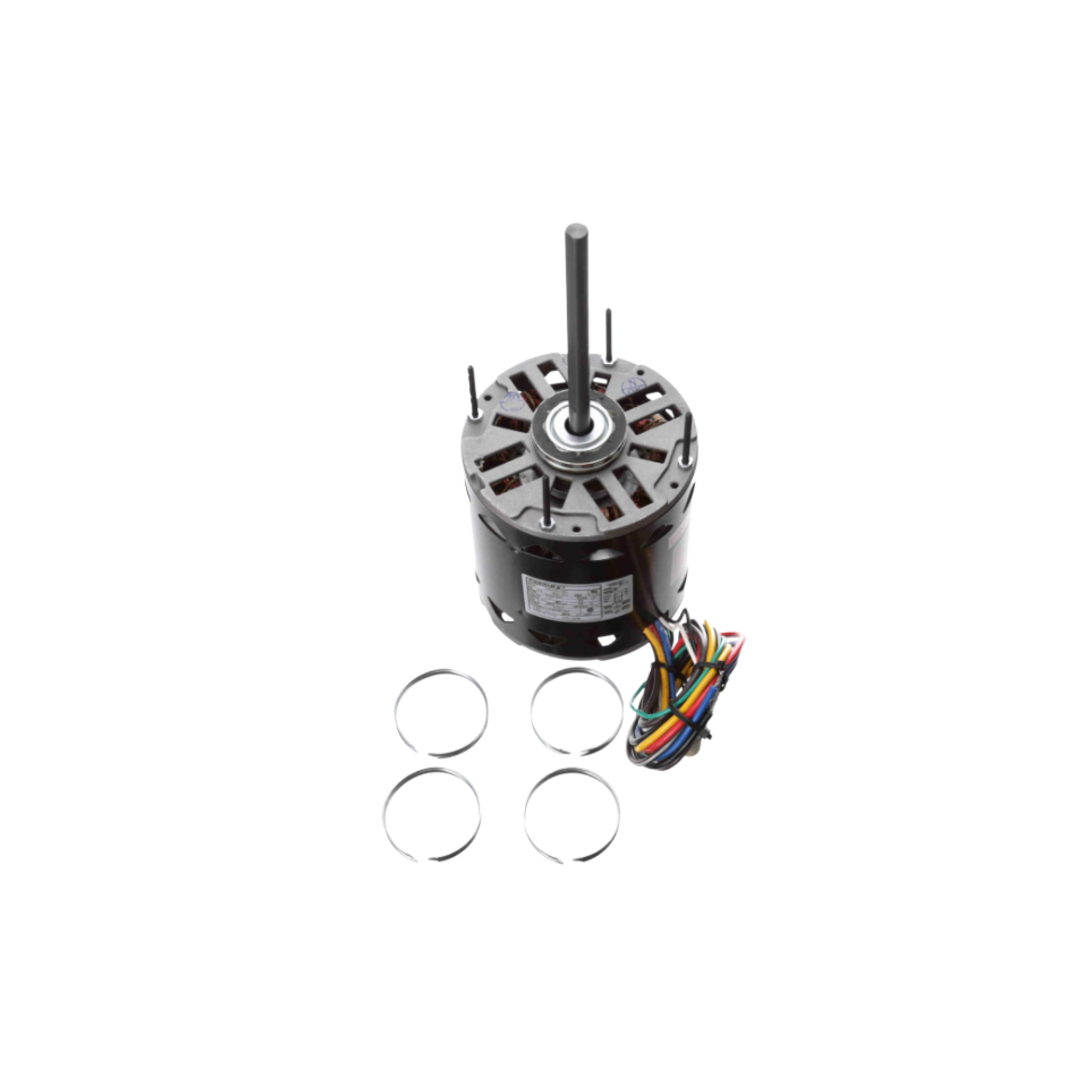

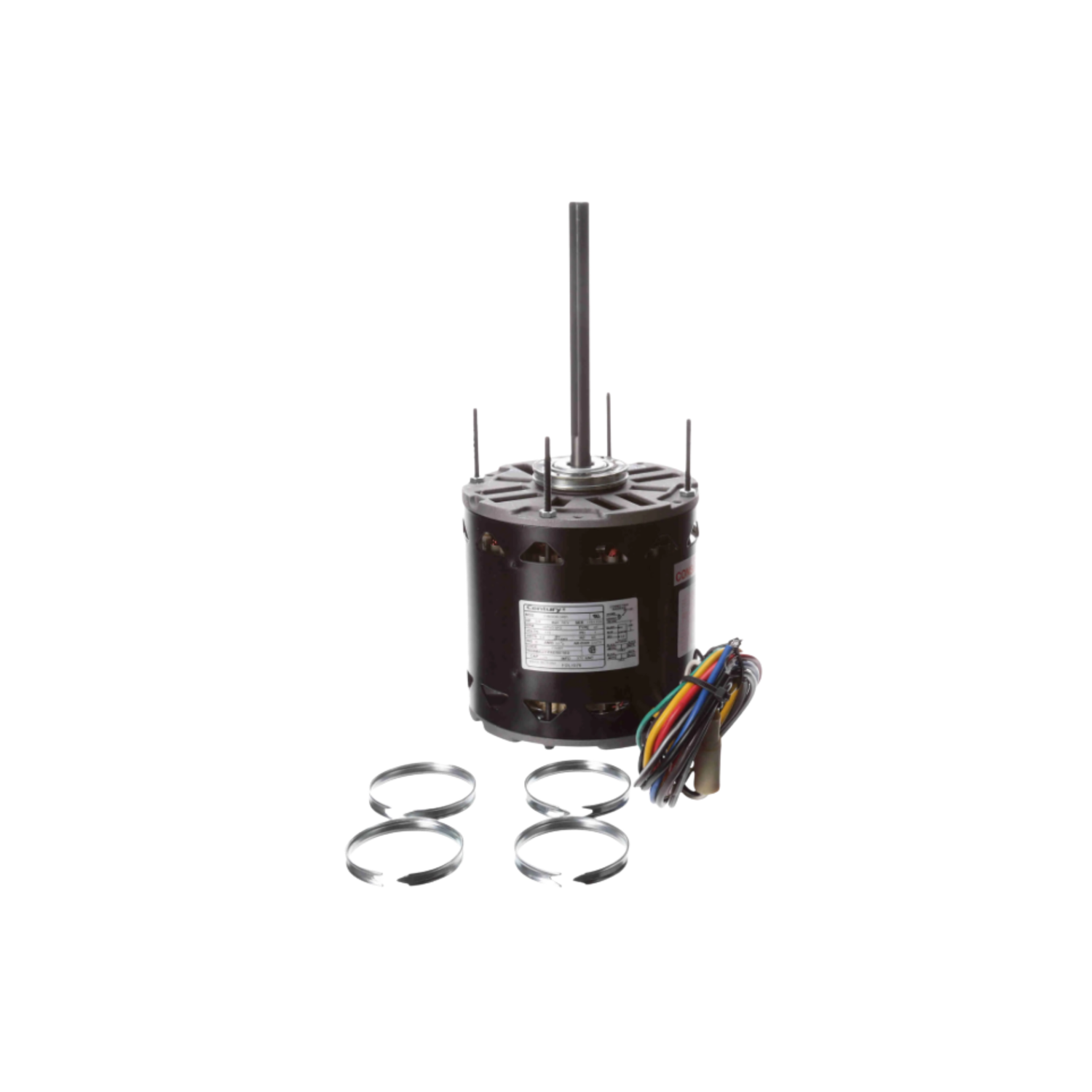

Regal Rexnord - Century Motors FDL1076 115 V 60 Hz 1075 RPM 3/4 HP Reversible Motor

Features:

Direct Drive Fan & Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2" Diameter Shaft with Flat
26" Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)

Specifications:

Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: FDL1076
Product Type: Motor
Voltage Rating: 115 V
Frequency Rating: 60 Hz
Current Rating: 9.8 A
Motor Size: 3/4 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 3
Enclosure: Open Enclosed
Mounting: Resilient Rings
Rotation: Reversible
Dimensions: 15.55" x 6.45" x 6.81"
Weight: 19.0 lb.
