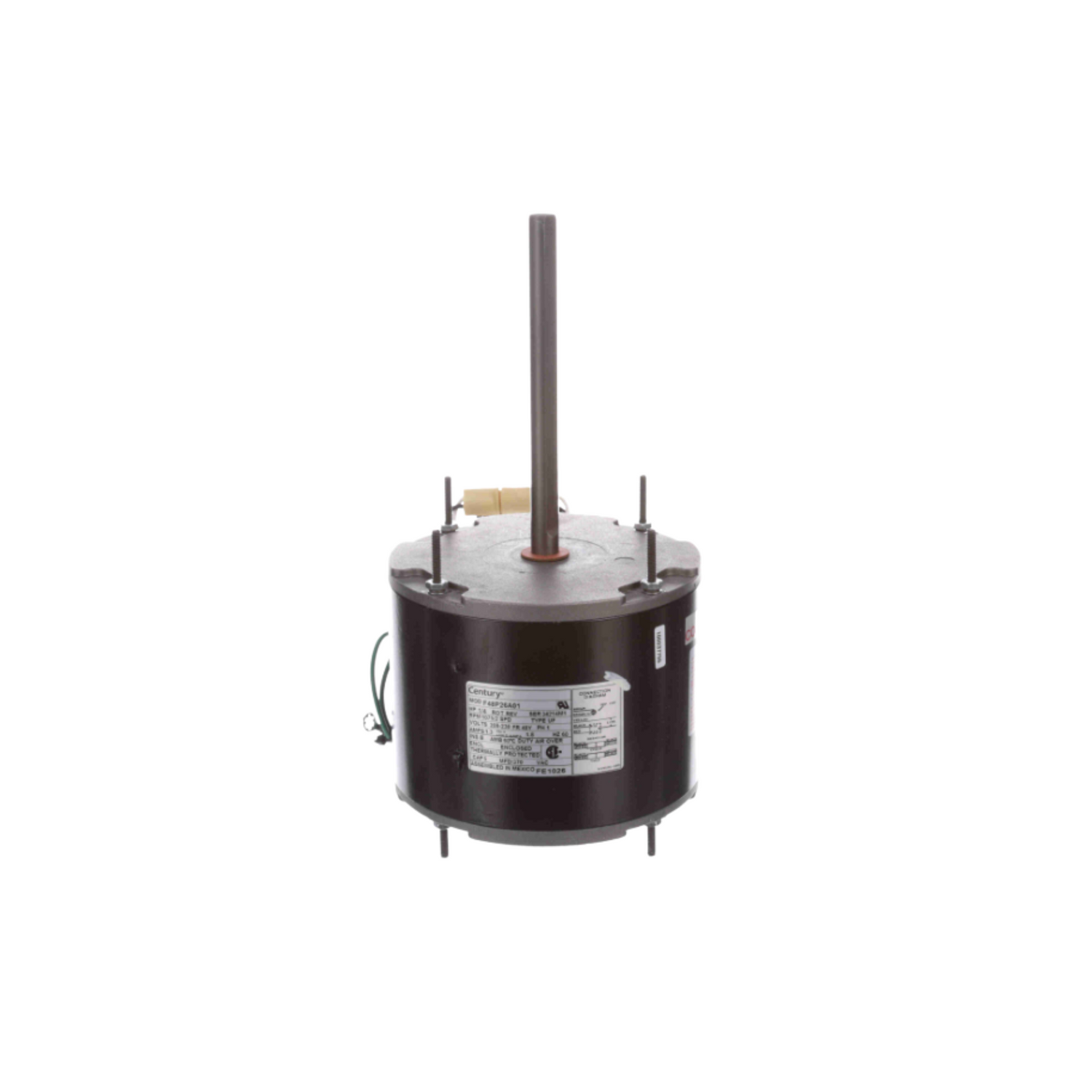

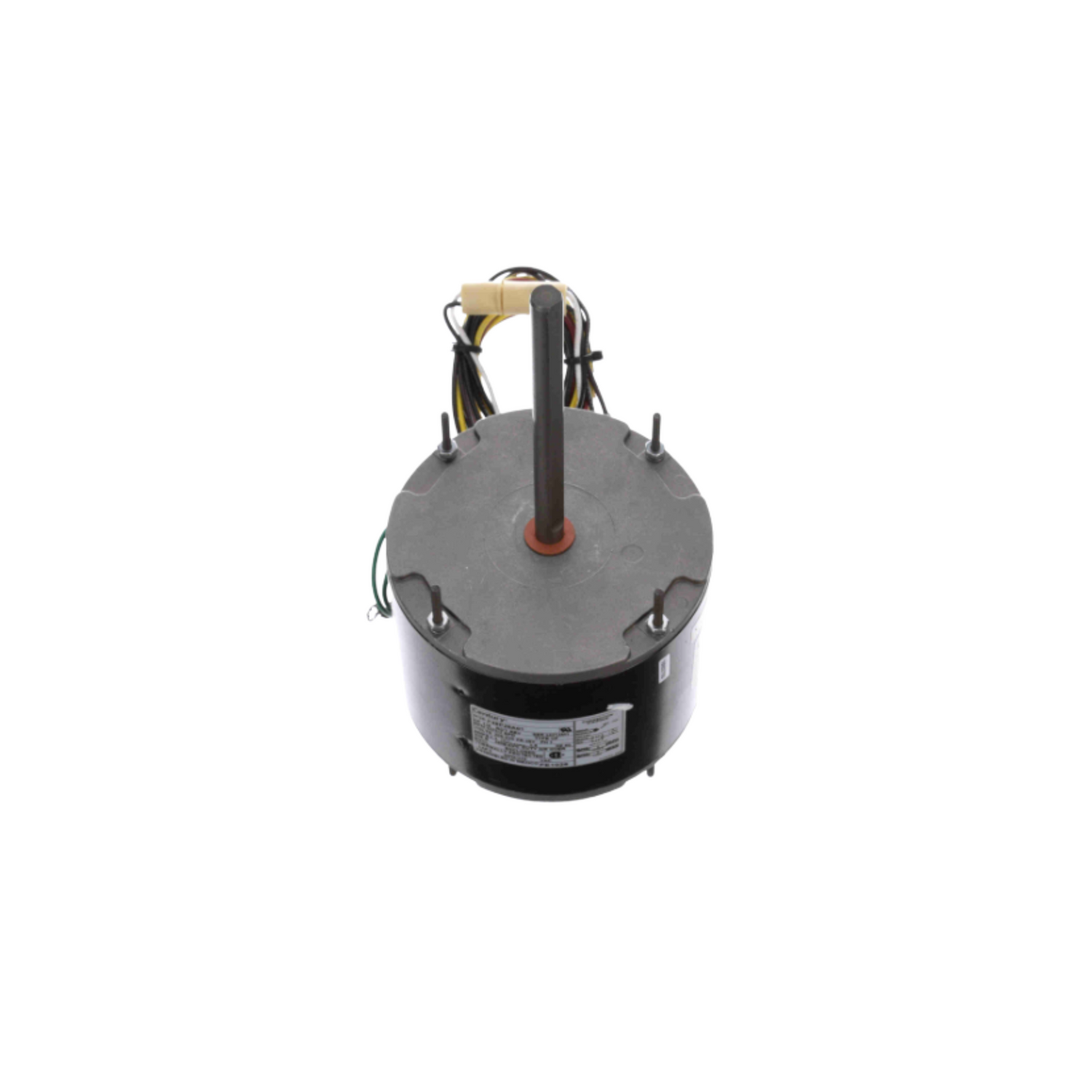

Regal Rexnord - Century Motors FE1026 208-230 V 60 Hz 1075 RPM 1/4 HP Reversible Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Regal Rexnord - Century Motors FE1026 208-230 V 60 Hz 1075 RPM 1/4 ...
Features:
Condenser Fan - Heat Pump - Refrigeration Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
27" Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: FE1026
Product Type: Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 1.3 A
Motor Size: 1/4 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 2
Enclosure: Totally Enclosed Air Over
Mounting: Extended Studs
Rotation: Reversible
Dimensions: 13.18" x 7.25" x 7.37"
Weight: 13.0 lb.
