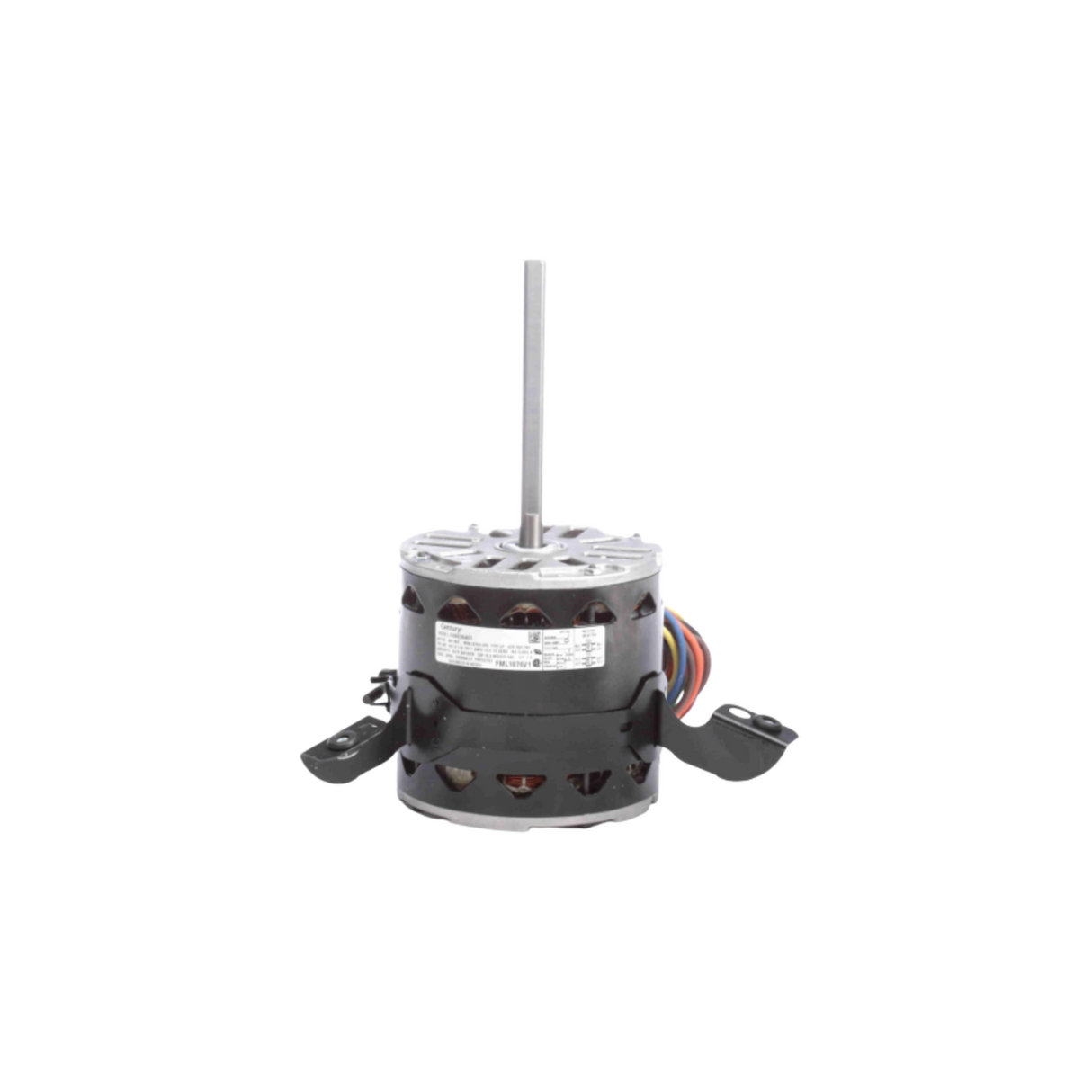

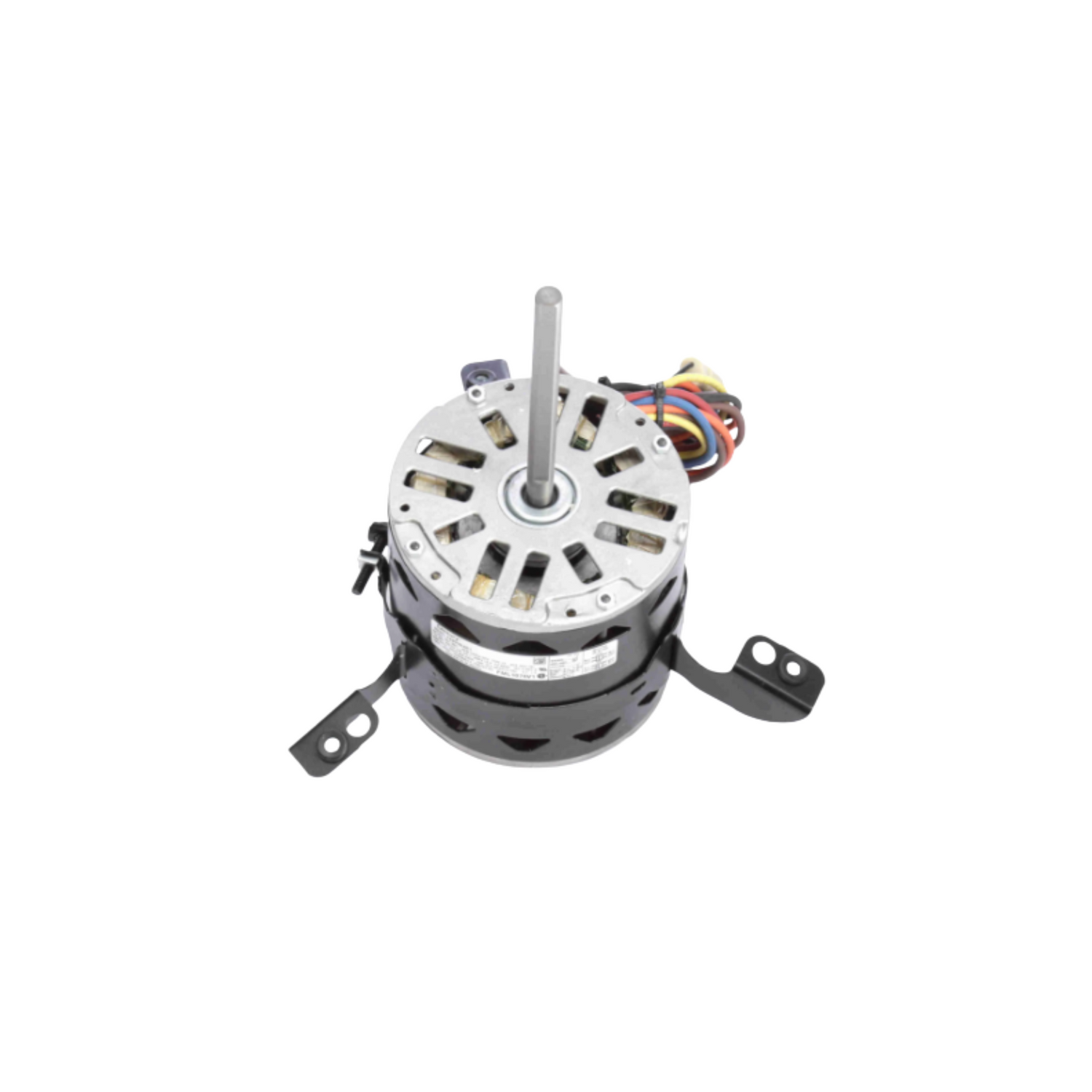

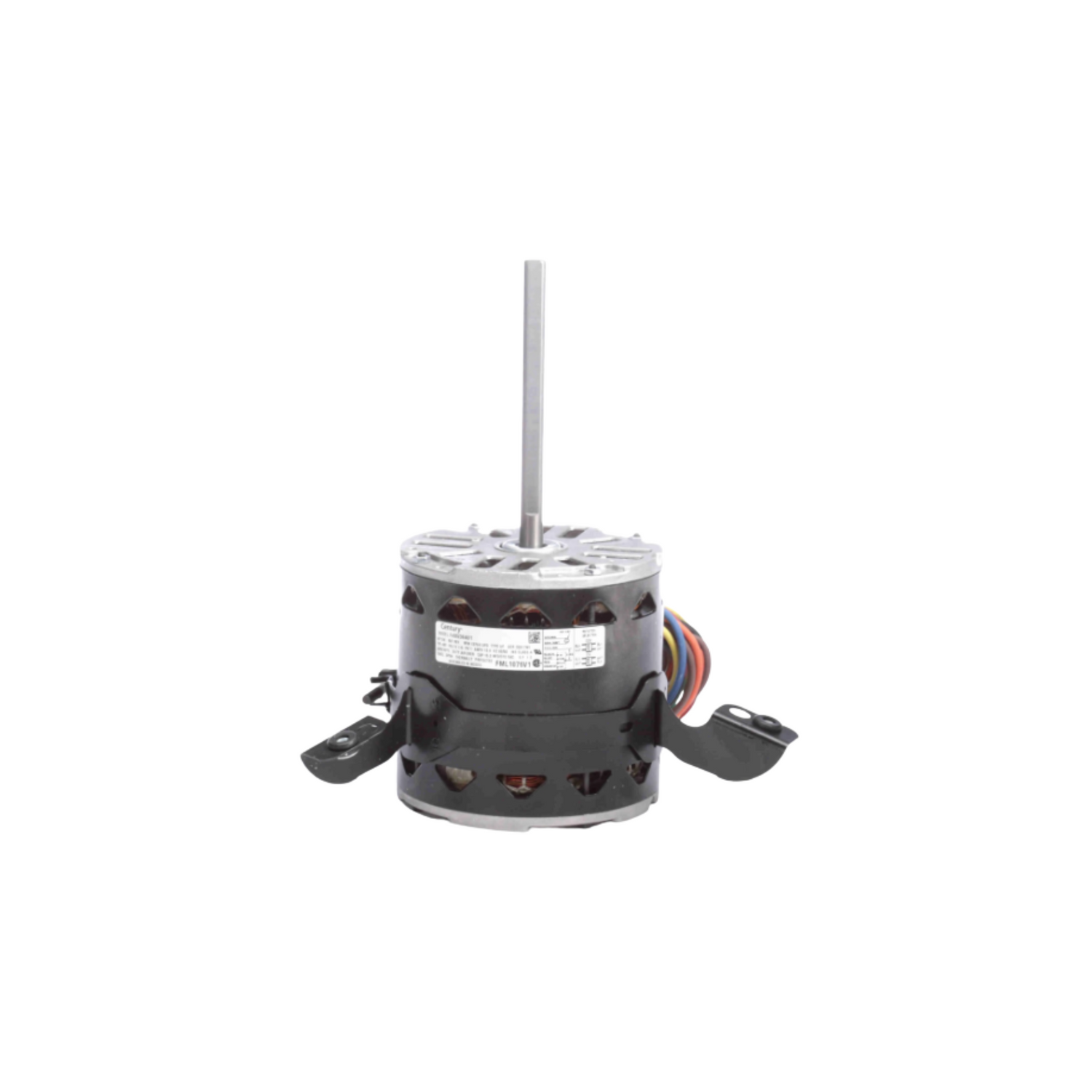

Regal Rexnord - Century Motors FML1076V1 115 V 60/50 Hz 1075 RPM 3/4 HP Reversible Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Pickup currently unavailable at Snook & Aderton, Inc
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Most parts ship same day and arrive within two days.
Regal Rexnord - Century Motors FML1076V1 115 V 60/50 Hz 1075 RPM 3/...
Features:
Fan Coil - Room Air Conditioner - Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class A Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2" Diameter Shaft with Flat
26" Leads
Flex Mount
Specifications:
Manufacturer: Regal Rexnord - Century Motors
Manufacturer Part Number: FML1076V1
Product Type: Motor
Voltage Rating: 115 V
Frequency Rating: 60/50 Hz
Current Rating: 10.9 A
Motor Size: 3/4 HP
Frame Size: 48Y
RPM: 1075
No. of Phase: 1
No. of Pole: 6
No. of Speed: 4
Enclosure: Open Enclosed
Mounting: Flexible Arms
Rotation: Reversible
Dimensions: 12.87" x 12.81" x 12.81"
Weight: 20.0 lb.
